TPE2 D 50-80-N A F A BQQE 0.37kW Single Stage Twin Head Variable Speed In Line 240v

Name: TPE2 D 50-80-N A F A BQQE 0.37kW Single Stage Twin Head Variable Speed In Line 240v
Brand: Grundfos
SKU: 98438567
Price: 4033 GBP
Availability: InStock

SKU

98438567

MRRP £6,952.00 + VAT Our price £4,033.00 (+ VAT) Incl. VAT: £4,839.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Flange Set Option

Choose Bellow Set Option

Choose Gasket Set Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos TPE2 D 50-80-N A F A BQQE Single Stage Twin Head Variable Speed In-Line Pump 240V 1Ph 50/60Hz, 0.37kW Motor and flanged pump connections.

Single-stage, twin head, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.

neck rings and impeller made of composite
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal.
RP 50mm flanged Outlet
Optional union sets available, see accessories below for options.

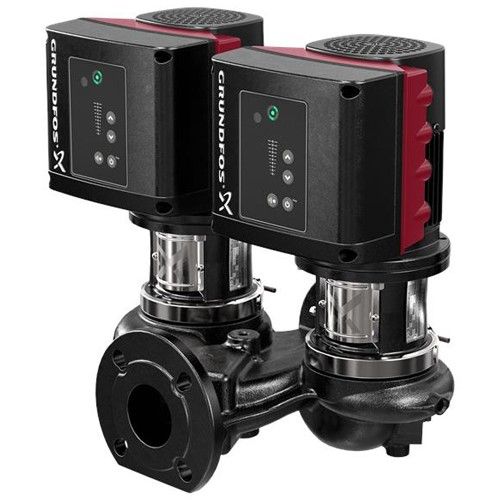

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU	98438567
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5711495019716
Weight	63.2 Kg

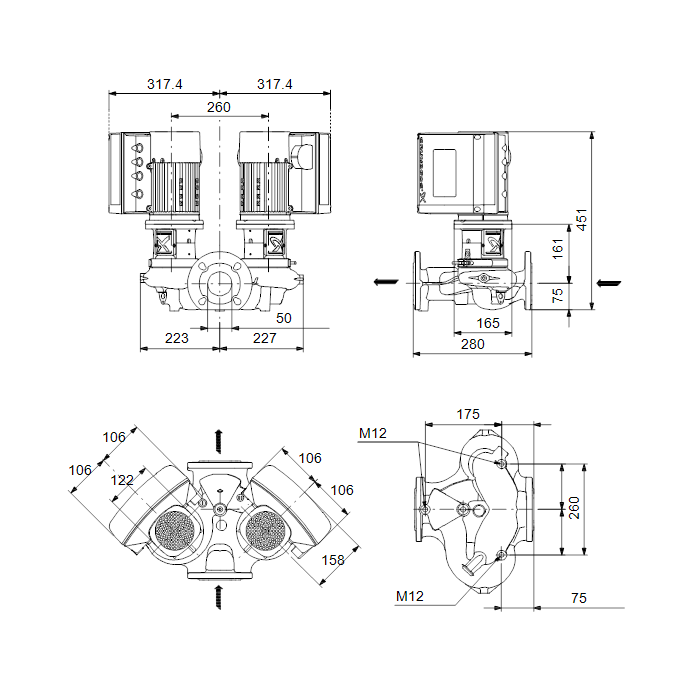

Dimensions	451mm (h) x 450mm (w) x 280mm (d)
Connection Type	50mm Flanged
Motor Size	0.37 kW
Full Load Current (FLC)	2.40-2.10 A
Voltage	240V 1Ph 50Hz
RPM	3000rpm
Max Flow	28m3/hr
Max Head	8m
Max Temperature	120 degrees C
Material	Cast Iron
Impeller Material	Composite
