Unions, Valves and Flange Sets

All good plumbing solutions require a diverse flange kit with valves and flanges to fit a large number of configurations in any property. Flange kits contain a number of components for repairing any damage to flange faces such as corrosion or the isolation of different metals as a result of corrosion. They are specified to work at particular temperature and pressure ranges and for steel, alloy or other metal substrates. Most kits consist of a number of flange parts, washers, bolts and “O” rings.

These components should be able to seal a system carrying potable water, seawater, and waste water as well as fuels, air, cooling or heating mediums, open drains and even mud or cement mortar. flange isolation kit is a good solution that guarantees the safe flow of fluids through a pipeline system and is a cheaper solution than an isolation joint or other unions, as well as requiring little maintenance. This is the most commonly used method of controlling any losses in pipe work that may have been caused by corrosion. The kit usually consists of different types of gaskets. Some extend over the whole of the damaged flange’s external diameter. This way it can protect the flange from the ingress of any contaminating materials. Other gasket types fit inside the flange and centre inside a bolt circle.

The gasket materials can be made of synthetics such as neoprene and other phenolics or a stainless steel core that is covered with an epoxy laminate that itself is glass reinforced. This type of gasket is suitable for a highly corrosive environment such as one with a high concentration of carbon dioxide or hydrogen sulphide gases. Neoprene phenolic gaskets will operate in a temperature range of between -40 and +100 degrees C. Most flange isolation kits should not be used in temperatures higher than 120 degrees C.

Products 1-20 of 59

per page
Page

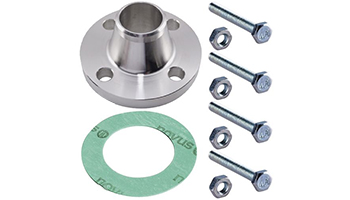

250mm & 300mm Weld Neck Flange Set for NB(E),(K),(KE)250 Pumps (2 Sets Inc)
SKU: ANC250X300W
MRRP £509.00 + VAT Our price £306.00 (+ VAT) Incl. VAT: £367.20
More info
200mm & 250mm Weld Neck Flange Set for NB(E),(K),(KE)200 Pumps (2 Sets Inc)
SKU: ANC200X250W
MRRP £480.00 + VAT Our price £288.00 (+ VAT) Incl. VAT: £345.60
More info
150mm & 200mm Weld Neck Flange Set for NB(E),(K),(KE)150 Pumps (2 Sets Inc)
SKU: ANC150X200W
MRRP £451.00 + VAT Our price £271.00 (+ VAT) Incl. VAT: £325.20
More info
125mm & 150mm Weld Neck Flange Set for NB(E),(K),(KE)125 Pumps (2 Sets Inc)
SKU: ANC125X150W
MRRP £422.00 + VAT Our price £254.00 (+ VAT) Incl. VAT: £304.80
More info
100mm & 125mm Weld Neck Flange Set for NB(E),(K),(KE)100 Pumps (2 Sets Inc)
SKU: ANC100X125W
MRRP £271.00 + VAT Our price £163.00 (+ VAT) Incl. VAT: £195.60
More info
80mm & 100mm Weld Neck Flange Set for NB(E),(K),(KE)80 Pumps (2 Sets Inc)
SKU: ANC80X100W
MRRP £138.00 + VAT Our price £83.00 (+ VAT) Incl. VAT: £99.60
More info

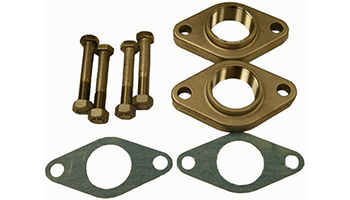

80mm & 100mm Threaded Flange Set for NB(E),(K),(KE)80 Pumps (2 Sets Inc)
SKU: ANC80X100
MRRP £155.00 + VAT Our price £93.00 (+ VAT) Incl. VAT: £111.60
More info
65mm & 80mm Weld Neck Flange Set for NB(E),(K),(KE)65 Pumps (2 Sets Inc)
SKU: ANC65X80W
MRRP £129.00 + VAT Our price £78.00 (+ VAT) Incl. VAT: £93.60
More info
65mm & 80mm Threaded Flange Set for NB(E),(K),(KE)65 Pumps (2 Sets Inc)
SKU: ANC65X80
MRRP £129.00 + VAT Our price £78.00 (+ VAT) Incl. VAT: £93.60
More info
50mm & 65mm Weld Neck Flange Set for NB(E),(K),(KE)50 Pumps (2 Sets Inc)
SKU: ANC50X65W
MRRP £161.00 + VAT Our price £97.00 (+ VAT) Incl. VAT: £116.40
More info
50mm & 65mm Threaded Flange Set for NB(E),(K),(KE)50 Pumps (2 Sets Inc)
SKU: ANC50X65
MRRP £142.00 + VAT Our price £86.00 (+ VAT) Incl. VAT: £103.20
More info
40mm & 65mm Weld Neck Flange Set for NB(E),(K),(KE)40 Pumps (2 Sets Inc)
SKU: ANC40x65W
MRRP £135.00 + VAT Our price £81.00 (+ VAT) Incl. VAT: £97.20
More info
40mm & 65mm Threaded Flange Set for NB(E),(K),(KE)40 Pumps (2 Sets Inc)
SKU: ANC40X65
MRRP £129.00 + VAT Our price £78.00 (+ VAT) Incl. VAT: £93.60
More info
32mm & 50mm Weld Neck Flange Set for NB(E),(K),(KE)32 Pumps (2 Sets Inc)
SKU: ANC32X50W
MRRP £161.00 + VAT Our price £97.00 (+ VAT) Incl. VAT: £116.40
More info
32mm & 50mm Threaded Flange Set for NB(E),(K),(KE)32 Pumps (2 Sets Inc)
SKU: ANC32X50
MRRP £142.00 + VAT Our price £86.00 (+ VAT) Incl. VAT: £103.20
More info
Lowara DN100 4" Galvanized Steel Round Counterflange Threaded Kit
SKU: 109392730
MRRP £73.00 + VAT Our price £51.10 (+ VAT) Incl. VAT: £61.32
More info
15 mm Compression Fitting Brass Stopcock (Pack of 1)
SKU: 11145105
MRRP £4.50 + VAT Our price £2.00 (+ VAT) Incl. VAT: £2.40
More info
22 mm Compression Fitting Brass Lockshield Gate Valve (Set of 2)
SKU: 32160127
MRRP £14.00 + VAT Our price £4.50 (+ VAT) Incl. VAT: £5.40
More info
15 mm Compression Fitting Brass Lockshield Gate Valve (Set of 2)
SKU: 32160128
MRRP £11.50 + VAT Our price £3.50 (+ VAT) Incl. VAT: £4.20
More info
22 mm Compression Fitting Brass Gate Valve (Set of 2)
SKU: 32160014
MRRP £15.00 + VAT Our price £4.80 (+ VAT) Incl. VAT: £5.76
More info
