Lowara TLCHN 20-10L SHW Stainless Steel Circulator 240v [CC: 0140]

Name: Lowara TLCHN 20-10L SHW Stainless Steel Circulator 240v [CC: 0140]
Brand: Lowara
SKU: 105016155CC1
Price: 425 GBP
Availability: InStock

SKU

105016155CC1

MRRP £812.00 + VAT Our price £425.00 (+ VAT) Incl. VAT: £510.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose union set option:

None

3/4" to 1 1/4" Brass Union Set + £40.00

I have read the item's description, and understand that this is a Clearance item:

I confirm, and understand.

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

This is a Clearance Corner item - Please see details below

CC Overall Rating: C (185/300)

CC Stock Number: 0140

Product Code: 105016155

Manufacturer: Lowara

Model: TLCHN 20-10L

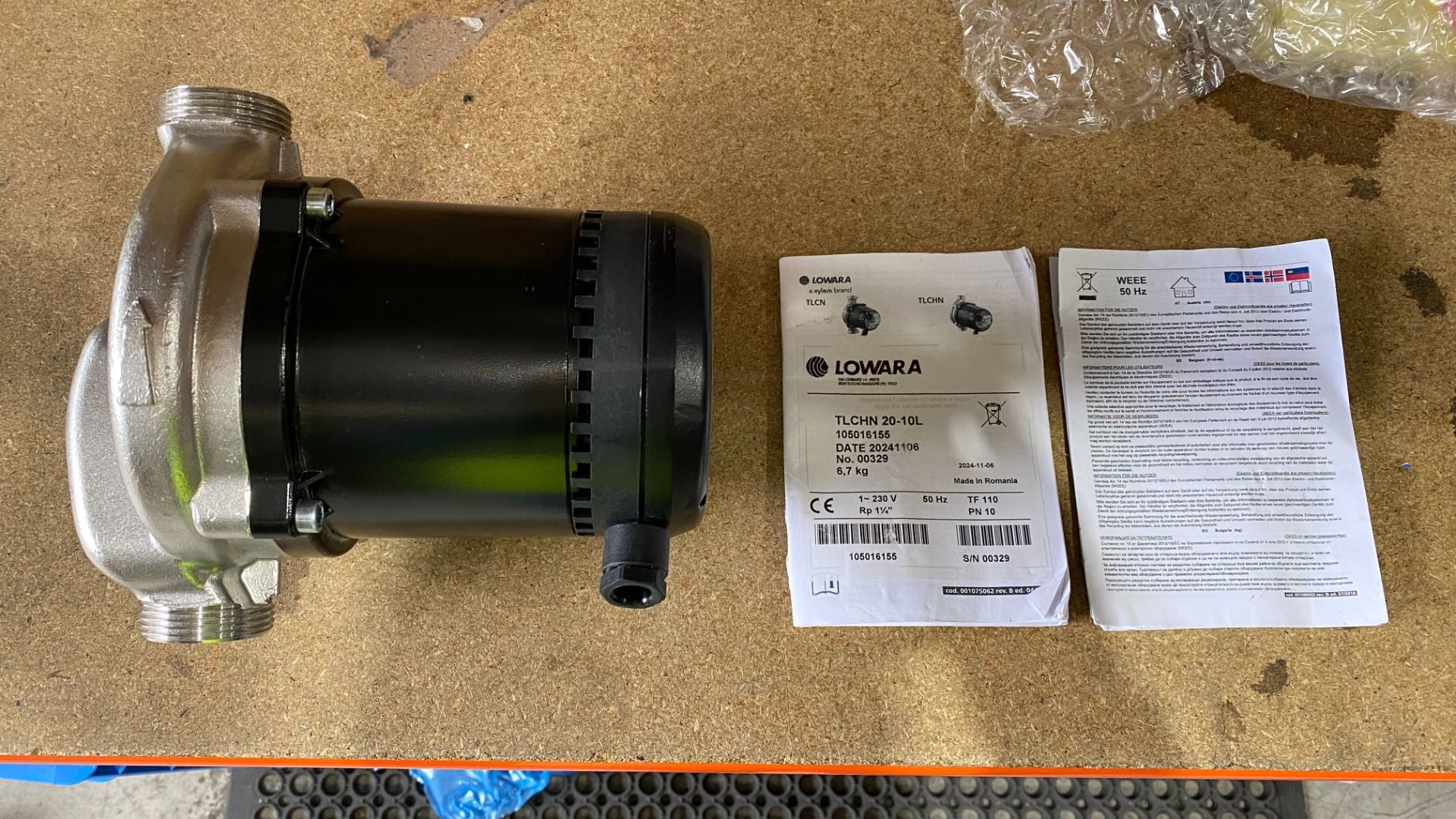

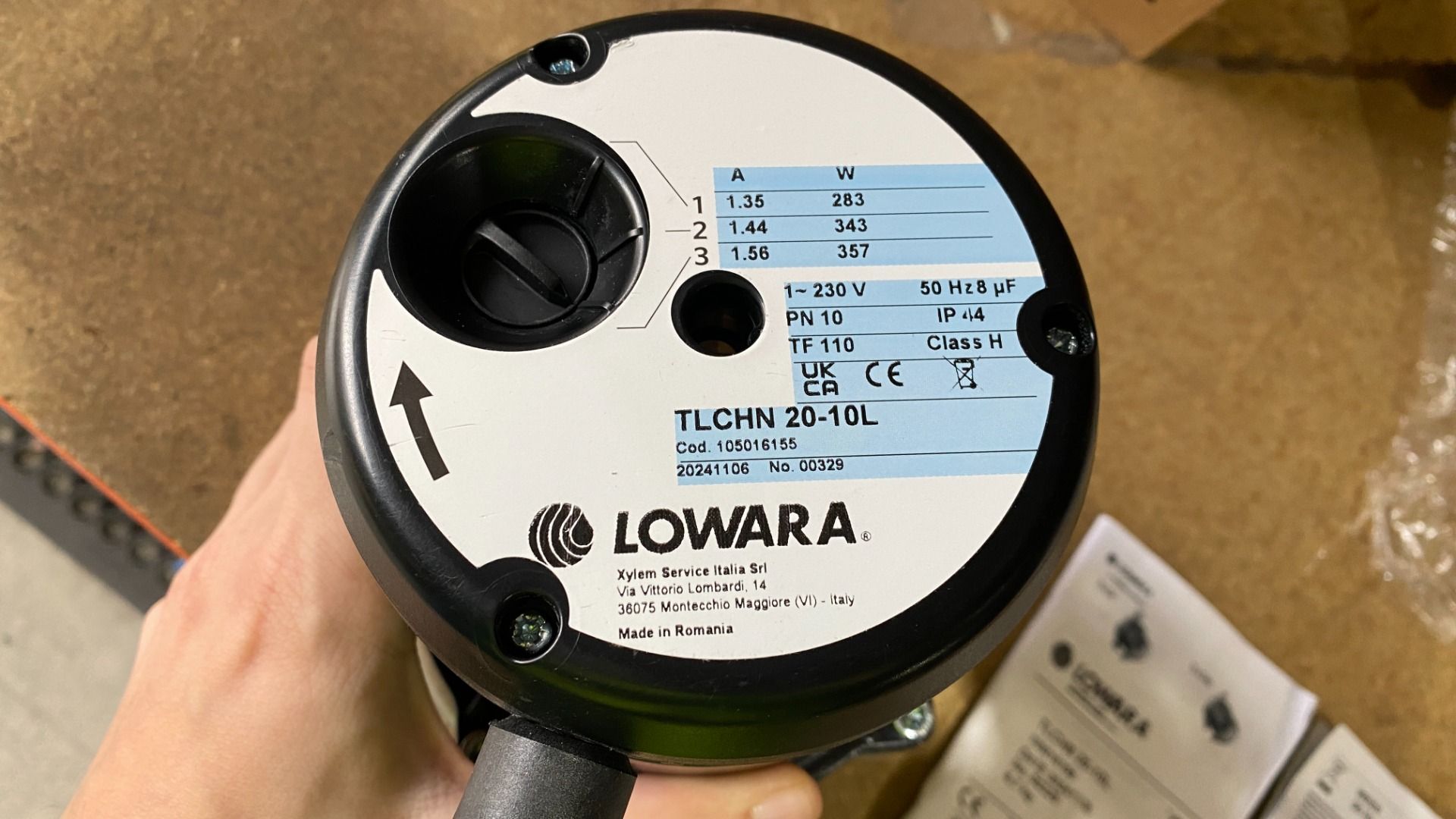

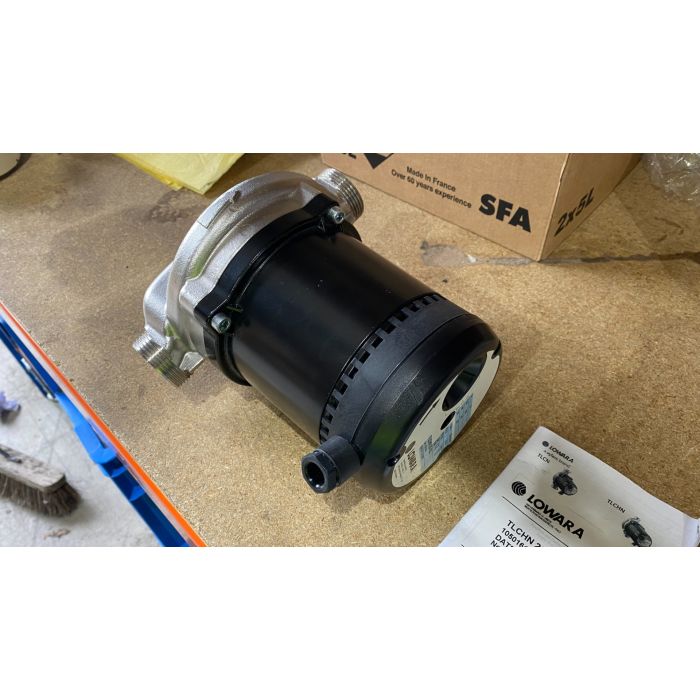

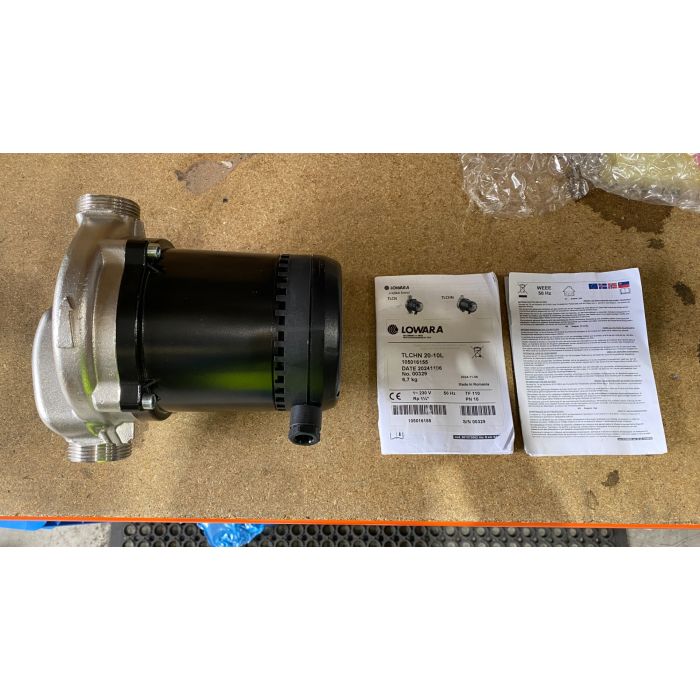

Comments: New, includes documentation. Missing OEM box.

CC Signed In: 17/10/25

If you have any questions regarding this pump, please contact us on 01925 761 120 or email at lholmes@anchorpumps.com

----------------------------------------------------------------

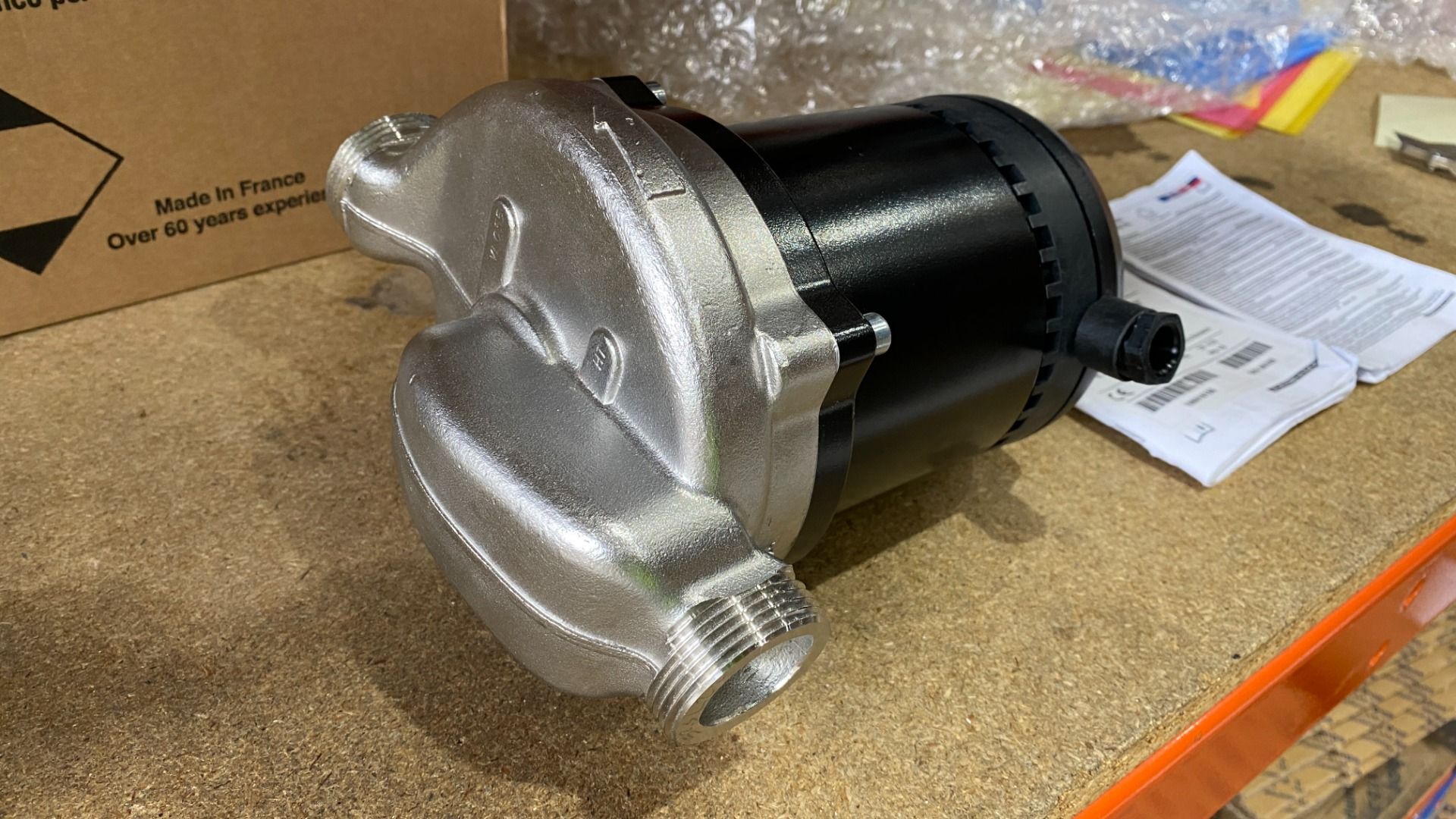

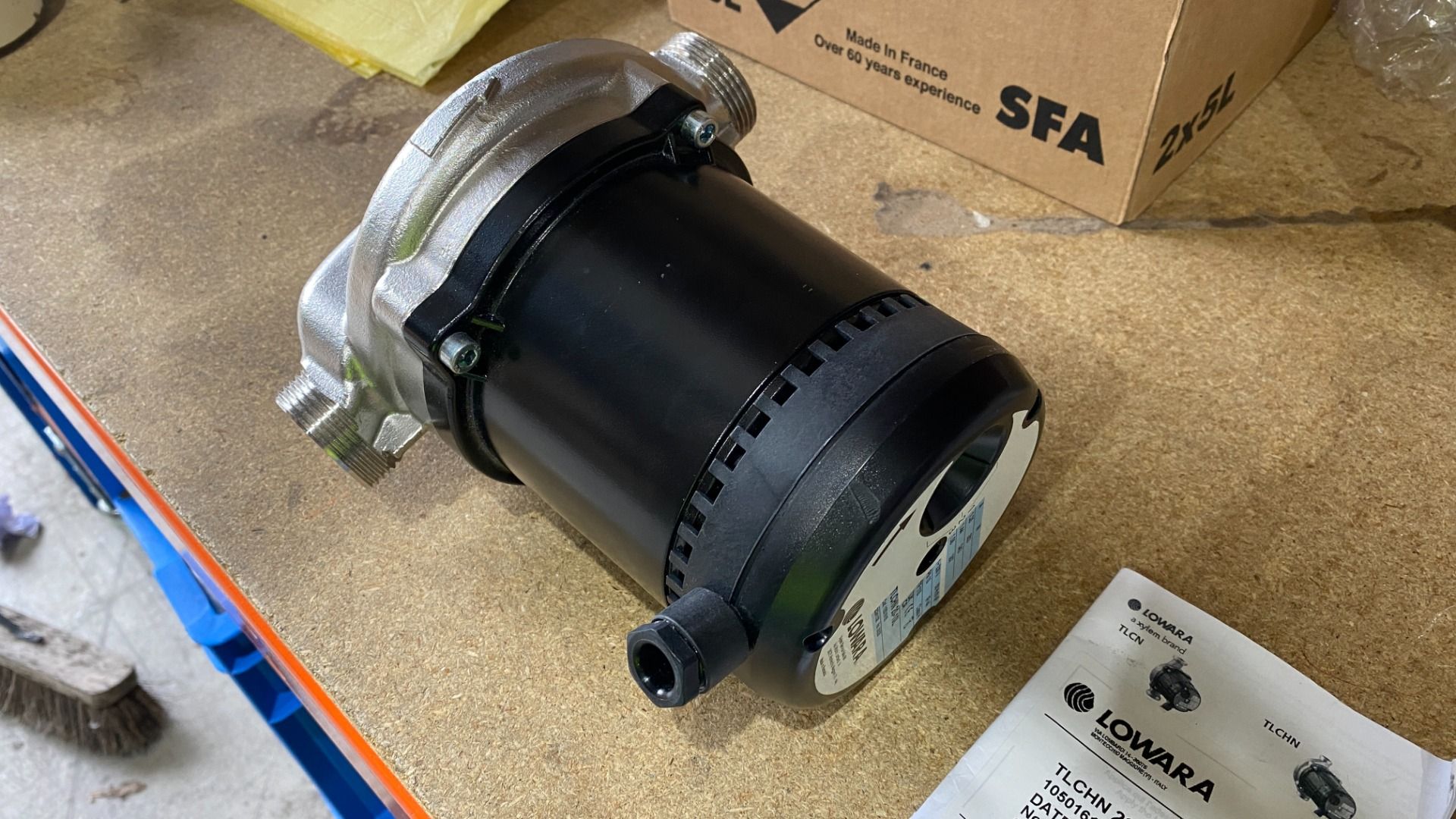

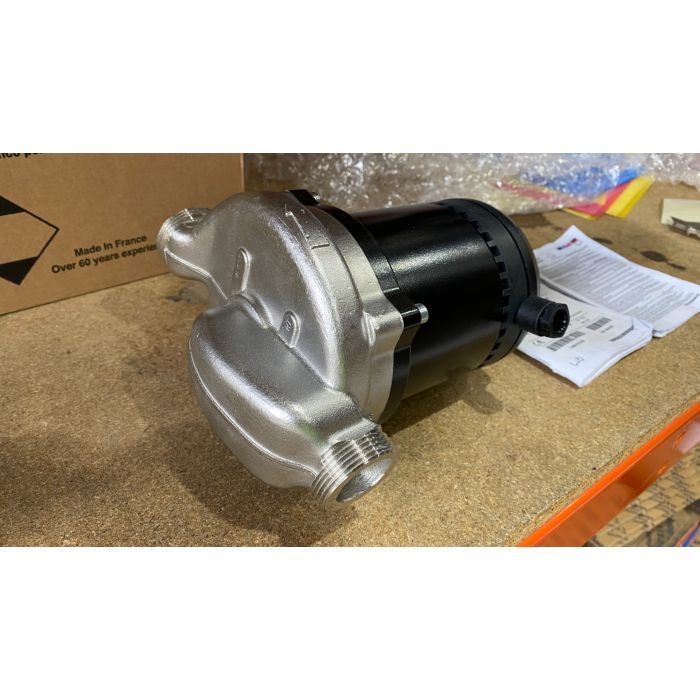

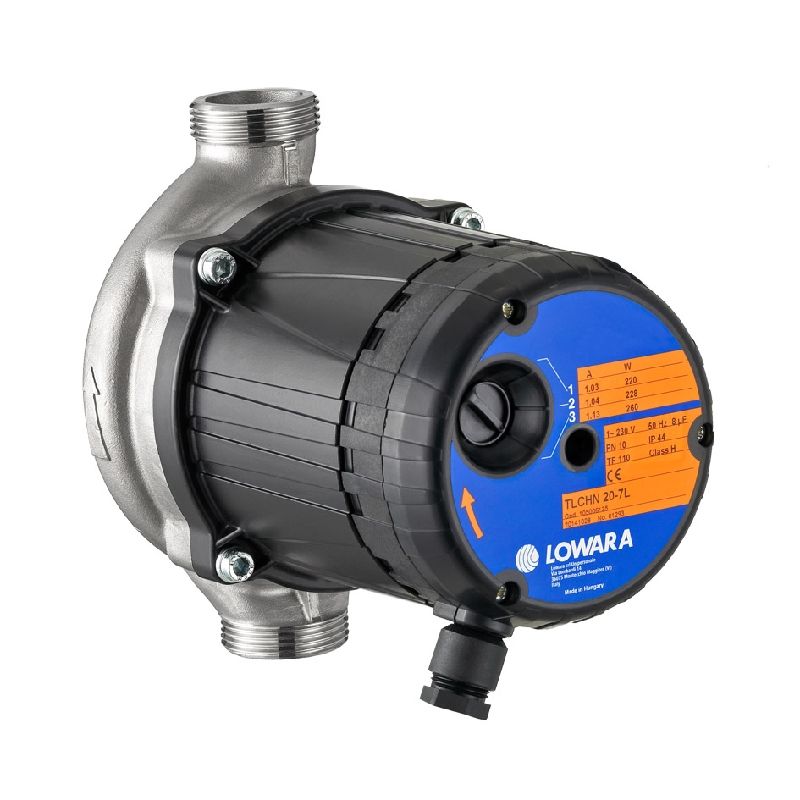

Lowara TLCHN 20-10L SHW Stainless Steel Circulator 240v - 105016155

Fixed speed single phase glandless wet rotor circulators with standard induction motor. Bearings are lubricated by the pumped media. Designed for hot water recirculation in building and industrial installations to provide immediate availability of hot water.

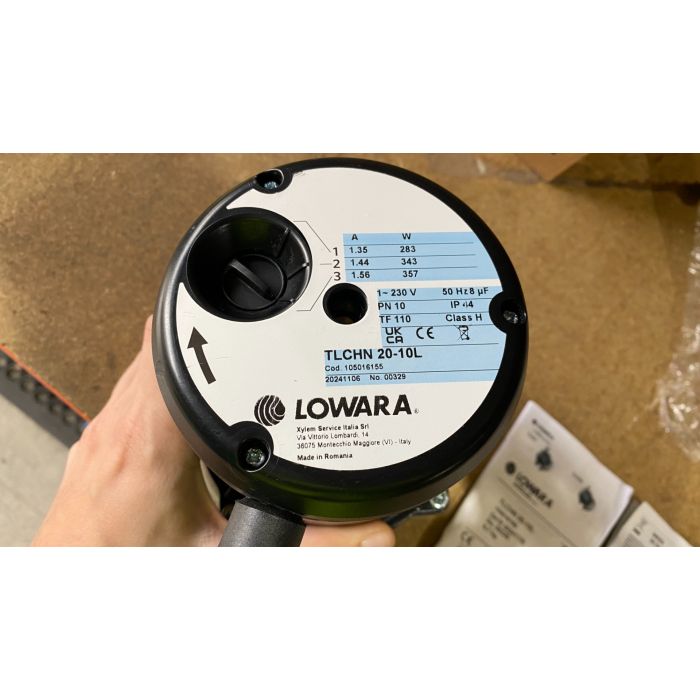

Motor

Wet rotor type, with bearings lubricated by the pumped liquid
Axial and radial bearings made of ceramic
Single-phase 230 V 50 Hz power supply
Terminal box axially integrated in the motor
Three-speed hand selector motor
Insulation class 180 (H)
Protection class IP 44

Materials

Pump Body - Stainless steel
Impeller - Composite material
Shaft - Ceramic
Inner Jacket - Stainless steel
Wear Ring - Ceramic
Bearings - Ceramic
Gaskets - EPDM

More Information
SKU	105016155CC1
Manufacturers	Lowara
Clearance Corner Product Number	0140
Clearance Corner Signed In	Oct 17, 2025
Clearance Corner Overall Rating	C - Good (100-199)
Item Condition	New
Box/Bag Condition	Not Present (Missing)
Original Box Contents Included	Documentation
Manufacturers Warranty	2 Years
Weight	7.0 Kg
Dimensions	206mm x 180mm x 136mm

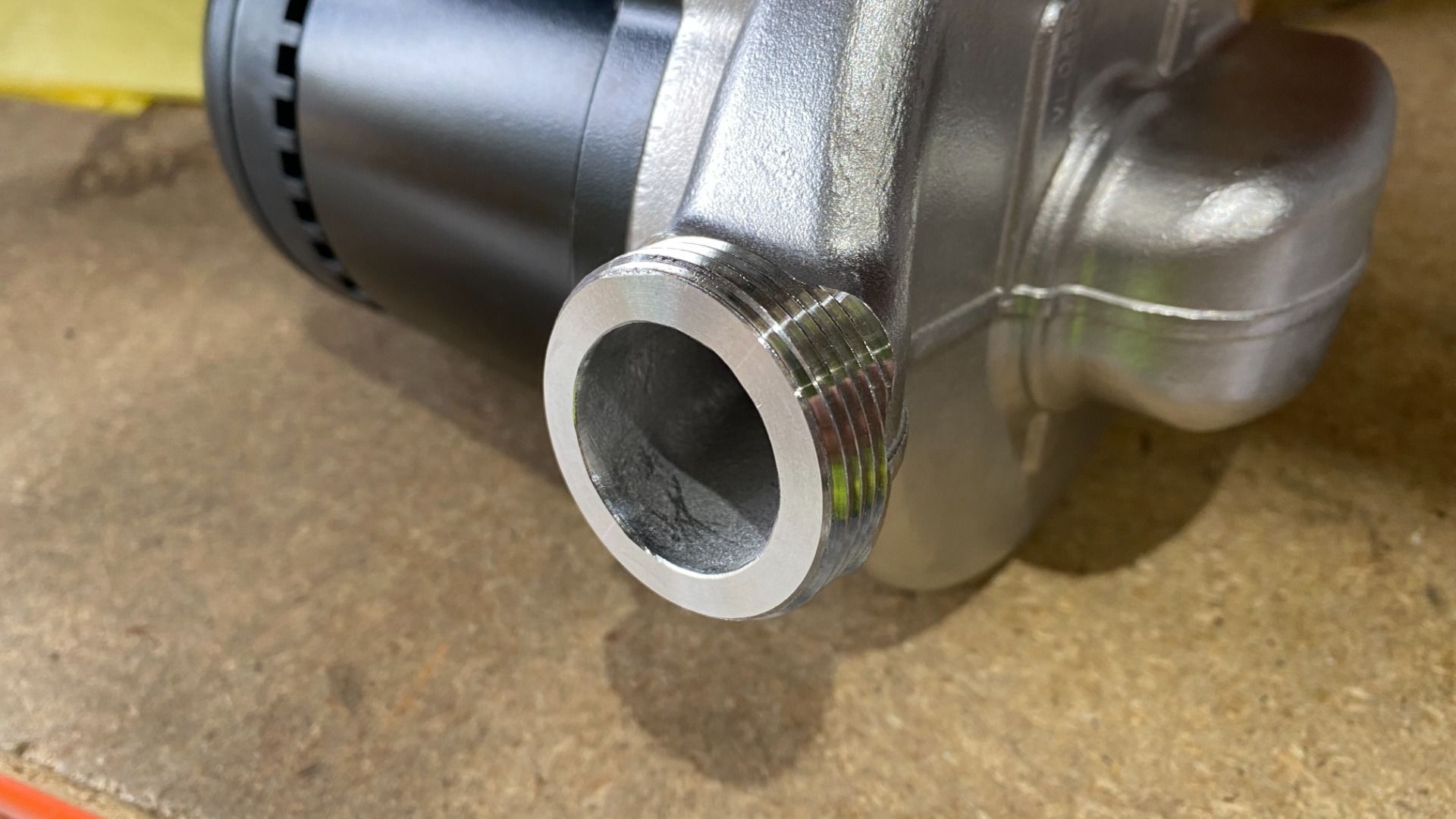

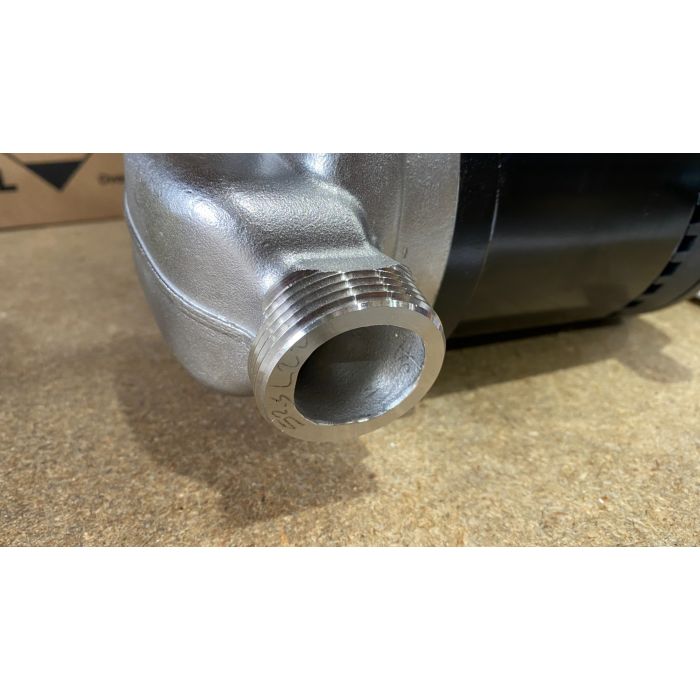

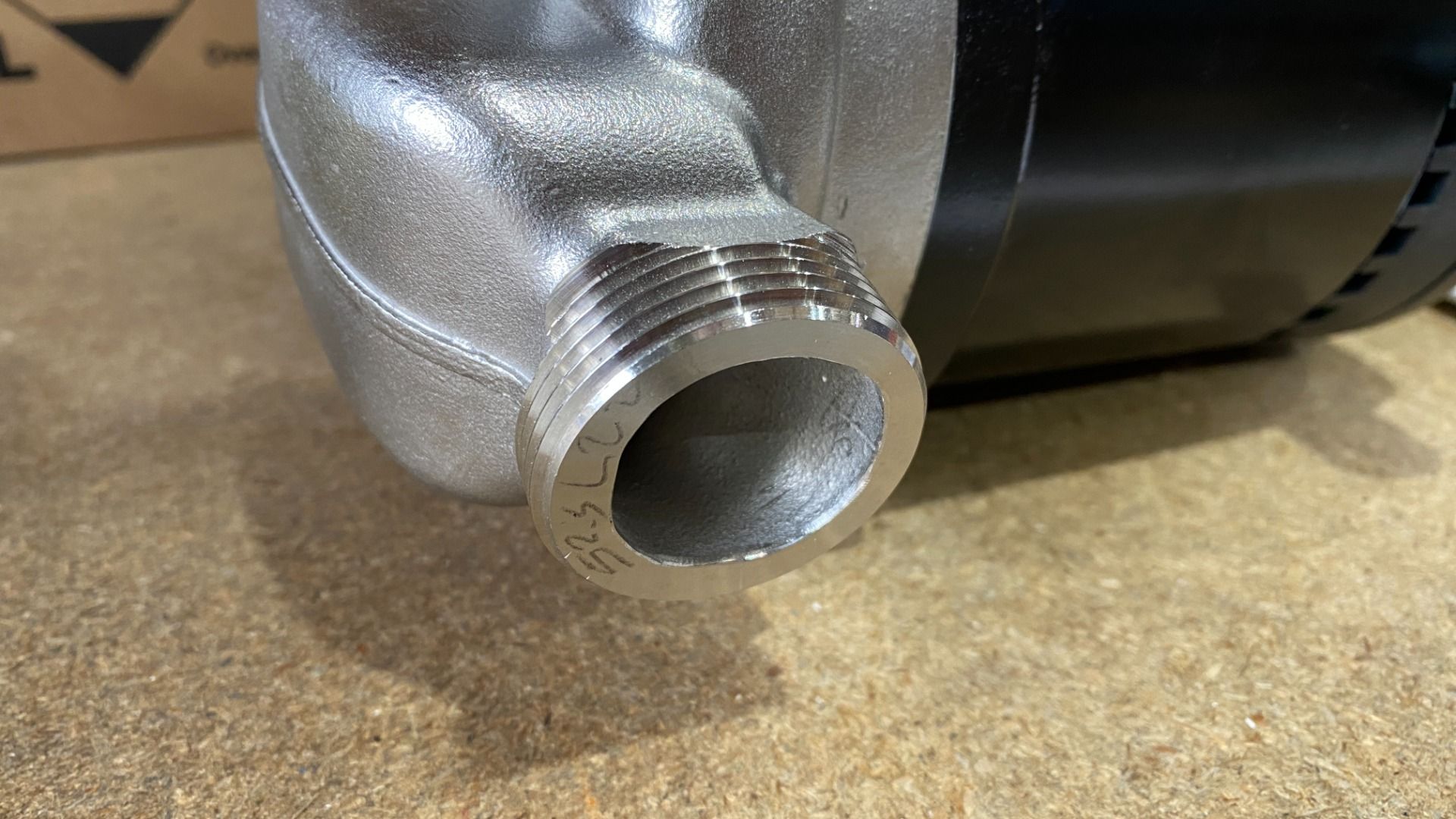

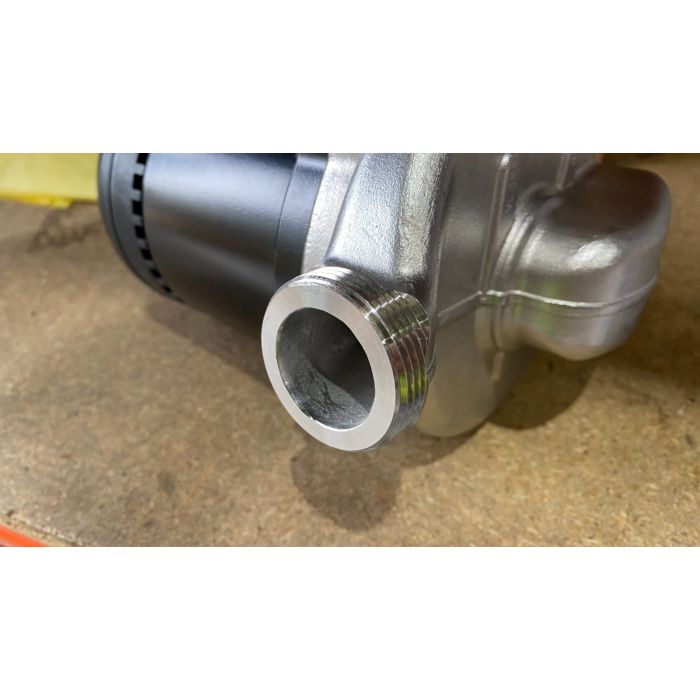

Connection Type	1 1/4 Inch BSP
Voltage	240V 1Ph 50Hz

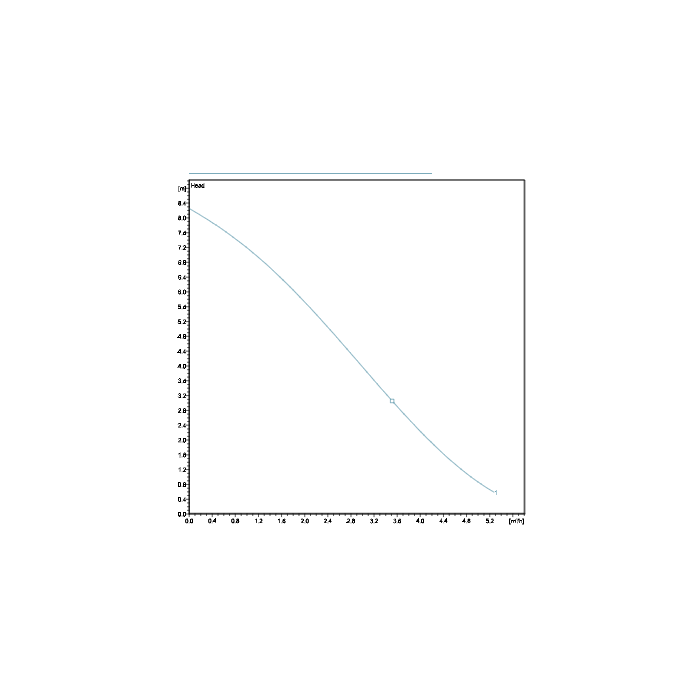

Max Flow	5m3/hr
Max Head	10m
Max Pressure	10 Bar
Max Temperature	2°C to 110°C
Material	Stainless Steel
Impeller Material	Composite
Country of Manufacture	Romania
