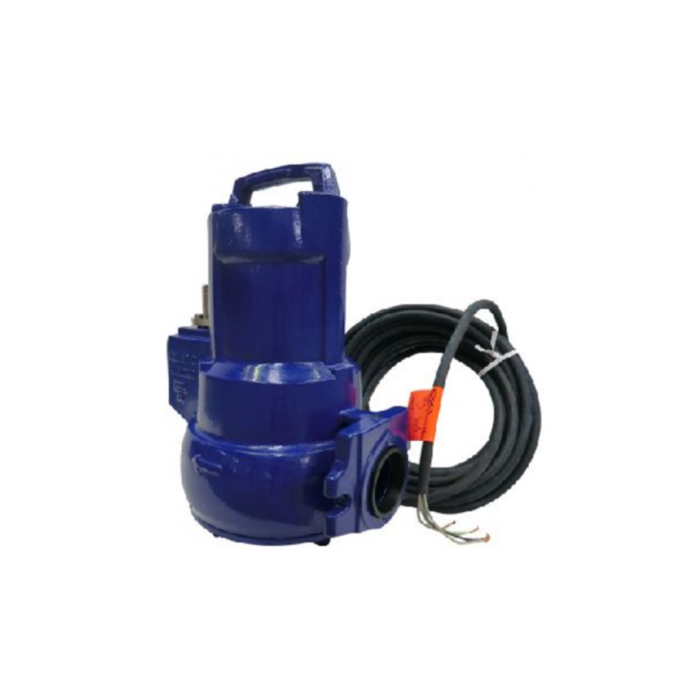

KSB AMA-Porter 500 ND Submersible Waste Water Pump without Floatswitch 415V

MRRP £945.13 + VAT Our price £520.00 (+ VAT) Incl. VAT: £624.00
Order within
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

KSB's range of Ama-Porter floodable, vertical, single-stage submersible waste water pumps made of cast iron, for pumping a variety of applications consisting of waste water and sewage.

The Ama-Porter range have flanged connections and are available in 240V 1Ph 50Hz or 400/415V 3Ph 50Hz models and can be used for the following applications:

  • Pumping of waste water containing solid matter or domestic sewage from toilets, washing machines and dishwashers in intermittent operation

  • Surface water or rainwater pumping from car parks and uneven surfaces

  • Drainage of sumps and cellars liable to flooding


The AMA-Porter 500 series have 2" Flanged female discharge ports.

The AMA-Porter 600 series have 2 1/2" Flanged female discharge ports.

We strongly recommend that the Series 500 Portable Installation Kit is purchased with this Pump.  The pump is shown with installation kit fitted, which comprises of hosetail, feet, elbow and fixings.

More Information
SKU 39017191
Weight 22.0 Kg

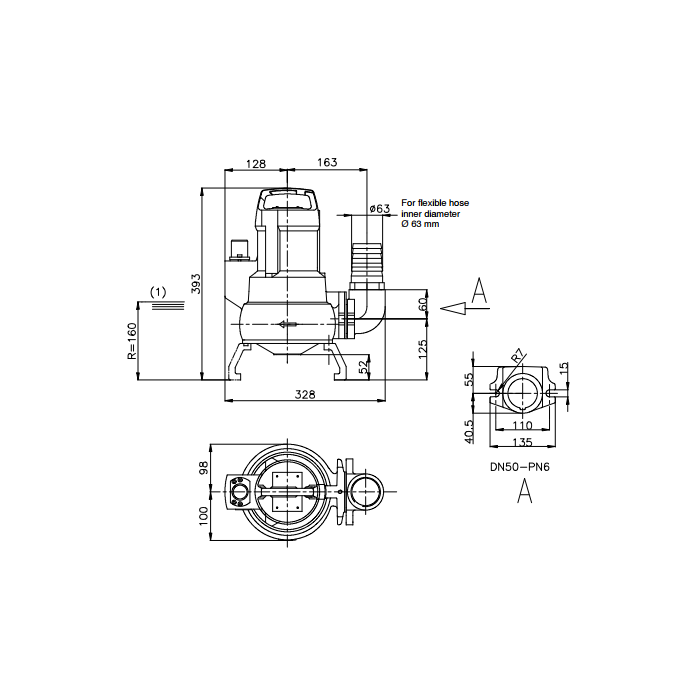

Dimensions 393mm High x 328mm Deep x 198mm Wide
Manufacturers KSB
Manufacturers Warranty 2 Years
Material Cast Iron
Connection Type 2 Inch Flanged Female
Voltage 415V 3Ph 50Hz

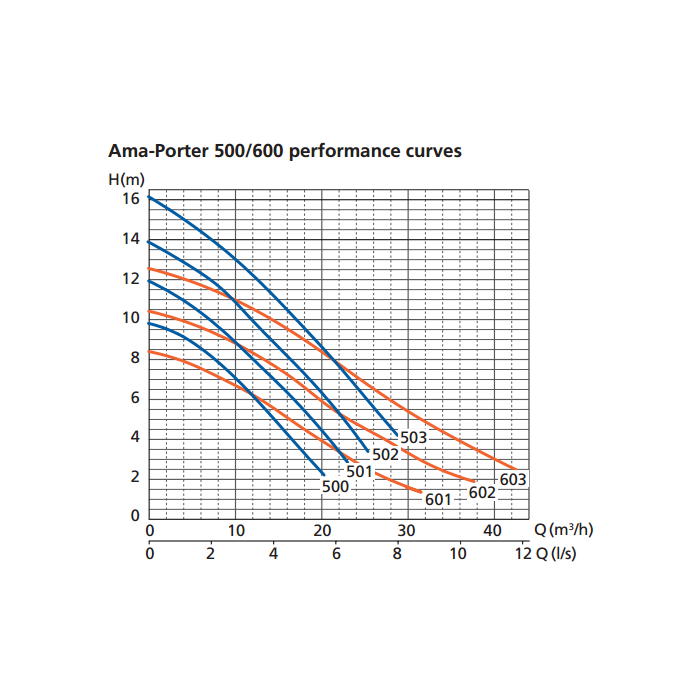

Max Flow 20 m3/hr
Max Head 9.5m
Full Load Current (FLC) 2.3A
Motor Size 0.55 kW
Cable Length 10 Metres
