KSB AMA-Porter 601 ND Submersible Waste Water Pump without Floatswitch 415V

SKU
39017109
MRRP £1,740.98 + VAT Our price £958.00 (+ VAT) Incl. VAT: £1,149.60
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

KSB's range of Ama-Porter floodable, vertical, single-stage submersible waste water pumps made of cast iron, for pumping a variety of applications consisting of waste water and sewage.

The Ama-Porter range have flanged connections and are available in 240V 1Ph 50Hz or 400/415V 3Ph 50Hz models and can be used for the following applications:

  • Pumping of waste water containing solid matter or domestic sewage from toilets, washing machines and dishwashers in intermittent operation
  • Surface water or rainwater pumping from car parks and uneven surfaces
  • Drainage of sumps and cellars liable to flooding



The AMA-Porter 500 series have 2" Flanged female discharge ports.

The AMA-Porter 600 series have 2 1/2" Flanged female discharge ports.

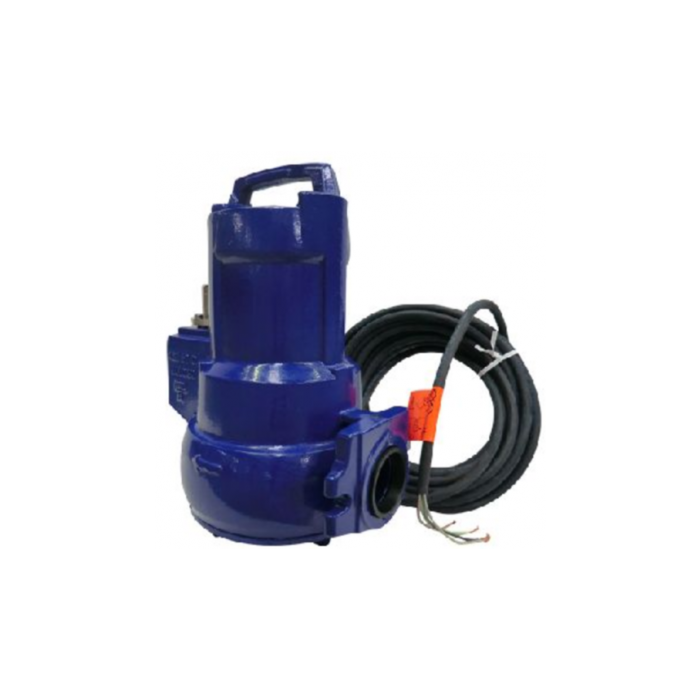

We strongly recommend that the Portable Installation Kit is purchased with this Pump.  The pump is shown with installation kit fitted, which comprises of hosetail, feet and fixings.

More Information
SKU 39017109
Weight 25.0 Kg

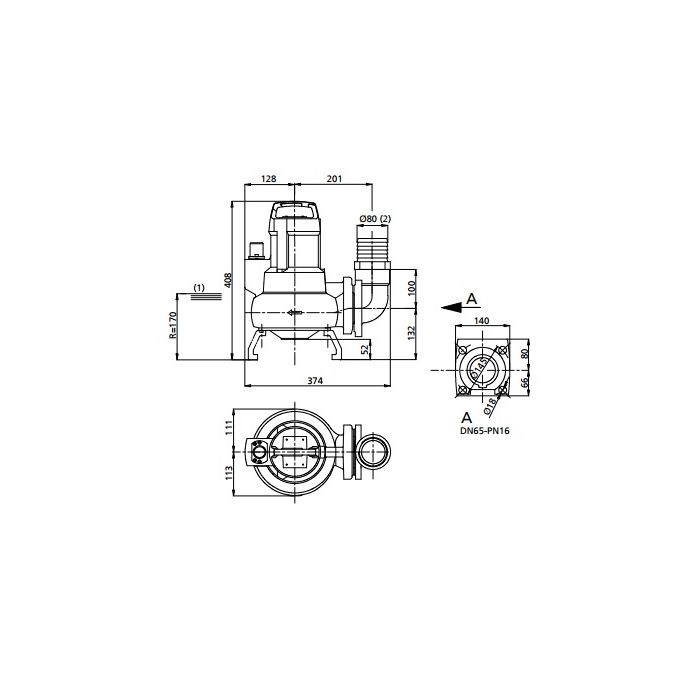

Dimensions 408mm High x 374mm Deep x 224mm Wide
Manufacturers KSB
Manufacturers Warranty 2 Years
Material Cast Iron
Connection Type 2 1/2 Inch Flanged Female
Voltage 415V 3Ph 50Hz
Max Flow 30 m3/hr
Max Head 8m
Full Load Current (FLC) 2.8A
Motor Size 0.75 kW
Cable Length 10 Metres
