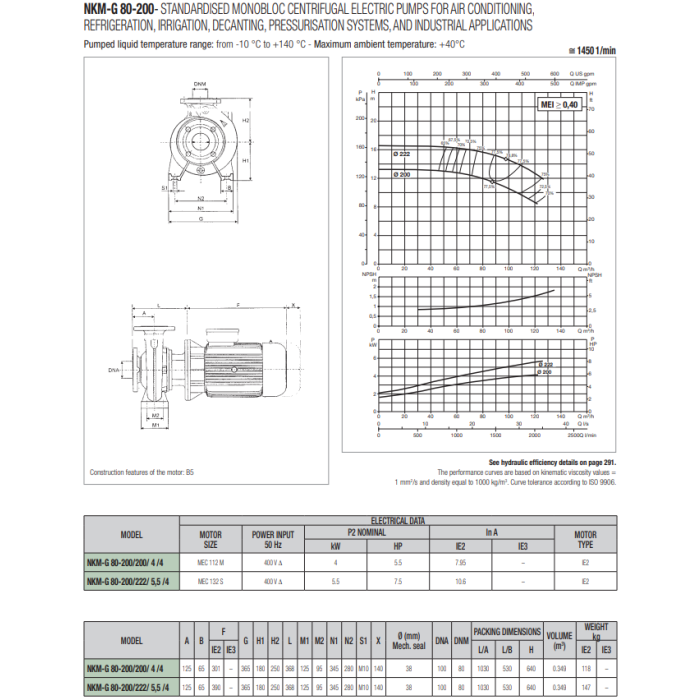

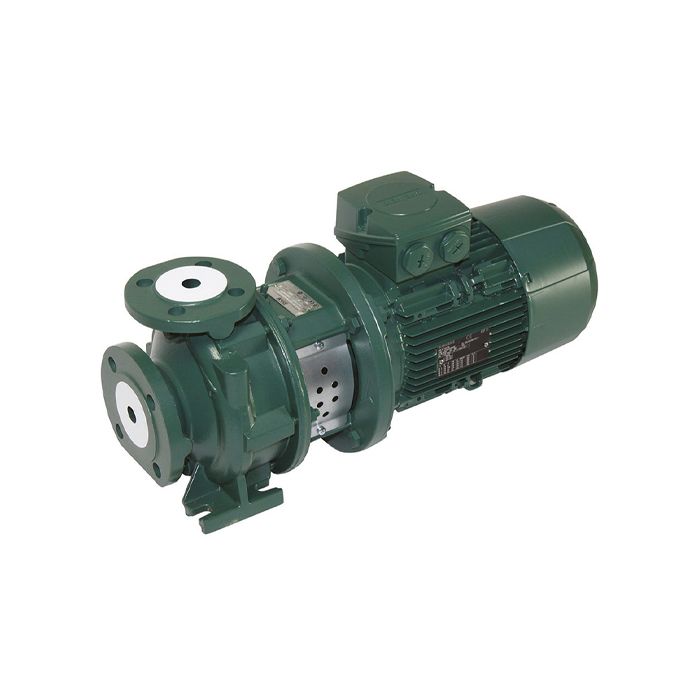

DAB NKM-G 80-200/222/A/BAQV/5.5/4-IE3 End Suction Centrifugal Pump 415v

SKU
1D5317B9X
MRRP £4,016.00 + VAT Our price £2,812.00 (+ VAT) Incl. VAT: £3,374.40
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

APPLICATIONS
Standardised centrifugal monobloc electric pumps with coupling, designed for a wide range of applications, such as:
- Water supply.
- Hot water circulation for the heating system.
- Circulation of cold water for air conditioning and refrigeration systems.
- Transfer of liquids in agricultural, horticultural, and industrial environments.
- Installation of pumping assemblies.

CONSTRUCTION FEATURES OF THE PUMP
Cast iron single stage spiral body complying with DIN-EN 733 (formerly DIN 24255), cast iron support, flanges complying with DIN 2533, and DIN 2532 for DN 200. Cast iron impeller, closed and dynamically balanced, with compensation of the axial thrust through balancing holes, operation on interchangeable wear rings (on request). AISI 304 stainless steel pump shaft. Seal device: standardised mechanical seal according to DIN 24960 in carbon/silicon carbide with EPDM OR rings.

CONSTRUCTION FEATURES OF THE MOTOR
Closed asynchronous type motor with external ventilation, B3/B5 construction, two poles for NKP and four poles for NKM. Rotor running on ball bearings, largely oversized to ensure low noise and durability. For the protection of the motor, we recommend the use of remote overload cut-outs, in compliance with current local regulations. For liquids with densities higher than water, motors with proportionally higher powers are required. Construction according to the standard: CEI 2-3. IE2 motors as standard from 0,75 kW - IE3 ≥ 7,5 kW (IE2 ≥ 7,5 kW only outside the EU)

Compatible with the PreFilters and PreFilter fitting kits.

More Information
SKU 1D5317B9X
Manufacturers DAB
Manufacturers Warranty 2 Years
Weight 147.0 Kg
Dimensions 430mm (h) x 718mm (w) x 365mm (d)
Inlet Dimension 100mm Flanged
Discharge Dimension 80mm Flanged
Motor Size 5.5kW
Full Load Current (FLC) 10.6A
Voltage 415V 3Ph 50Hz
Max Flow 128m3/hr
Max Head 16m
Max Pressure 1.6 Bar
Max Temperature 140°C
Material Cast Iron
