TPE3 D 40-80-S A F A BQQE 0.25kW Single Stage Twin Head Variable Speed In Line With DP+T Sensor 240v

SKU
99272587
MRRP £7,452.00 + VAT Our price £4,323.00 (+ VAT) Incl. VAT: £5,187.60
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Grundfos TPE3 D 40-80-S A F A BQQE Single Stage Twin Head Variable Speed In-Line Pump with built-in differential pressure and temperature transducer 240V 1Ph 50/60Hz, 0.25kW Motor and flanged pump connections.

Single-stage, twin head, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.

The pump is fitted with a fan-cooled, permanent-magnet synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2.

TPE3 pumps have a built-in differential pressure and temperature transducer and are pre-programmed for close loop control.

  • neck rings and impeller made of composite
  • cataphoresis treatment
  • shell coupling
  • top-pull-out principle for easy maintenance
  • optimized hydraulics
  • in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
  • corrosion resistant maintenance-free mechanical shaft seal.
  • RP 40mm flanged Outlet

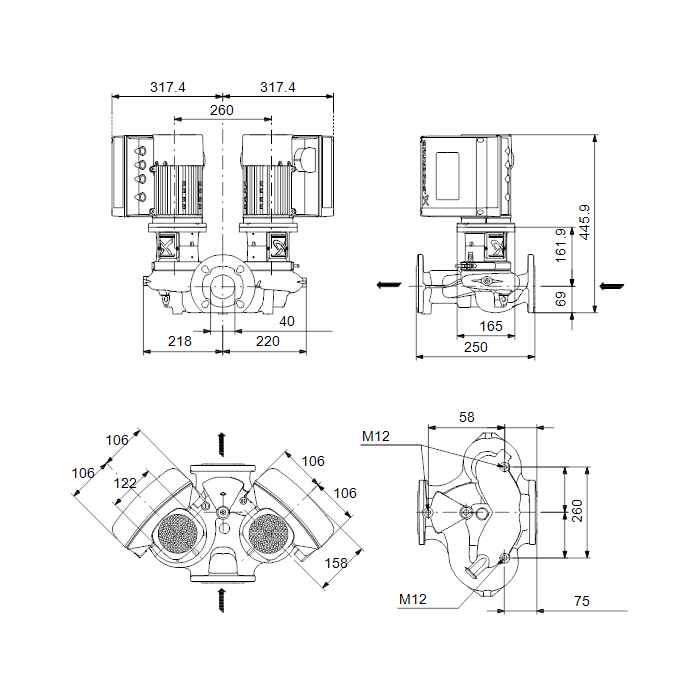

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU 99272587
Manufacturers Grundfos
Manufacturers Warranty 2 Years
GTIN 5713826367251
Weight 60.1 Kg
Dimensions 446mm (h) x 438mm (w) x 250mm (d)
Connection Type 40mm Flanged
Motor Size 0.25 kW
Full Load Current (FLC) 1.75-1.50 A
Voltage 240V 1Ph 50Hz
RPM 2970rpm
Max Flow 20m3/hr
Max Head 8m
Max Temperature 120 degrees C
Material Cast Iron
Impeller Material Composite
