TPE2 D 32-180-N A F A BQQE 0.55kW Single Stage Twin Head Variable Speed In Line 240v
SKU
98438558
MRRP
£6,516.00
+ VAT
Our price
£3,780.00
(+ VAT)
Incl. VAT: £4,536.00
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
Grundfos TPE2 D 32-180-N A F A BQQE Single Stage Twin Head Variable Speed In-Line Pump 240V 1Ph 50/60Hz, 0.55kW Motor and flanged pump connections.
Single-stage, twin head, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.
- neck rings and impeller made of composite
- cataphoresis treatment
- shell coupling
- top-pull-out principle for easy maintenance
- optimized hydraulics
- in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
- corrosion resistant maintenance-free mechanical shaft seal.
- RP 32mm flanged Outlet
- Optional union sets available, see accessories below for options.
IMAGE FOR ILLUSTRATION PURPOSES ONLY.
SKU | 98438558 |
---|---|
Manufacturers | Grundfos |
Manufacturers Warranty | 2 Years |
GTIN | 5711495019624 |
Weight | 58.7 Kg |

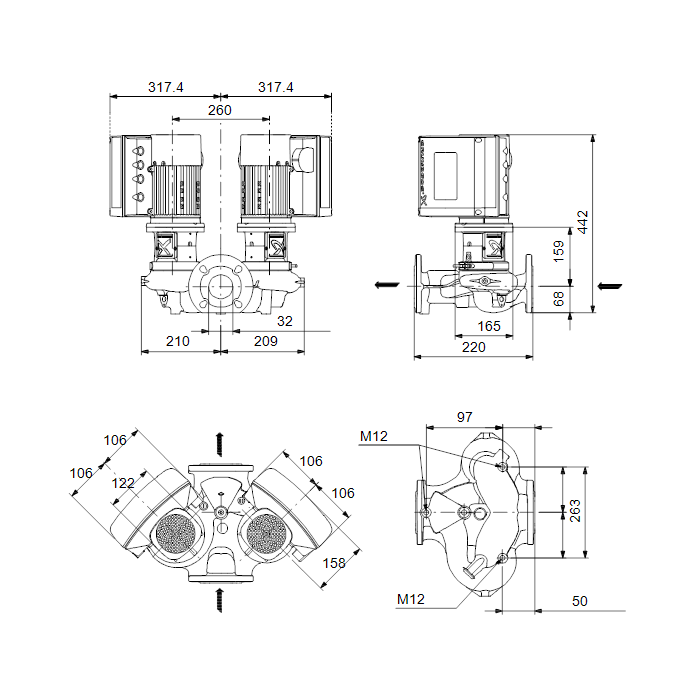

Dimensions | 442mm (h) x 419mm (w) x 220mm (d) |
Connection Type | 32mm Flanged |
Motor Size | 0.55 kW |
Full Load Current (FLC) | 3.60-3.00 A |
Voltage | 240V 1Ph 50Hz |
RPM | 4700rpm |
Max Flow | 20m3/hr |
Max Head | 18m |
Max Temperature | 120 degrees C |
Material | Cast Iron |
Impeller Material | Composite |
