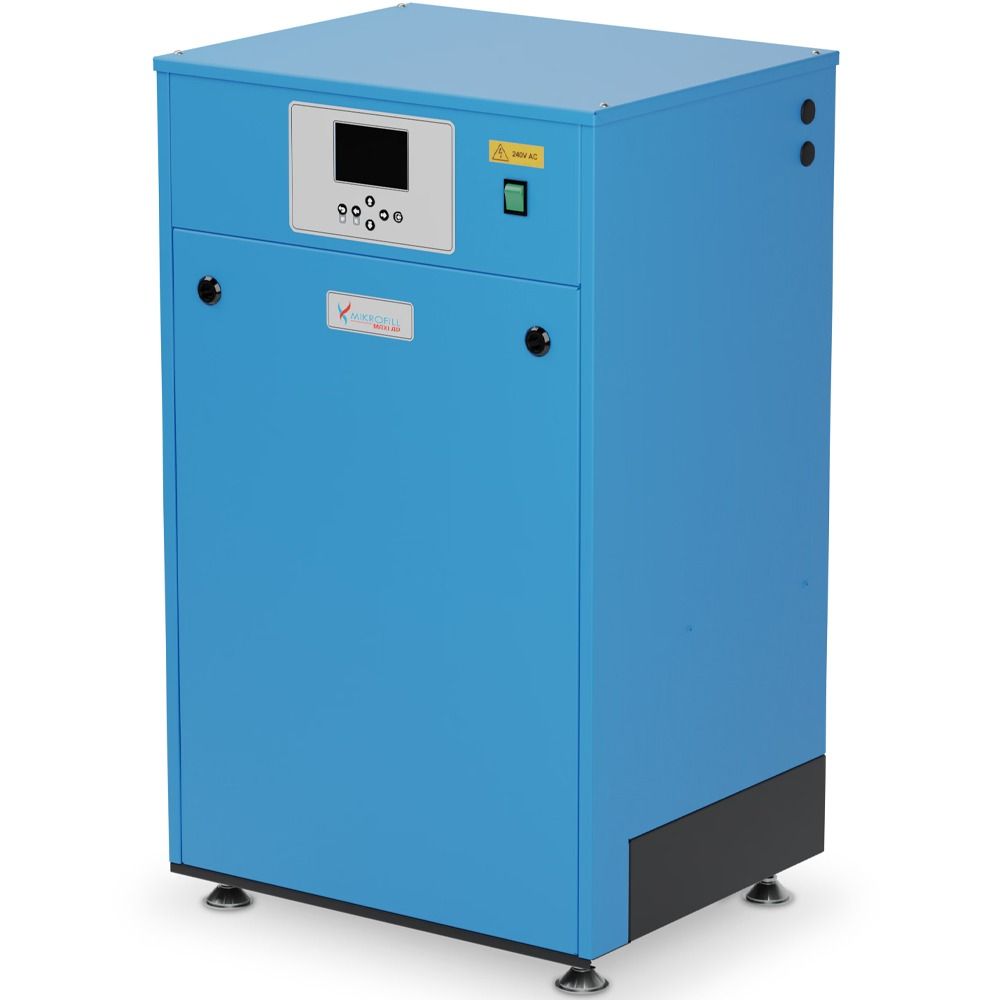

Stuart Turner SPU 280 Maxi Pressurisation Unit (MikroFill MAXI PLUS HP)
* Available where Guaranteed Stock Icon Appears Below
Digital Pressurisation Unit
Capable of filling a system from empty and then monitoring and maintaining the design fill pressure
in sealed systems, Mikrofill Digital Pressurisation Units are easy to install and commission and are
housed in compact and robust enclosures suitable for either floor or wall mounting.
Utilising an unique microprocessor controller, pressure transducer monitoring and water level
sensing, these systems feature intuitive, easy to use controls, self diagnostic functions, configurable
volt-free contact alarm outputs and a BMS Modbus interface.
- Suitable for sealed systems of up to 300,000 litres
- Twin (Duty-Standby) pump option
- 7.0 bar cold fill pressure
- 18 litre tank capacity
- Floor mounting
- Digital control system and LCD graphic display
- Automated system fill and top-up
- Easy to install and set up
- High flow, WRAS approved fill valve
- Category 5 backflow protection, Type AB air gap , weir overflow and warning pipe
- Patent protected
- 2 year guarantee

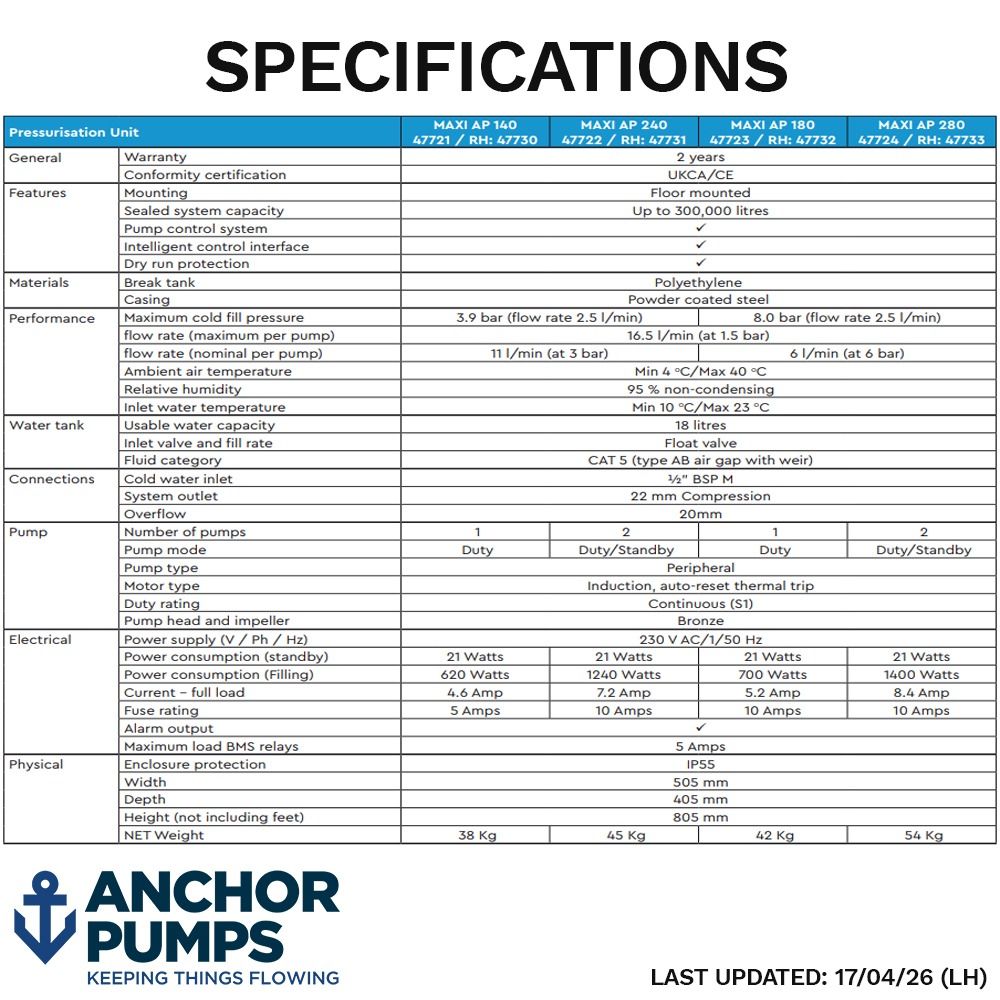

| SKU | 46726 |
|---|---|
| Manufacturers | MikroFill |
| Manufacturers Warranty | 2 Years |
| Weight | 43.0 Kg |

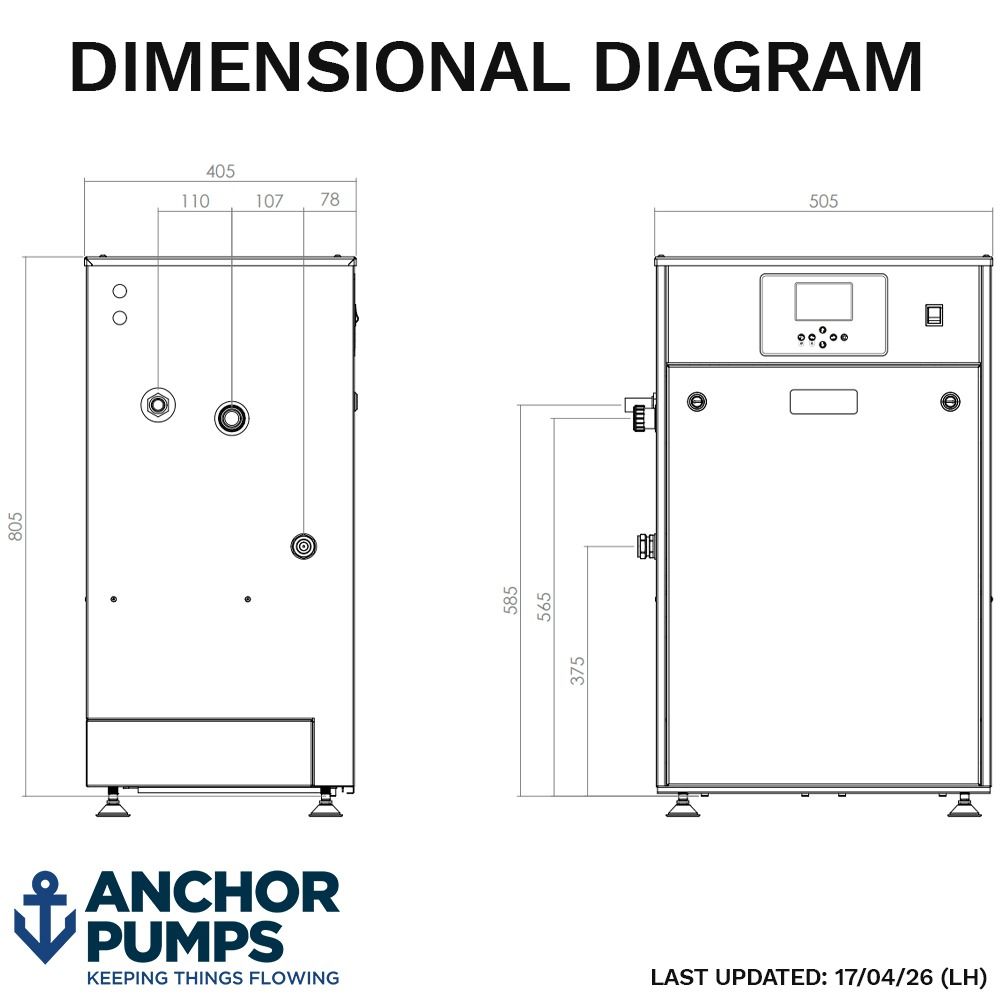

| Dimensions | 470mmW x 440mmD x 780mmH |
| Connection Type | 1/2 Inch BSP |
| Discharge Dimension | 15mm Compression |
| Motor Size | 1298 W Filling 10 W Standby |
| Full Load Current (FLC) | 5.6A |
| Voltage | 240V 1Ph 50Hz |
| Max Head | 7.0 Bar Max Cold Fill |
