Mikrofill 3 Pro Pressurisation Unit 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

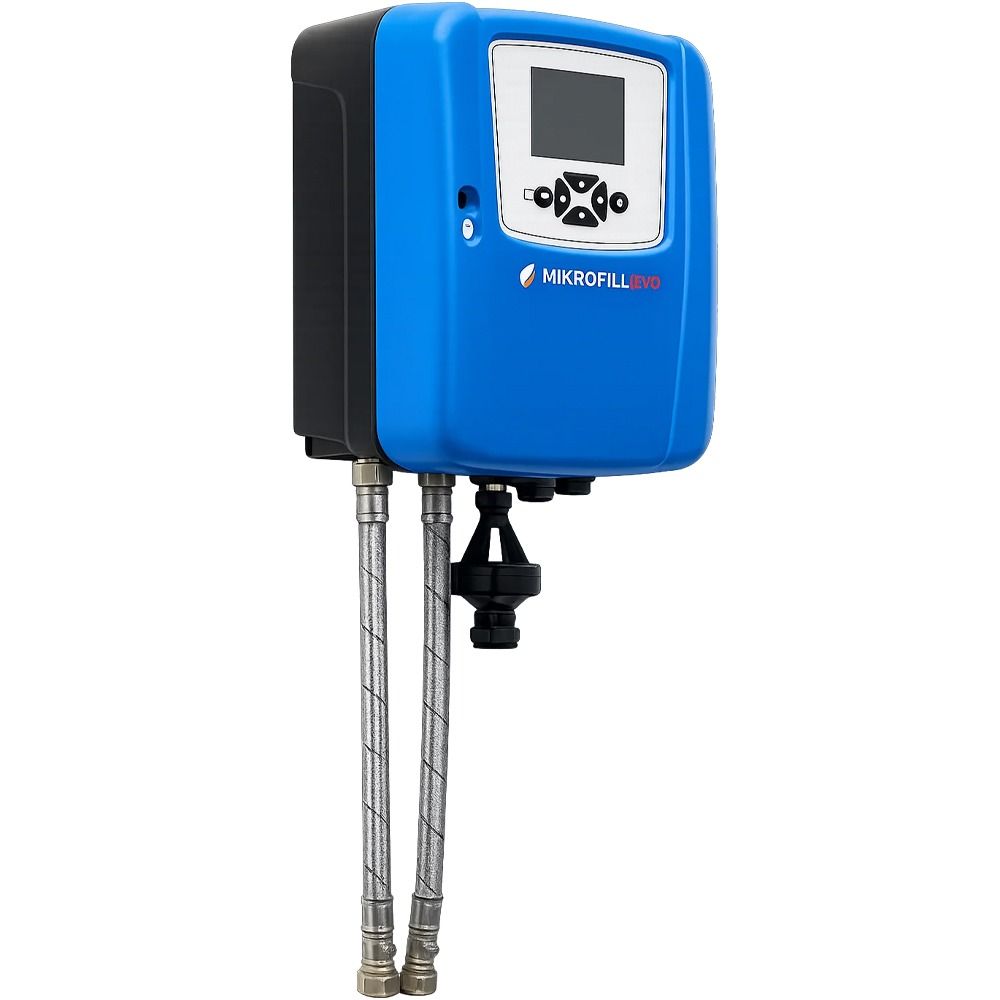

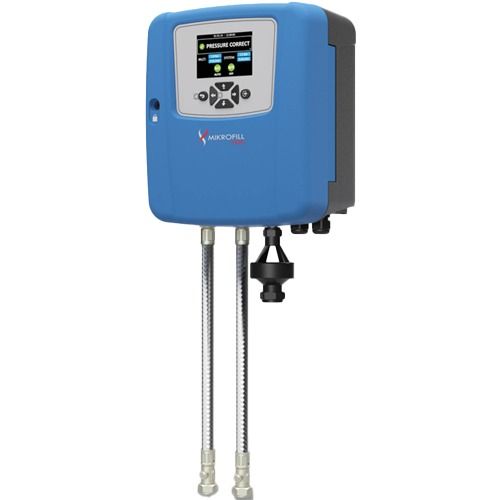

Mikrofill 3 Pro (72846) is a replacement for the discontinued Mikrofill 3 unit.
The Mikrofill 3 PRO is a fully automatic sealed system filling device and is suitable for the water management of domestic and commercial heating and cooling systems. The unit is compact, efficient, and easy to install and commission. Using smart logic alongside pressure and flow sensors, it provides early detection and alerts for system issues, and is designed to require minimal maintenance.
Key Features:
- WRAS-approved product - Fluid Risk Category 4 backflow prevention - WRAS approval number: 2307805.
- 8.7 bar max cold fill pressure.
- Compact, wall-mountable design.
- Full colour display with 3.95” LCD screen.
- Comprehensive electronic pressure management.
- Accurate flow rate monitoring and volume logging.
- Leak detection.
- Smart fault logic.
- MODBUS RTU.
- 4x customisable BMS outputs.
- Large memory capacity to record up to 100 parameter changes and fault conditions combined (all entries are time and date stamped).
- Easy to install and set up.
- Standard 2-year warranty.
- Extended 4-year warranty when purchased with a vessel package.
Accessories:
- x2 braided hoses with integrated isolation valve.
Applications:
- Maintaining system pressure in large domestic and commercial sealed heating systems.
- Maintaining system pressure in chilled water systems, refrigeration units and industrial cooling systems.
| SKU | 72846 |
|---|---|
| Manufacturers | MikroFill |
| Manufacturers Warranty | 2 Years |
| Weight | 5.0 Kg |

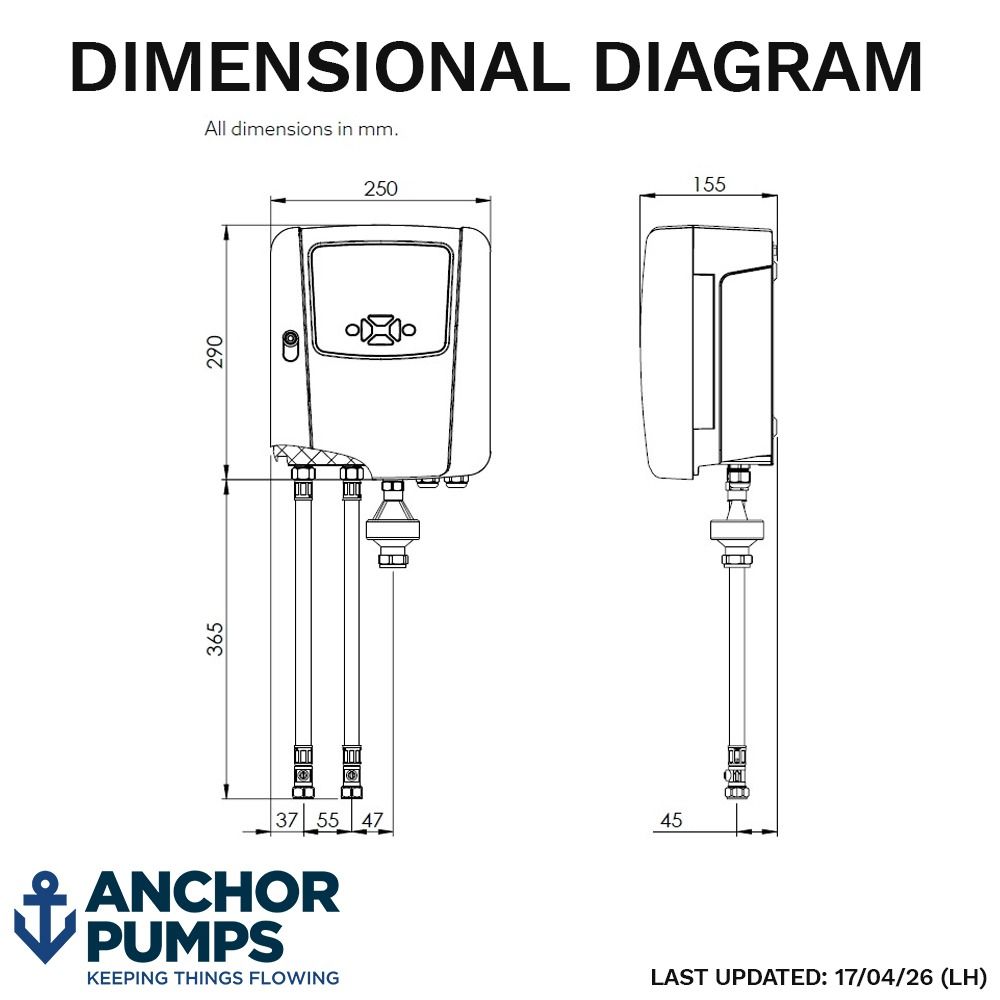

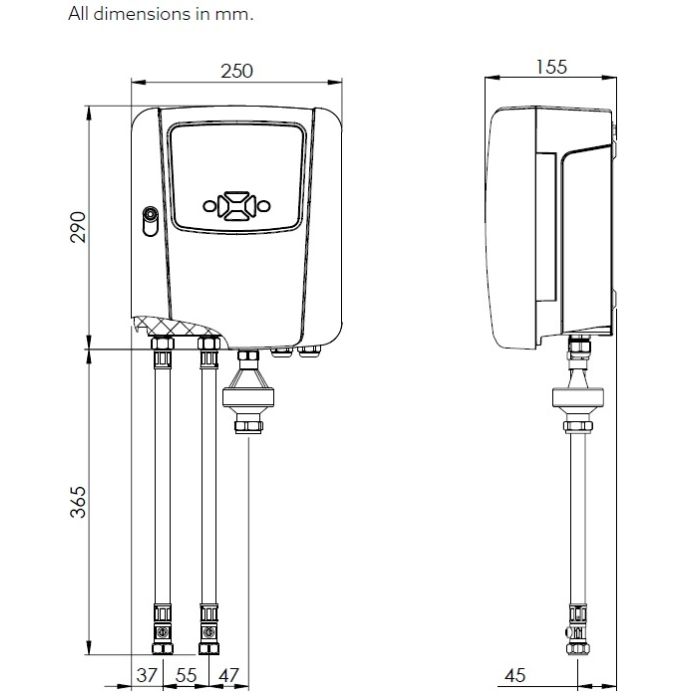

| Dimensions | 386mm (H) x 250mm (W) x 155mm (D) |
| Inlet Dimension | 15mm |
| Discharge Dimension | 22mm |
| Full Load Current (FLC) | 5A |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 12l/min |
| Max Pressure | 9 bar |
| Max Temperature | 85°C |
| Country of Manufacture | United Kingdom |
