Stuart Turner Pulse 40-120F (220) Variable Speed Circulator 240v

Name: Stuart Turner Pulse 40-120F (220) Variable Speed Circulator 240v
Brand: Stuart Turner
SKU: 47417
Price: 804 GBP
Availability: InStock

SKU

47417

MRRP £1,256.00 + VAT Our price £804.00 (+ VAT) Incl. VAT: £964.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Gasket Set Option

Choose Flange Set Option

Choose Spacer Kit Option

Choose Bellow Set Option

Installation Bundle

Extended Warranty

Additional 3 year warranty + £321.00

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Stuart Turner Pulse 40-120F (220) Variable Speed Circulator 240v - 47417

Stuart Pulse Cast Iron Circulators are used for the transfer of water within systems for hot water heating, air-conditioning, and ventilation. These single head variable speed circulators are designed to constantly monitor and regulate pressure and flow and adjust according to the set operating mode.

Features:

Automatic, proportional pressure, constant pressure and constant speed operating modes
Automatic night operation mode
ECM permanent magnet technology
Automatic venting cycle
Robust cast iron housing
Continuously rated
Carbon-Graphite bearings
220mm fitted length
DN40 flanged connection
ErP compliant
Built-in over-current, temperature and over-voltage protection
LED display control panel
2 year warranty

Applications:

Hot-water heating systems
Air conditioning and ventilation systems

More Information
SKU	47417
Manufacturers	Stuart Turner
Manufacturers Warranty	2 Years
GTIN	5050400474173
Weight	7.8 Kg

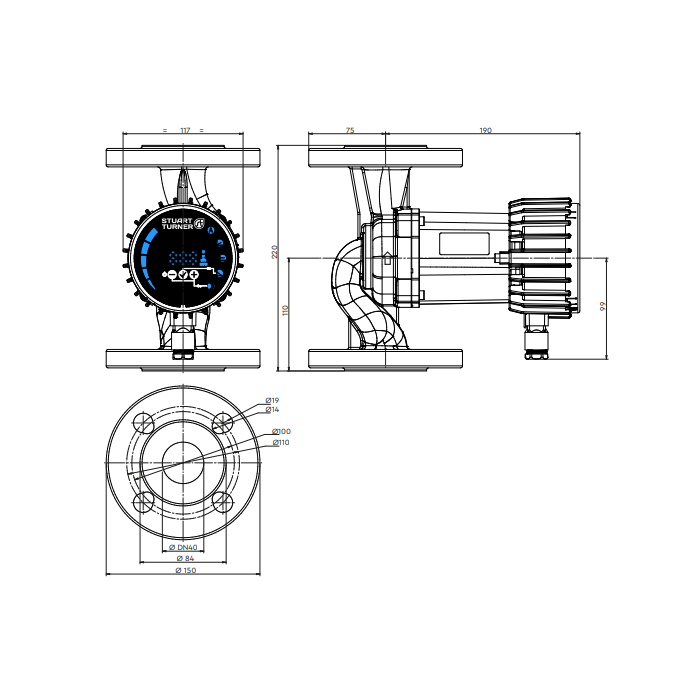

Dimensions	220mm (h) x 150mm (w) x 265mm (d)
Connection Type	40mm Flanged
Full Load Current (FLC)	1.5A
Voltage	240V 1Ph 50Hz

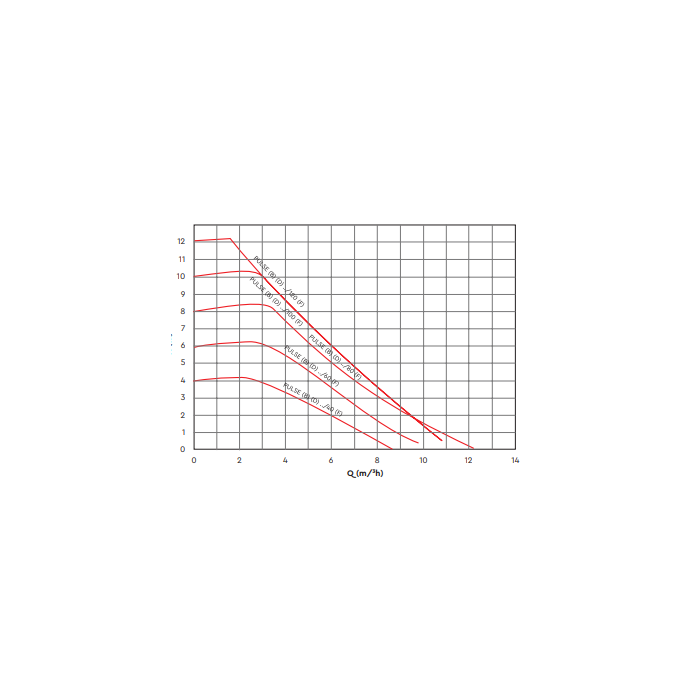

Max Flow	10.8m3/hr
Max Head	12.1m
Max Pressure	10 Bar
Max Temperature	-10°C to 110°C
Material	Cast Iron
Impeller Material	Polyethersulfone
