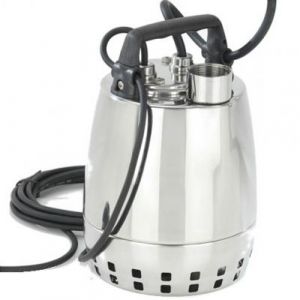

GXR Submersible Drainage Pumps 110V

• - clean water with solids (a maximum of 10mm in diameter)
• - draining rooms, including flooded cellars
• - emptying tanks
• - to take water from ponds, streams or pits
• - for rainwater collection
• - for irrigation

The pumps use an open single impeller and have a vertical delivery port. They are fitted with a double shaft seal with an oil chamber. The motor is cooled as the pumped water passes between the motor jacket and the external jacket. The pumps can accommodate a maximum flow rate of 220 litres/min. They lift heads up to 12.7m and have a 1 ¼" discharge port. The GXR pumps are suitable for liquids up to a maximum temperature of 50oC and can be immersed up to a depth of 5m. The minimum water level for pumps with a floatswitch is 70mm and for those requiring manual operation the minimum is 15mm. The pumps are fitted with a 5m cable. However, when they are used for outdoor applications, the power cable should be at least 10m long.
