Calpeda GXRm 9-GF Submersible Dirty Water Pump with Magnetic Floatswitch 110V

Name: Calpeda GXRm 9-GF Submersible Dirty Water Pump with Magnetic Floatswitch 110V
Brand: Calpeda
SKU: GXRm9-GF110
Price: 417 GBP
Availability: InStock

SKU

GXRm9-GF110

MRRP £595.00 + VAT Our price £417.00 (+ VAT) Incl. VAT: £500.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Hose Tail Option

Installation Bundle

Choose Hose Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Calpeda GXRm 9-GF Submersible Dirty Water Pump with Magnetic Floatswitch 110V - GXRm9-GF110

Calpeda GXR and GXV Submersible dirty water Pumps can be used for the following applications:

GXR:
- For clean water containing solids up to 10mm diameter.
- For draining rooms or or emptying tanks.
- Extraction of water from ponds, streams or pits and for rainwater collection.
- For irrigation purposes.

GXV:
- For clean or slightly dirty water, containing solids up to 25 mm grain size.
- Particularly suitable for liquidor with filamentous particles.

For outdoor use a power supply cable of not less than 10m should be used.

Construction Details:

Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
GXR: with open impeller.
GXV(25): with free-flow (vortex) impeller
Motor cooled by the pumped water passing between the motor jacket and the external jacket.
Handle in polypropylene.
Double shaft seal with oil chamber.
Certain models have a float switch for automatic start/stop.

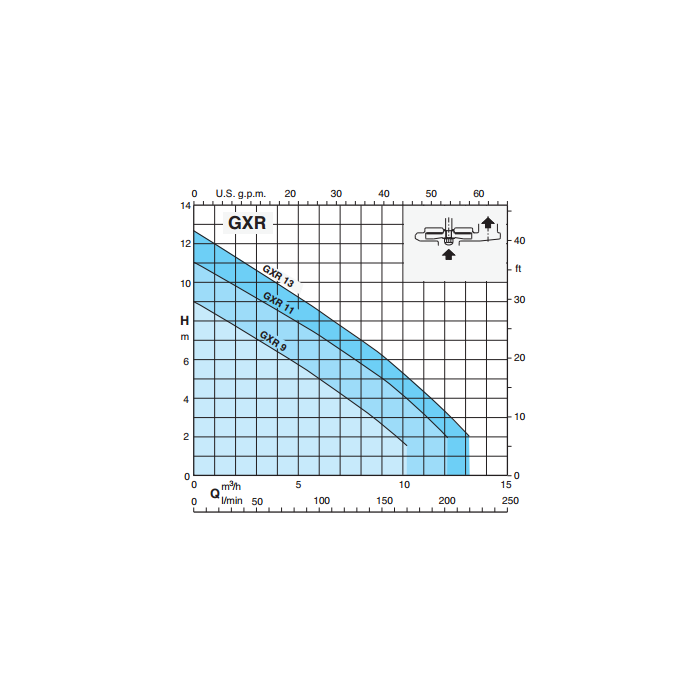

Head up to 12.7m and flow rates up to 220 litres/min.
1 1/4" BSP Female discharge port.

More Information
SKU	GXRm9-GF110
Weight	5.2 Kg
Dimensions	265mm High x 176mm Diameter
Manufacturers	Calpeda
Manufacturers Warranty	1 Year
Material	Stainless Steel
Connection Type	1 1/4 Inch BSP Female
Voltage	110V 1Ph 50Hz
Max Flow	10.2m3/hr
Max Head	9m
Full Load Current (FLC)	2.5A
Cable Length	5 Metres
Float Switch	Yes
