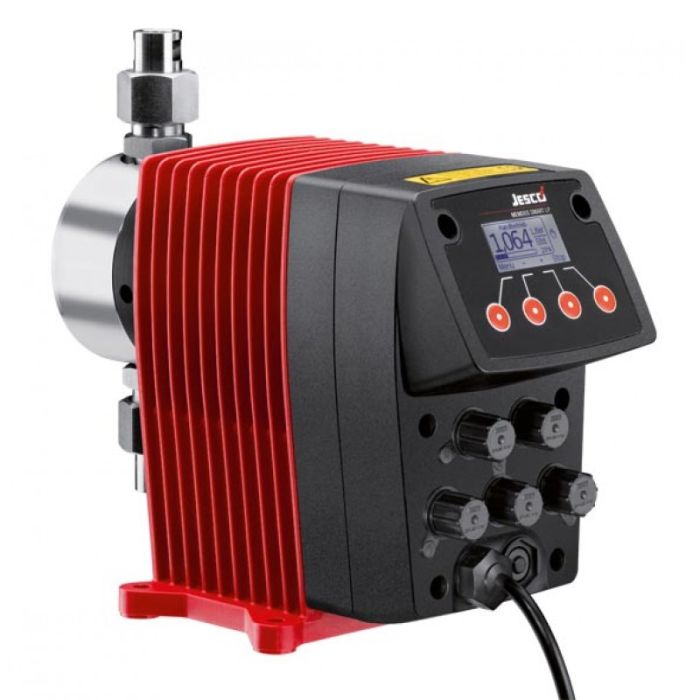

Lutz-Jesco Memdos Smart LP5 Stepper Pump 5.3l/h

SKU
10101004
MRRP £1,682.00 + VAT Our price £1,430.00 (+ VAT) Incl. VAT: £1,716.00
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

MEMDOS SMART LP

Precision that inspires

The compact stepper-motor pump, coupled with its intelligent drive concept, combines the big advantages of a solenoid-driven diaphragm dosing pump with the precision of a motor-driven diaphragm dosing pump.
The MEMDOS SMART LP series is available in five capacity ranges. The MEMDOS SMART LP's drive is fully adjustable. For integration into demanding automation networks, a version with an Ethernet-based MODBUS interface is available.

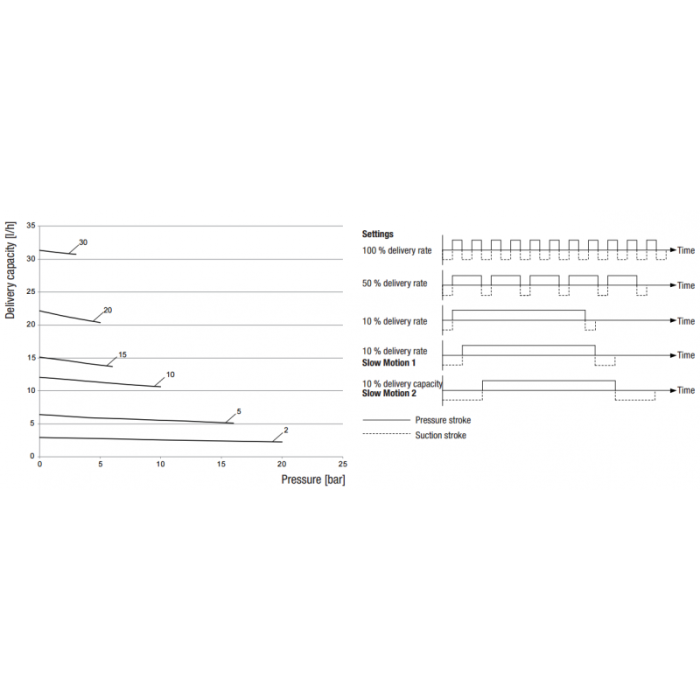

  • Capacity range 2.4 – 19.2 l/h, up to 20 bar
  • Power supply 110 – 240 V, 50/60 Hz, IP65, 25 W
  • Microprocessor controlled drive
  • Integrated dosing head venting facility (only MEMDOS SMART LP 2, LP 5 and LP 10 with dosing head made of plastic)
  • Suitable for wall and floor mounting
  • Material finishes PVC, PP, PVDF and stainless steel
  • Stroke frequency can be precisely adjusted via the keyboard
  • Graphic display with multi-language menu
  • Analogue input and pulse input (increase and reduction)
  • Level input with early warning and main alarm
  • Release input for external start/stop
  • Supply amount displayed in various units
  • Maximum delivery rate can be limited
  • Diaphragm replacement programme
  • 2 Slow Motion modes for dosing viscous media
  • Stroke feedback output
  • Alarm relay output
  • Batch dosing with interval and timer functions
  • Dosing control input
  • Diaphragm rupture input for leak monitoring
  • Ethernet interface (optional)
  • CSA and UL certified
More Information
SKU 10101004
Manufacturers Lutz-Jesco
Manufacturers Warranty 2 Years
Weight 2.2 Kg

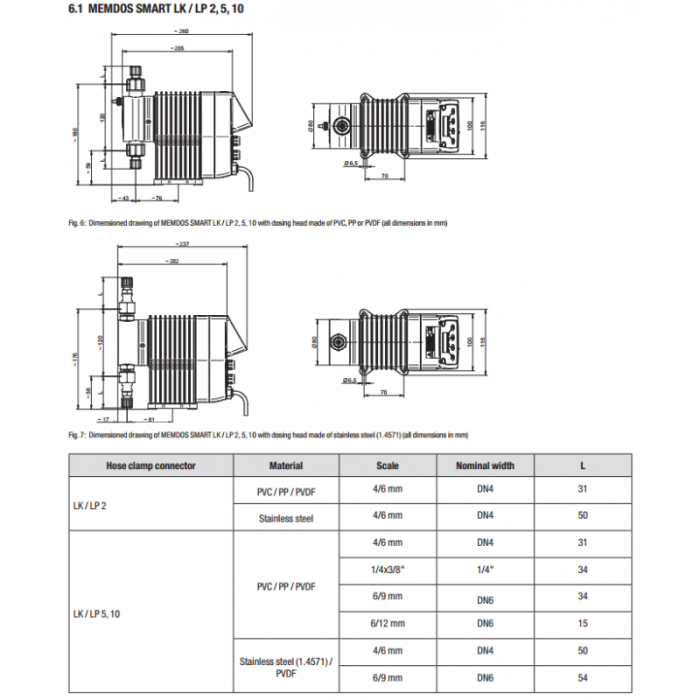

Dimensions 116mm x 211mm x 260mm
Motor Size 25W
Full Load Current (FLC) 0.1-0.23A
Cable Length 1.8m
Max Flow 5.3l/h
Max Head 15bar
Material PVC/G/FPM
