Lutz-Jesco Memdos Smart LP2 Stepper Pump 2.0l/h

Name: Lutz-Jesco Memdos Smart LP2 Stepper Pump 2.0l/h
Brand: Lutz-Jesco
SKU: 10101035
Price: 1391 GBP
Availability: InStock

SKU

10101035

MRRP £1,636.20 + VAT Our price £1,391.00 (+ VAT) Incl. VAT: £1,669.20

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

MEMDOS SMART LP

Precision that inspires

The compact stepper-motor pump, coupled with its intelligent drive concept, combines the big advantages of a solenoid-driven diaphragm dosing pump with the precision of a motor-driven diaphragm dosing pump.
The MEMDOS SMART LP series is available in five capacity ranges. The MEMDOS SMART LP's drive is fully adjustable. For integration into demanding automation networks, a version with an Ethernet-based MODBUS interface is available.

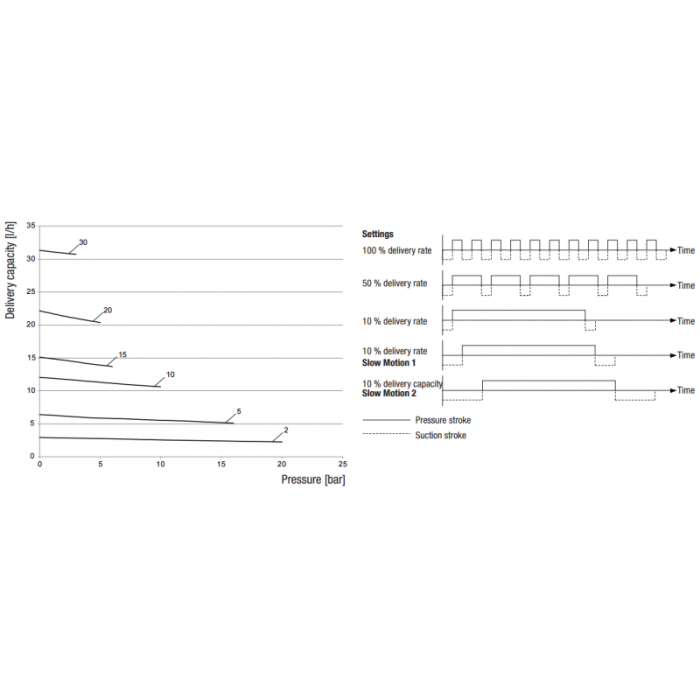

Capacity range 2.4 – 19.2 l/h, up to 20 bar
Power supply 110 – 240 V, 50/60 Hz, IP65, 25 W
Microprocessor controlled drive
Integrated dosing head venting facility (only MEMDOS SMART LP 2, LP 5 and LP 10 with dosing head made of plastic)
Suitable for wall and floor mounting
Material finishes PVC, PP, PVDF and stainless steel
Stroke frequency can be precisely adjusted via the keyboard
Graphic display with multi-language menu
Analogue input and pulse input (increase and reduction)
Level input with early warning and main alarm
Release input for external start/stop
Supply amount displayed in various units
Maximum delivery rate can be limited
Diaphragm replacement programme
2 Slow Motion modes for dosing viscous media
Stroke feedback output
Alarm relay output
Batch dosing with interval and timer functions
Dosing control input
Diaphragm rupture input for leak monitoring
Ethernet interface (optional)
CSA and UL certified

More Information
SKU	10101035
Manufacturers	Lutz-Jesco
Manufacturers Warranty	2 Years
Weight	2.2 Kg

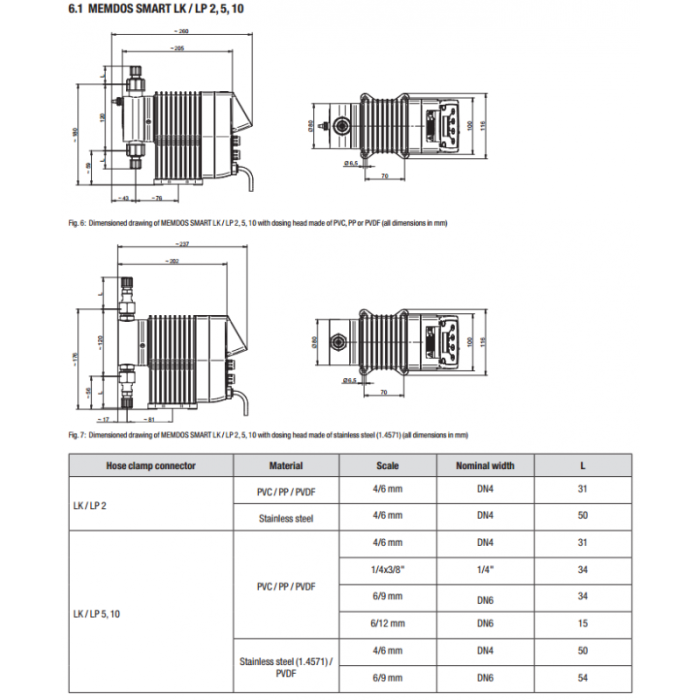

Dimensions	116mm x 211mm x 260mm
Motor Size	25W
Full Load Current (FLC)	0.1-0.23A
Cable Length	1.8m
Max Flow	2l/h
Max Head	16bar
Material	PVC/G/FPM
