Lutz-Jesco Memdos LB60 Motor Pump 63l/h

SKU
10407021
MRRP £1,360.50 + VAT Our price £1,156.00 (+ VAT) Incl. VAT: £1,387.20
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Memdos LB mechanically actuated diaphragm dosing pumps play an important role in the reliable and accurate dosing of liquids in varying processes from municipal water or wastewater through to pool water treatment, CIP systems, AD Biogas applications and effluent treatment plants.

Standard units are available in PVC/FPM with fixed speed, manual stroke length adjustment and 415/3/50 motors. Optionally they can be supplied with 230v or 110v motors, with motors de-rated for VSD and servomotors for automatic stroke length adjustment.

In addition, the MEMDOS LB pumps can also be supplied with an optional double diaphragm

System and can also be supplied in ATEX versions with either conductive PTFE or 316SS wet ends with Ex e or Ex de for zones 2 & 1 respectively.

  • Capacity range 4 to 1020 l/h, up to 16 bar
  • Power supply 230/400 V, 3ph AC, ± 10%, 50 Hz (standard motor)
  • Suitable for aggressive media
  • Materials available: PVC, PP, PVDF, conductive PTFE and stainless steel
  • ATEX versions are available for Zones 1 and 2
  • Double-diaphragm system (optional)
  • Automatic capacity adjustment using a servomotor (ATE)
  • Suitable for VSD frequency converter operation

More Information
SKU 10407021
Manufacturers Lutz-Jesco
Manufacturers Warranty 2 Years
Weight 9.3 Kg

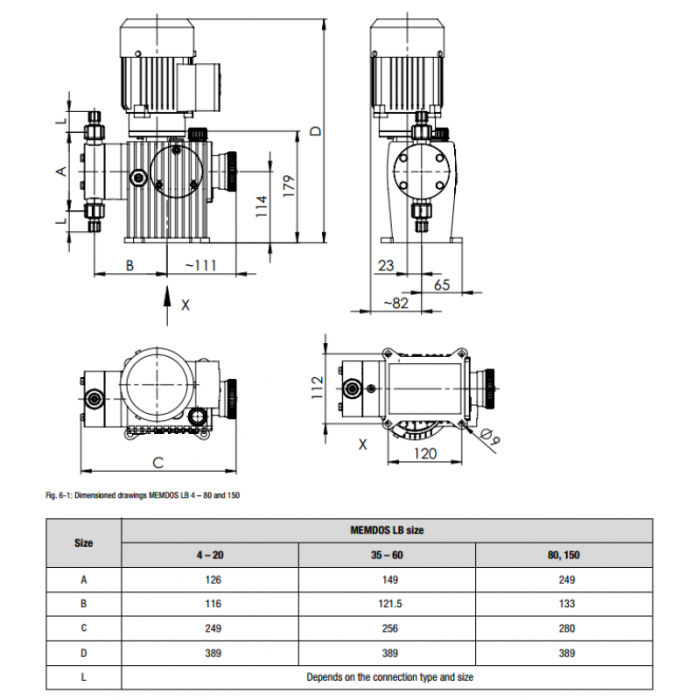

Dimensions 147mm x 256mm x 389mm
Motor Size 0.12KW
Full Load Current (FLC) 0.48A

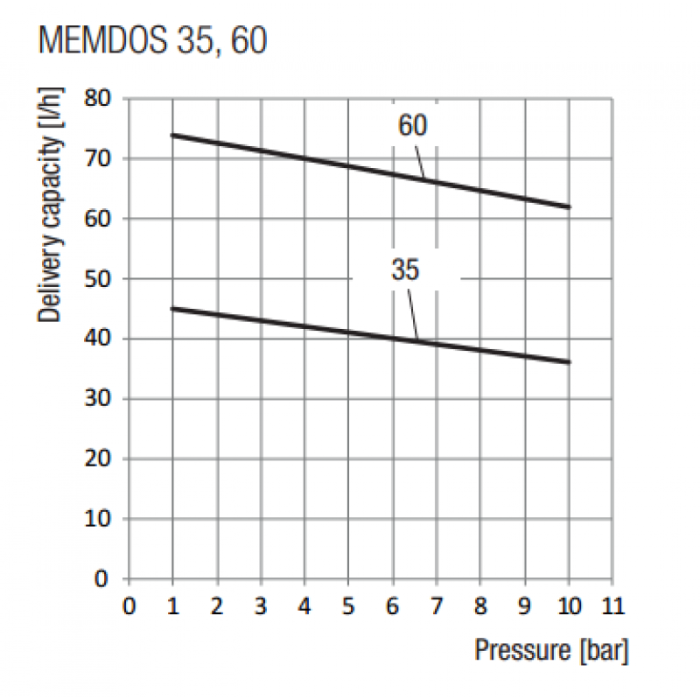

Max Flow 63l/h
Max Head 10bar
Material PVC/G/FPM
