KSB AMA-Porter 503 SE Submersible Waste Water Pump with floatswitch 240 Volt
KSB's range of Ama-Porter floodable, vertical, single-stage submersible waste water pumps made of cast iron, for pumping a variety of applications consisting of waste water and sewage.
The Ama-Porter range have flanged connections and are available in 240V 1Ph 50Hz or 400/415V 3Ph 50Hz models and can be used for the following applications:
- Pumping of waste water containing solid matter or domestic sewage from toilets, washing machines and dishwashers in intermittent operation
- Surface water or rainwater pumping from car parks and uneven surfaces
- Drainage of sumps and cellars liable to flooding
The AMA-Porter 500 series have 2" Flanged female discharge ports.
The AMA-Porter 600 series have 2 1/2" Flanged female discharge ports.
We strongly recommend that the Series 500 Portable Installation Kit is purchased with this Pump. The pump is shown with installation kit fitted, which comprises of hosetail, feet and fixings.

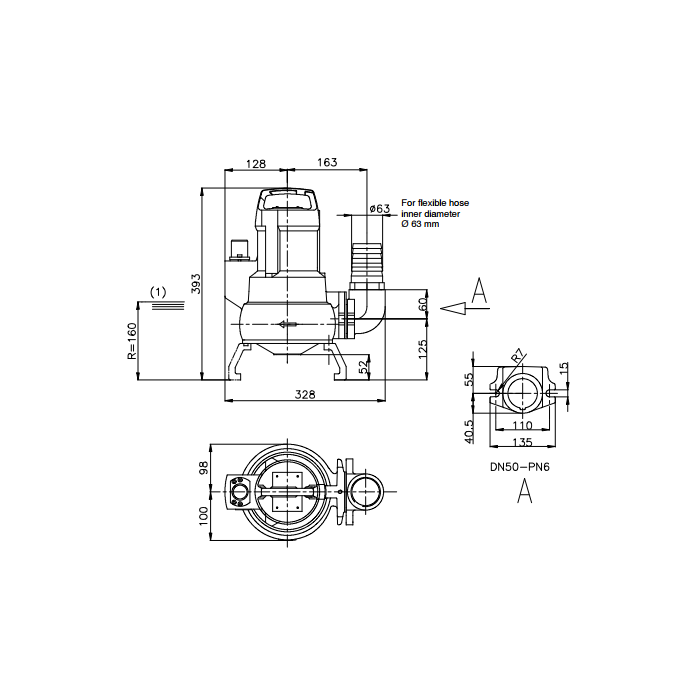

|Dimensions||393mm High x 328mm Deep x 198mm Wide|
|Manufacturers Warranty||2 Years|
|Connection Type||2 Inch Flanged Female|
|Voltage||240V 1Ph 50Hz|

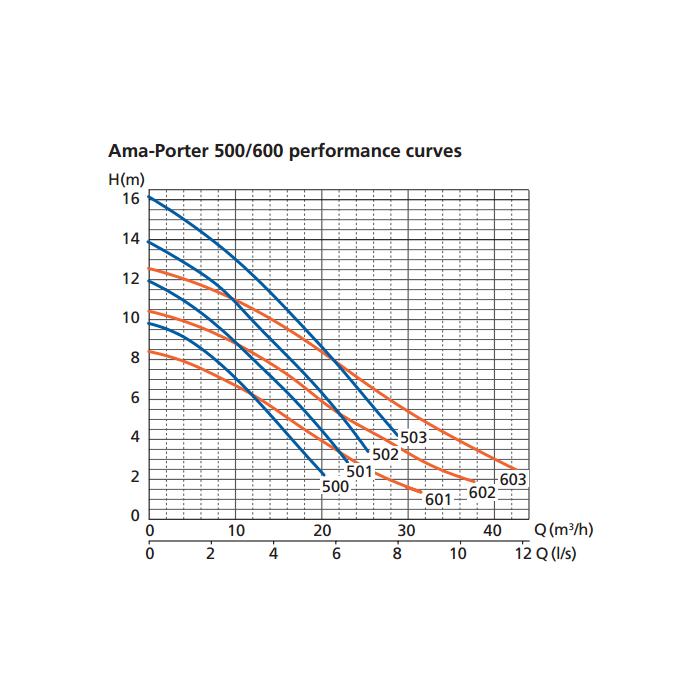

|Max Flow||29 m3/hr|
|Full Load Current (FLC)||8.2A|
|Cable Length||10 Metres|
