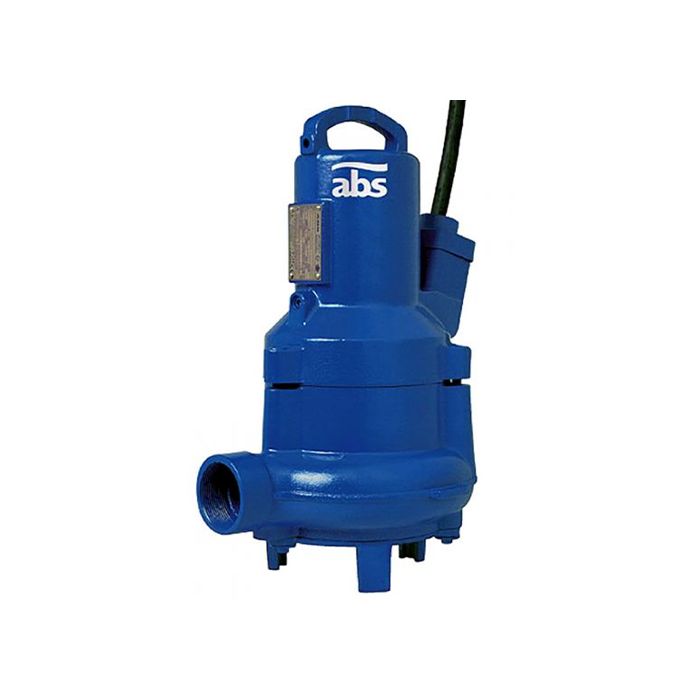

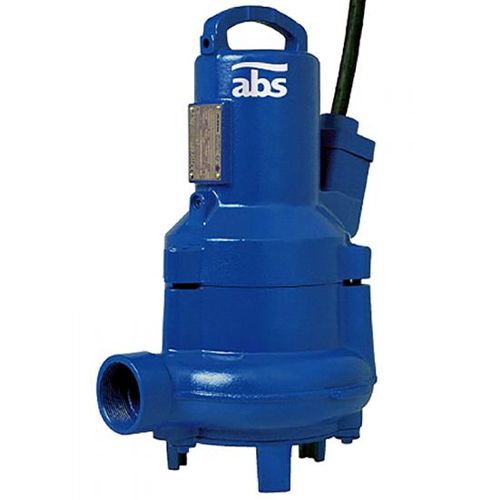

ABS AS0530.110-S12/2W-50 Submersible Wastewater Pump 240V
* Available where Guaranteed Stock Icon Appears Below
ABS AS0530.110-S12/2W-50 Submersible Wastewater Pump 240V
ABS AS submersible pumps are robust, reliable and range from 1 to 3 kW for pumping wastewater and sewage from buildings and sites. The pumps have water pressure-tight, encapsulated, fully flood-proof motors in standard and explosion-proof versions.
Applications:
- AS submersible pumps have been designed for the economic and reliable pumping of wastewater and sewage, and can be used with automatic coupling system for fixed applications or as portable units
- The 2-inch version is especially suitable for pumping wastewater from underground garages
- With vortex hydraulics the AS is particularly suitable for fluids containing fibrous or abrasive matter and for sewage
- Maximum allowable temperature of the medium is 40 °C, or short term to 60 °C (max. 5 minutes)
Features:
- Hydraulic design with vortex impeller
- High reliability even under long term operating conditions
- For wastewater and sewage containing solid or fibrous particles
- Standard version
- Oil-lubricated lip seal at motor side
- High-quality sealing unit using a silicon carbide mechanical seal between the motor and the hydraulic section, ensuring independent rotation direction and providing resistance to temperature shock
- Stainless steel rotor shaft supported in lubricated-for-life ball bearings
- Option of automatic seal and temperature monitoring
- Available for transportable or fixed installation
| SKU | GM1211113111111 |
|---|---|
| Manufacturers | ABS |
| Manufacturers Warranty | 1 Year |
| Weight | 31.0 Kg |

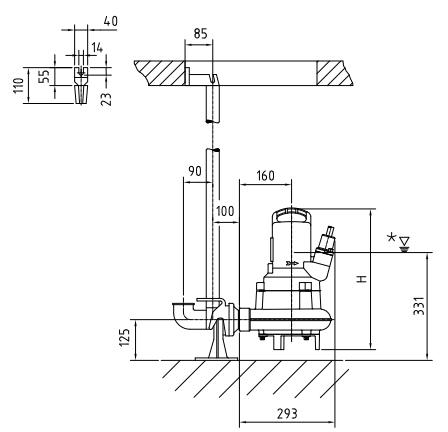

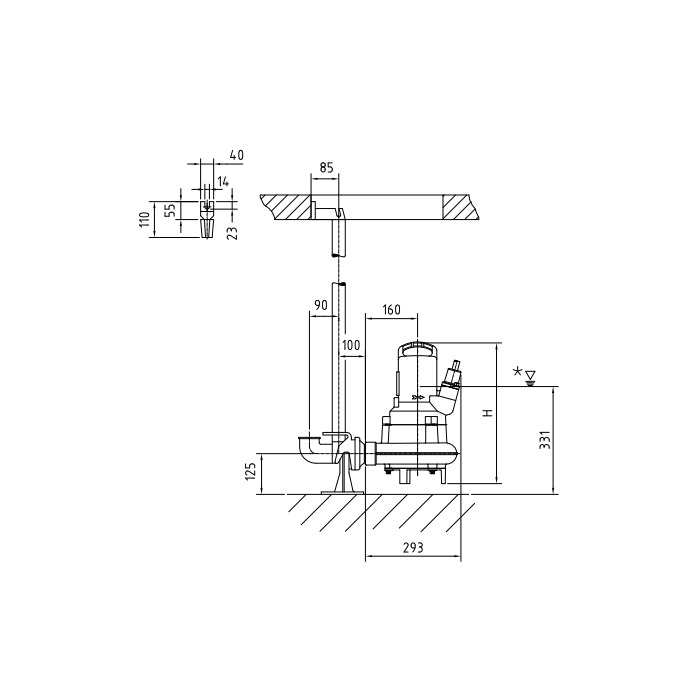

| Dimensions | 432mm (h) x 293mm (w) |
| Connection Type | 2 Inch BSP Female |
| Motor Size | P2 = 1.20kW |
| Full Load Current (FLC) | 8.22A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 2900rpm |
| Cable Length | 10 metres |

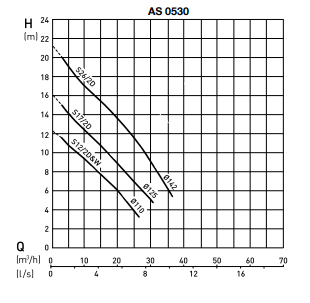

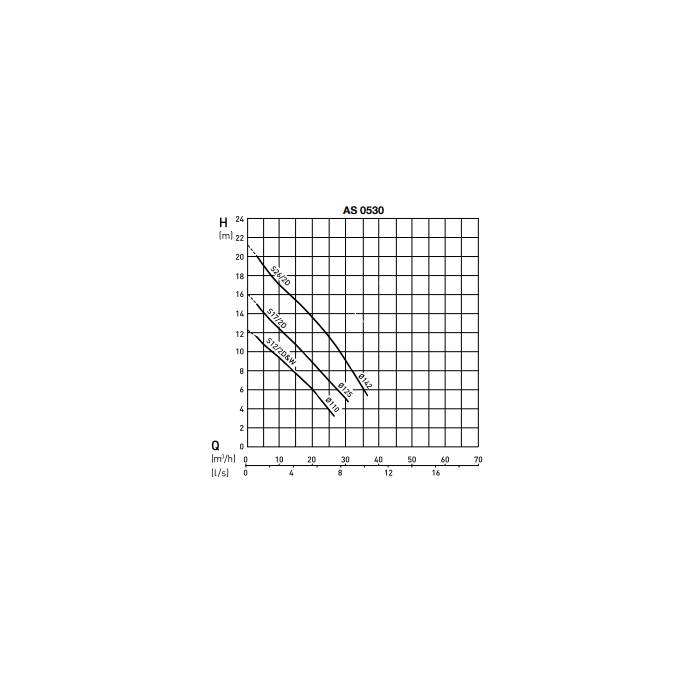

| Max Flow | 22m3/hr |
| Max Head | 12m |
| Max Temperature | 40°C, or short term to 60°C (max. 5 minutes) |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
