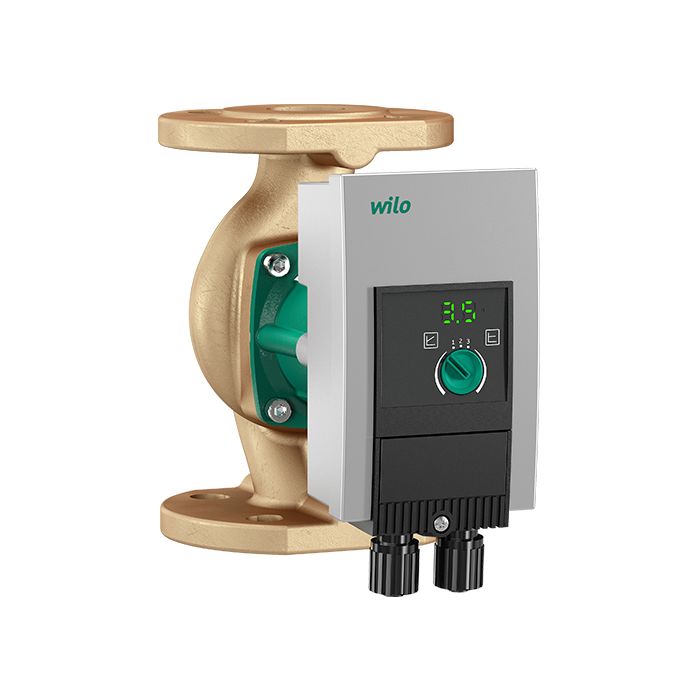

Wilo Yonos MAXO-Z 40/0,5-12 250 PN6/PN10 Single Head Circulating Pump 240v

Name: Wilo Yonos MAXO-Z 40/0,5-12 250 PN6/PN10 Single Head Circulating Pump 240v
Brand: Wilo
SKU: 2175543
Price: 1908 GBP
Availability: InStock

SKU

2175543

MRRP £2,765.00 + VAT Our price £1,908.00 (+ VAT) Incl. VAT: £2289.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Gasket Set Option

Choose Bellow Set Option

Installation Bundle

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Wilo Yonos MAXO-Z 40/0,5-12 250 PN6/PN10 Single Head Circulating Pump 240v - 2175543

High-efficiency pump Wilo-Yonos MAXO-Z Electronically Controlled

Glandless circulator, synchronous motor according to ECM technology and integrated power control for continuous differential pressure control. Can be used for all domestic hot water circulation systems in industry and building services.

Standard-equipped with:

Preselectable control modes for optimum load adjustment: Δp-c (constant differential pressure), Δp-v (variable differential pressure)
3 speed stages (n = constant)
LED for setting the setpoint and displaying error messages
Electrical connection with the Wilo plug
Fault signal light and contact for collective fault signal

For flange-end pumps - flange versions:

Standard version for DN 32 to DN 65 pumps: Combination flange PN 6/10 (flange PN 16 in accordance with EN 1092-2) for counter flanges PN 6 and PN 10

More Information
SKU	2175543
Manufacturers	Wilo
Manufacturers Warranty	2 Years
Weight	18.4 Kg
Dimensions	326mm (H) x 250mm (L) x 142mm (D)
Connection Type	40mm Flanged
Motor Size	15-550watt
Full Load Current (FLC)	2.4A Rated Current
Voltage	240V 1Ph 50Hz
Max Flow	24.8m3/hr
Max Head	13mtr
Max Temperature	110oC
Material	Bronze
Impeller Material	PPS-GF40
