Wilo Yonos MAXO-Z 25/0,5-10 180 PN10 Single Head Circulating Pump 240v

SKU
2175539
MRRP £1,610.00 + VAT Our price £1,111.00 (+ VAT) Incl. VAT: £1,333.20
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

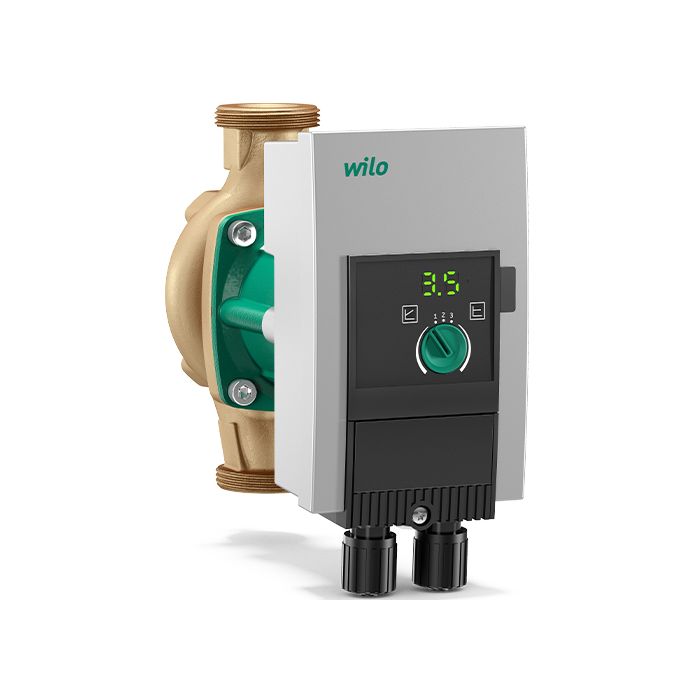

Wilo Yonos MAXO-Z 25/0,5-10 180 PN10 Single Head Circulating Pump 240v - 2175539

High-efficiency pump Wilo-Yonos MAXO-Z Electronically Controlled

Glandless circulator, synchronous motor according to ECM technology and integrated power control for continuous differential pressure control. Can be used for all domestic hot water circulation systems in industry and building services.

Standard-equipped with:

  • Preselectable control modes for optimum load adjustment: Δp-c (constant differential pressure), Δp-v (variable differential pressure)
  • 3 speed stages (n = constant)
  • LED for setting the setpoint and displaying error messages
  • Electrical connection with the Wilo plug
  • Fault signal light and contact for collective fault signal



For flange-end pumps - flange versions:

  • Standard version for DN 32 to DN 65 pumps: Combination flange PN 6/10 (flange PN 16 in accordance with EN 1092-2) for counter flanges PN 6 and PN 10
More Information
SKU 2175539
Manufacturers Wilo
Manufacturers Warranty 2 Years
Weight 5.0 Kg
Connection Type 1 1/2 Inch BSP
Motor Size 5-190watt
Full Load Current (FLC) 1.5A Rated Current
Voltage 240V 1Ph 50Hz
Max Flow 9.6m3/hr
Max Head 10.8mtr
Max Temperature 110oC
Material Bronze
Impeller Material PPS-GF40
