TPD 50-120/4 A F A BQQE 1.1kW Single Stage Twin Head In Line 4 Pole 240v

MRRP £3,727.00 + VAT Our price £2,237.00 (+ VAT) Incl. VAT: £2,684.40
Order within
for next day delivery i

Grundfos TPD 50-120/4 A F A BQQE Single Stage Twin Head In-Line Pump with 4 Pole 240V 1Ph 50Hz, 1.1kW Motor and flanged pump connections.

Single-stage centrifugal in-line twin-head pump:

  • neck rings and impeller made of cast iron
  • cataphoresis treatment
  • shell coupling
  • top-pull-out principle for easy maintenance
  • optimized hydraulics
  • in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
  • corrosion resistant maintenance-free mechanical shaft seal.
  • 50mm flanged


Delivery on this Pump is 3 weeks.

More Information
SKU 98760129
Manufacturers Grundfos
Manufacturers Warranty 2 Years
GTIN 5712600991149
Weight 149.0 Kg

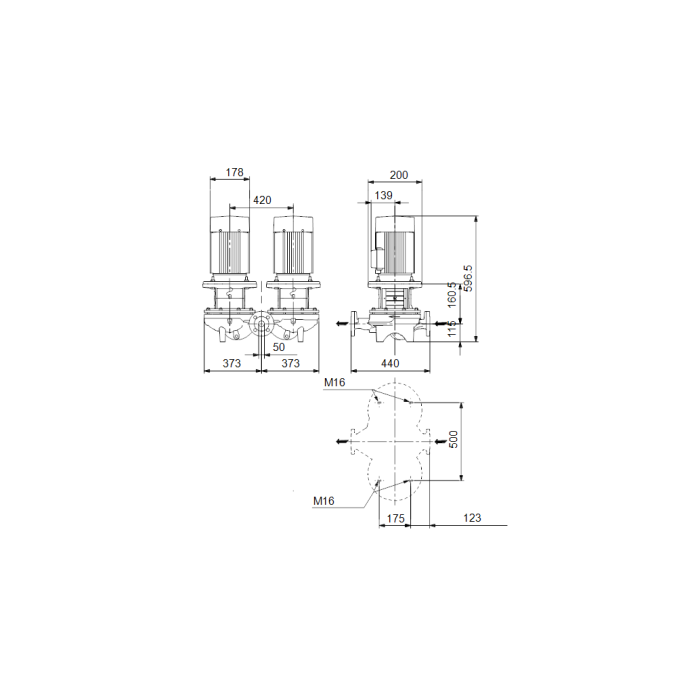

Dimensions 597mm (h) x 746mm (w) x 440mm (d)
Connection Type 50mm Flanged
Motor Size 2 x 1.1 kW
Full Load Current (FLC) 7 A
Voltage 240V 1Ph 50Hz
RPM 1450rpm
Max Flow 23m3/hr
Max Head 12m
Max Temperature 120 degrees C
Material Cast Iron
Impeller Material Cast Iron
