TP 40-80/2 S Single Stage Single Head Stainless Steel for Hot Water In Line 0.25kW 2 Pole 240V

Name: TP 40-80/2 S Single Stage Single Head Stainless Steel for Hot Water In Line 0.25kW 2 Pole 240V
Brand: Grundfos
SKU: 98346645
Price: 1640 GBP
Availability: InStock

SKU

98346645

MRRP £2,827.00 + VAT Our price £1,640.00 (+ VAT) Incl. VAT: £1,968.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos TP 40-80/2 S A F I BQQE Single Stage Single Head Stainless Steel for Hot Water Service In-Line Pump with 2 Pole 240V 1Ph 50Hz, 0.25kW Motor and flanged pump connections.

Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter.:

neck rings and impeller made of composite
The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework.
The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756.
The pump is fitted with a fan-cooled asynchronous motor.
corrosion resistant maintenance-free mechanical shaft seal.
40mm flanged connection

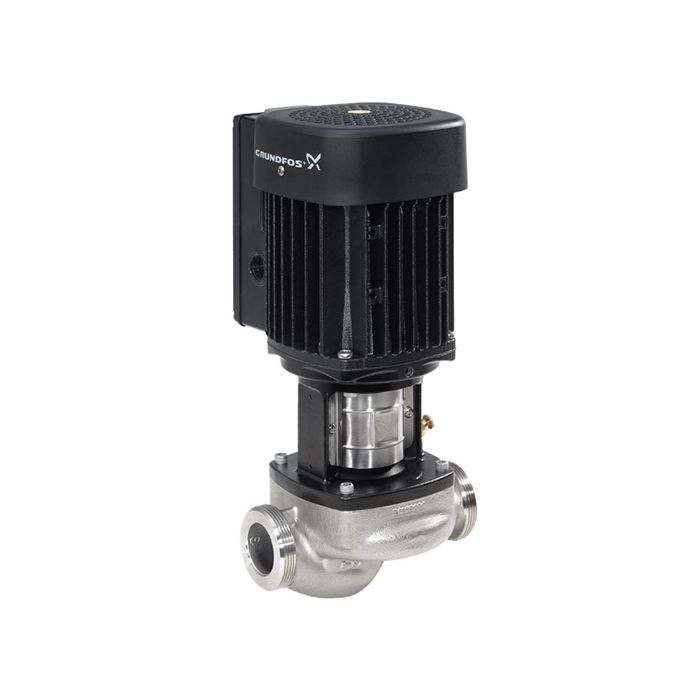

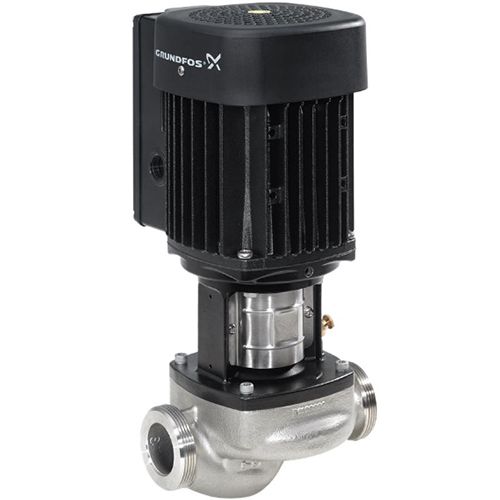

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU	98346645
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5711493380467
Weight	14.7 Kg

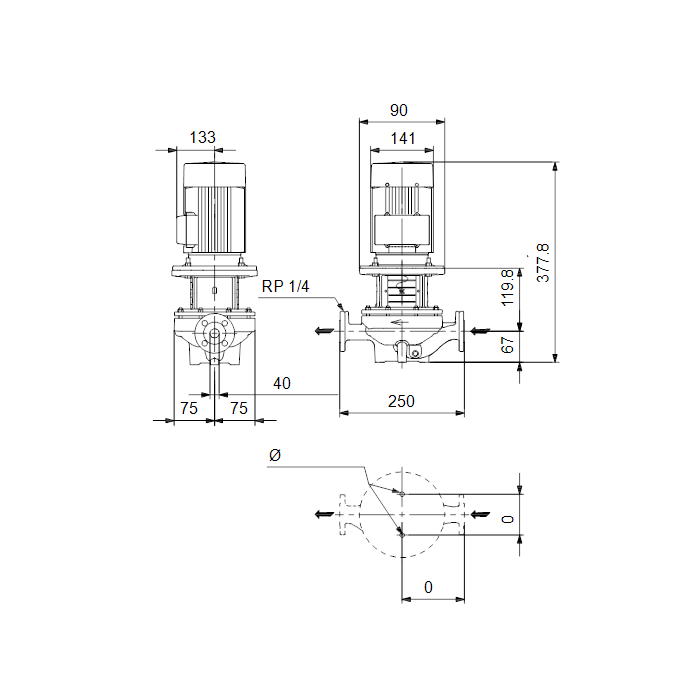

Dimensions	378mm (h) x 250mm (w) x 150mm (d)
Connection Type	40mm Flanged
Motor Size	0.25 kW
Full Load Current (FLC)	1.75-2.04 A
Voltage	240V 1Ph 50Hz
RPM	2830rpm
Max Flow	11m3/hr
Max Head	8m
Max Temperature	120 degrees C
Material	Stainless Steel
Impeller Material	Composite
