TP 32-90/2R A O A BQQE 0.37kW Single Stage Single Head In Line 2 Pole 415v

Name: TP 32-90/2R A O A BQQE 0.37kW Single Stage Single Head In Line 2 Pole 415v
Brand: Grundfos
SKU: 98346582
Price: 667 GBP
Availability: InStock

SKU

98346582

MRRP £1,150.00 + VAT Our price £667.00 (+ VAT) Incl. VAT: £800.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos TP 32-90/2R A O A BQQE Single Stage Single Head In-Line Pump with 2 Pole 415V 3Ph 50Hz, 0.37kW Motor and threaded pump connections.

Single-stage centrifugal in-line single-head pump:

neck rings and impeller made of stainless steel
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal.
G 2" Outlet
Optional union sets available, see accessories below for options.

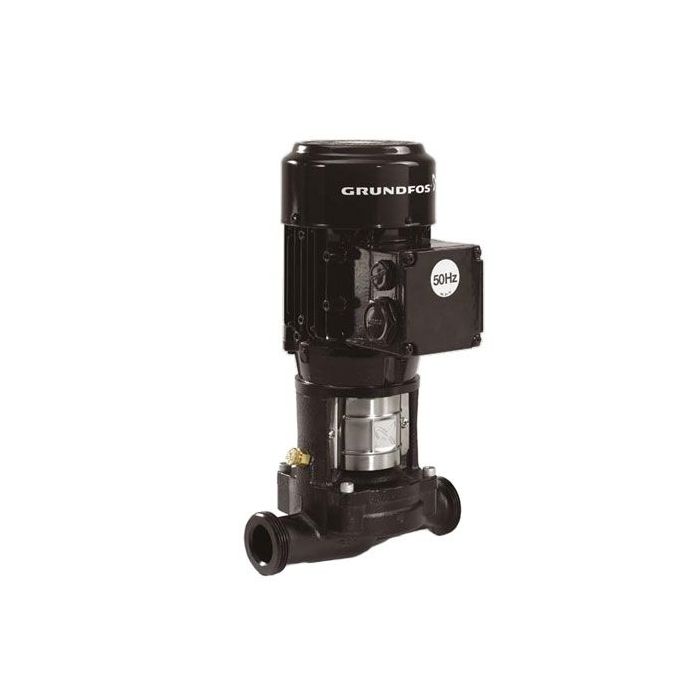

PICTURE FOR ILLUSTRATION PURPOSES ONLY

More Information
SKU	98346582
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5711493379836
Weight	11.5 Kg
Dimensions	357mm (h) x 180mm (w) x 128mm (d)
Connection Type	2 Inch BSP Male
Motor Size	0.37kW
Full Load Current (FLC)	1.00 A
Voltage	415V 3Ph 50Hz
RPM	2865rpm
Max Flow	13m3/hr
Max Head	9m
Max Temperature	120 degrees C
Material	Cast Iron
Impeller Material	Composite PES/PP 30% GF
