TP 32-90/2R A O A BQQE 0.37kW Single Stage Single Head In Line 2 Pole 240v
* Available where Guaranteed Stock Icon Appears Below
Grundfos TP 32-90/2R A O A BQQE Single Stage Single Head In-Line Pump with 2 Pole 240V 1Ph 50Hz, 0.37kW Motor and threaded pump connections.
Single-stage centrifugal in-line single-head pump:
- neck rings and impeller made of stainless steel
- cataphoresis treatment
- shell coupling
- top-pull-out principle for easy maintenance
- optimized hydraulics
- in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
- corrosion resistant maintenance-free mechanical shaft seal.
- G 2 discharge port
- Optional union sets available, see accessories below for more options

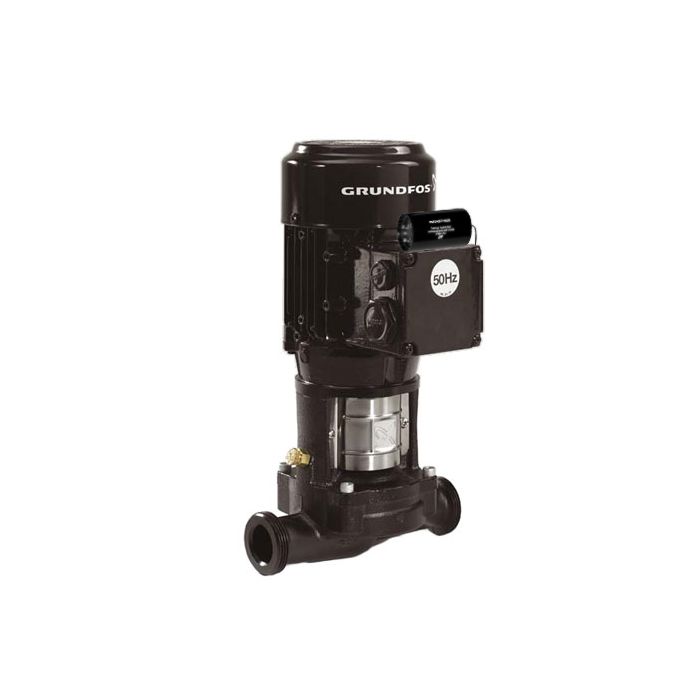

IMAGE FOR ILLUSTRATION PURPOSES ONLY.
| SKU | 98299122 |
|---|---|
| Manufacturers | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5711492694640 |
| Weight | 13.1 Kg |
| Dimensions | 357mm x 180mm x 128mm |
| Connection Type | 2 Inch BSP Male |
| Motor Size | 0.37kW |
| Full Load Current (FLC) | 2.70 A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 2865rpm |
| Max Flow | 13m3/h |
| Max Head | 9m |
| Max Temperature | 120 degrees C |
| Material | Cast Iron |
| Impeller Material | Composite PES/PP 30% GF |
