TP 32-30/4 B Single Stage Single Head Bronze for Hot Water In Line 0.12kW 4 Pole 415V

SKU
97952248
MRRP £2,079.00 + VAT Our price £1,206.00 (+ VAT) Incl. VAT: £1,447.20
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

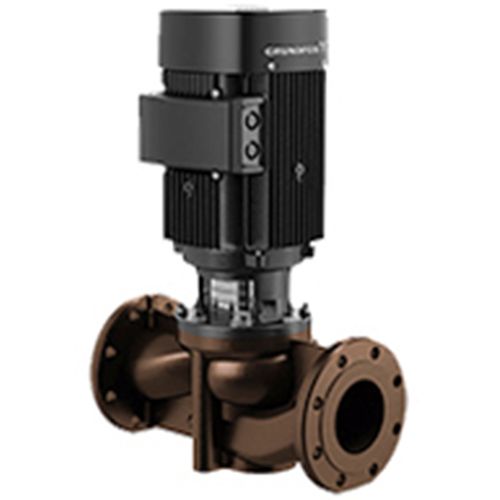

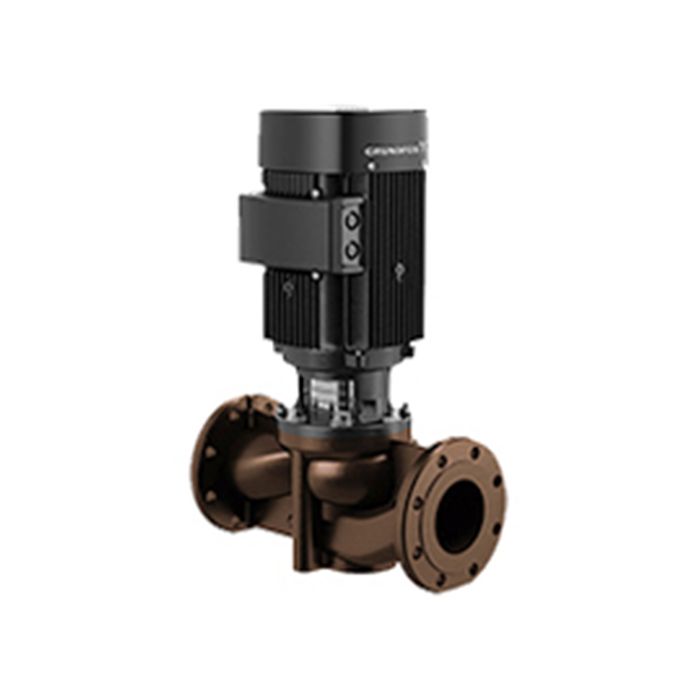

Grundfos TP 32-30/4 B A F Z BQQE Single Stage Single Head Bronze for Hot Water Service In-Line Pump with 4 Pole 415V 3Ph 50Hz, 0.12kW Motor and flanged pump connections.

  • Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter.
  • Suitable for heating systems, air conditioning and cooling systems, domestic water systems, ground-source heat pump systems and solar heating systems.
  • Neck rings and impeller made of stainless steel.
  • The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework.
  • The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756.
  • The pump is fitted with a fan-cooled asynchronous motor.
  • Corrosion resistant maintenance-free mechanical shaft seal.
  • 32mm flanged connection.

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU 97952248
Manufacturers Grundfos
Manufacturers Warranty 2 Years
GTIN 5710627023447
Weight 22.1 Kg

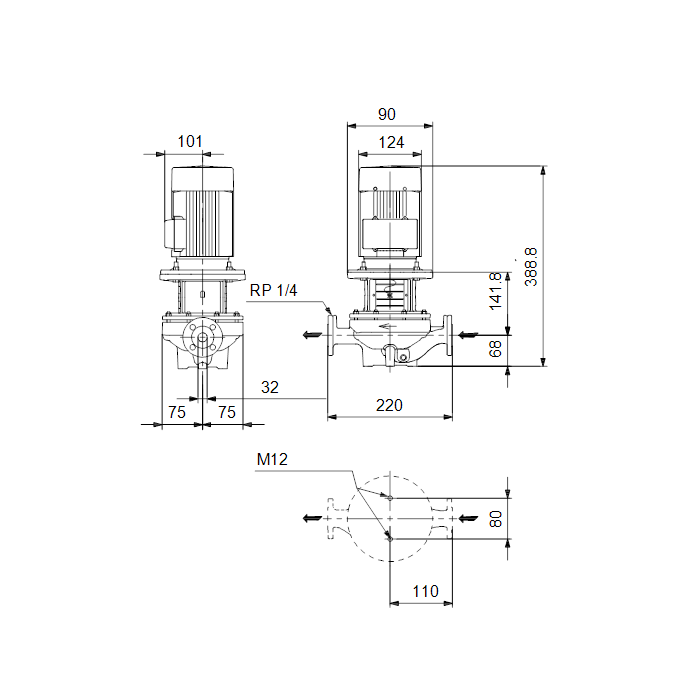

Dimensions 389mm (h) x 220mm (w) x 150mm (d)
Connection Type 32mm Flanged
Motor Size 0.12 kW
Full Load Current (FLC) 0.42 A
Voltage 415V 3Ph 50Hz
RPM 1400rpm
Max Flow 9.5m3/hr
Max Head 3m
Max Temperature 120 degrees C
Material Bronze
Impeller Material Stainless Steel
