TP 150-60/6 A F A BQQE 2.2kW Single Stage Single Head In Line 6 Pole 415v

Name: TP 150-60/6 A F A BQQE 2.2kW Single Stage Single Head In Line 6 Pole 415v
Brand: Grundfos
SKU: 96109937
Price: 3361 GBP
Availability: InStock

SKU

96109937

MRRP £5,794.00 + VAT Our price £3,361.00 (+ VAT) Incl. VAT: £4033.20

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos TP 150-60/6 A F A BQQE Single Stage Single Head In-Line Pump with 6 Pole 415V 3Ph 50Hz, 2.2kW Motor and flanged connections.

Single-stage centrifugal in-line single-head pump:

neck rings and impeller made of cast iron
cataphoresis treatment
shell coupling
top-pull-out principle for easy maintenance
optimized hydraulics
in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
corrosion resistant maintenance-free mechanical shaft seal.
RP 150mm flanged Outlet

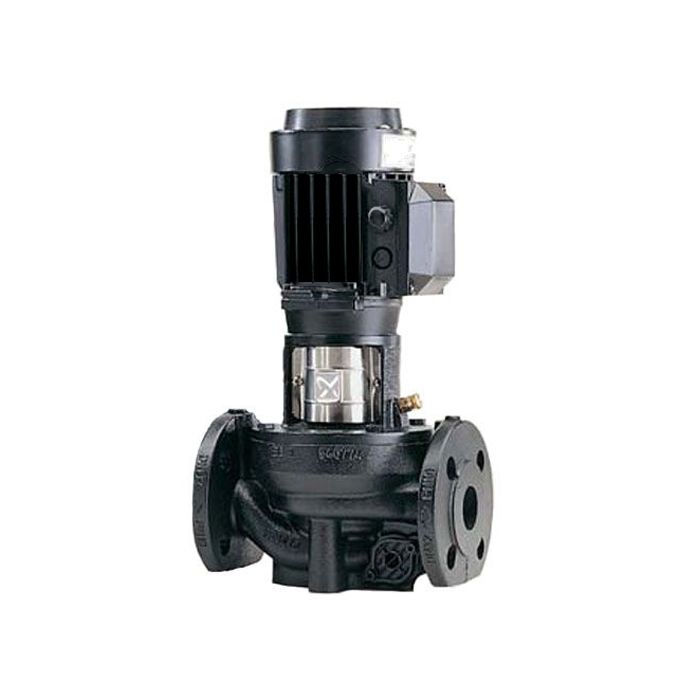

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

More Information
SKU	96109937
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5700396989228
Weight	260.0 Kg

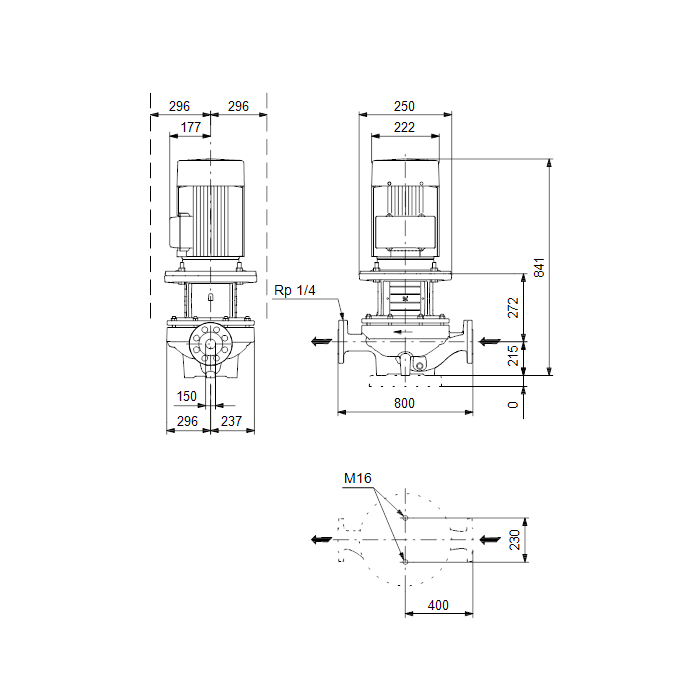

Dimensions	841mm (h) x 800mm (w) x 533mm (d)
Connection Type	150mm Flanged
Motor Size	2.2kW
Full Load Current (FLC)	5,30-4,80 A
Voltage	415V 3Ph 50Hz
RPM	970rpm
Max Flow	163m3/hr
Max Head	6m
Max Temperature	120 degrees C
Material	Cast Iron
Impeller Material	Cast Iron
