Stuart Turner HM 0302 Horizontal Multistage Pump 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

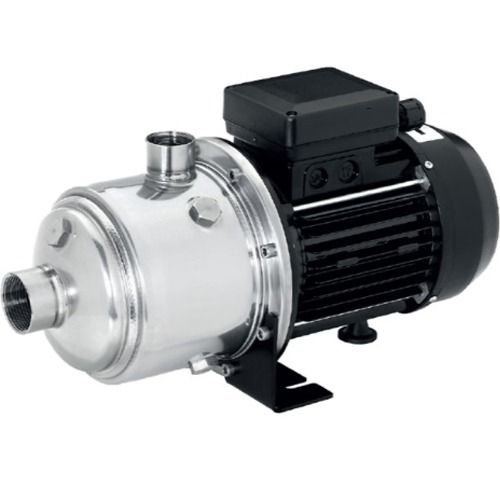

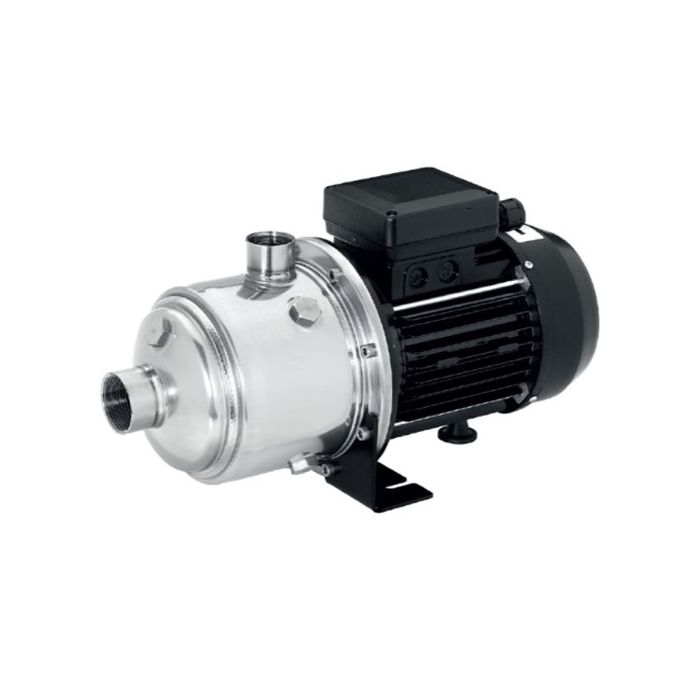

Stuart Turner HM 0302 Horizontal Multistage Pump 240v - 46734
A range of 3m3/hour nominal flow horizontal multistage pumps featuring a compact, closecoupled design and heavy duty oversized motor shaft. Featuring AISI 304 stainless steel pump head construction, these robust and durable pumps are available in single phase and three phase options. Capable of flow rates up to 4.5m³/h and models available providing up to 90.5 metres head, these pumps are suitable for use in a wide range of water boosting applications.
Features:
- Multistage centrifugal pump
- Flow rates up to 4.5 m³/h
- Heads up to 90.5 metres
- Single phase and three phase options
- Compact, close-coupled design
- AISI 304 stainless steel pump head housing, shaft, impellers and diffusers
- Extended life mechanical seal
- Continuously rated induction motor
- Easy maintenance
- WRAS Approved Product
- 1 year warranty
Applications:
- Domestic and commercial water supply
- Industrial systems, plant and processing
- Wash down units
- Water distribution
- Irrigation and rainwater recovery
- Temperature control and air conditioning systems
| SKU | 46734 |
|---|---|
| Manufacturers | Stuart Turner |
| Manufacturers Warranty | 1 Year |
| GTIN | 5050400467342 |
| Weight | 11.2 Kg |

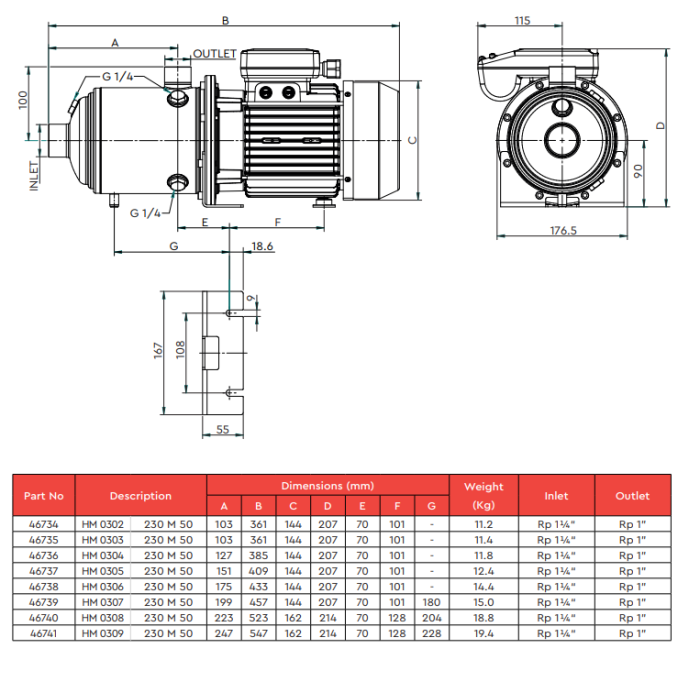

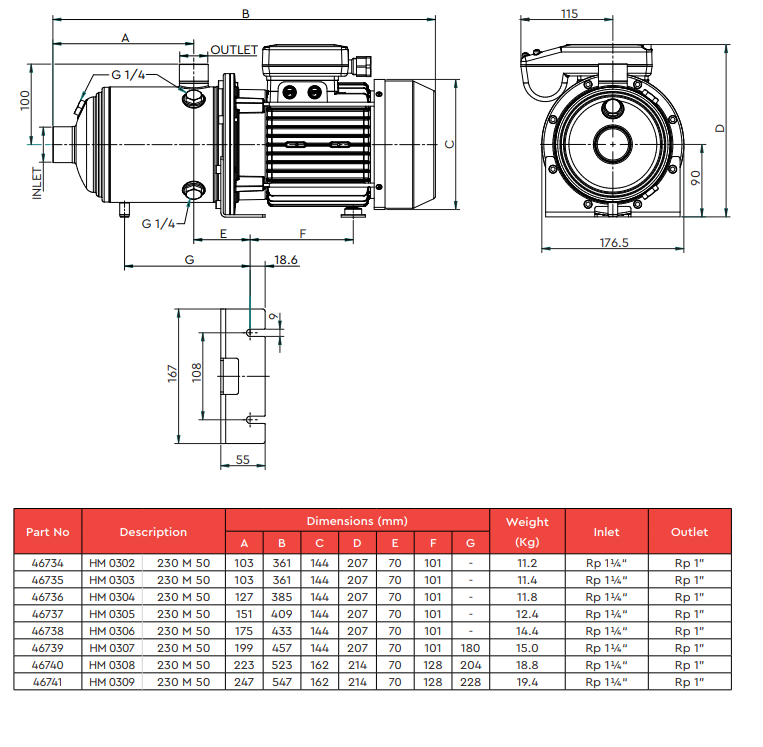

| Dimensions | 207mm (h) x 361mm (d) x 176mm (w) |
| Inlet Dimension | 1 1/4" BSPF |
| Discharge Dimension | 1" BSPF |
| Motor Size | 0.33kW |
| Full Load Current (FLC) | 2.5A |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 5m3/hr |
| Max Head | 23m |
| Max Pressure | 10 Bar |
| Max Temperature | -15 to +90 °C (110 °C for industrial applications) |
| Material | Stainless Steel 304 |
| Seal Type | Ceramic Alumina/Carbon Graphite/AISI 316/EPDM |
| Impeller Material | AISI 304 stainless steel |
