Stuart Turner Aquaboost IBolt 0904 2H-CMT/24 Horizontal Twin Booster Set

SKU
47357
MRRP £4,442.00 + VAT Our price £2,843.00 (+ VAT) Incl. VAT: £3,411.60
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Aquaboost IBolt 09 Range - Twin Booster Pump Set

The Aquaboost IBolt range of twin pump booster sets features two horizontal multistage pumps controlled by air-cooled variable speed frequency inverters mounted directly on the pump motors. The twin pump 09 range included 0903, 0904 and 0906 pump variants capable of delivering flow rates up to 15m3/hr (per pump) and capable of producing head pressures of up to 7.1 bar.

Features:

  • Flow rates up to 30m3/hr
  • Head pressure up to 3.6 bar
  • 304 stainless steel pumps
  • Dry run protection
  • 304/316 stainless steel manifold assembly
  • Nickel plated WRAS approved ball valves
  • Union fittings on suction and discharge
  • WRAS approved 24 litre pressure vessel
  • Air cooled inverters
  • Glycerine filled pressure gauge
  • Powder coated base plate
  • BMS volt free contacts
More Information
SKU 47357
Manufacturers Stuart Turner
Manufacturers Warranty 2 Years
GTIN 5050400473572
Weight 63.0 Kg

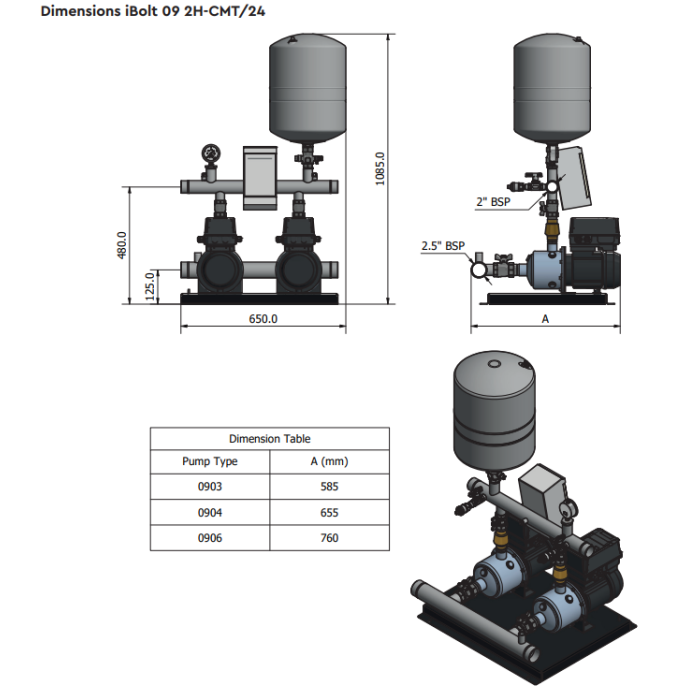

Dimensions 1085mm (h) x 650mm (w) x 655mm (d)
Inlet Dimension 2 1/2" BSP
Discharge Dimension 2" BSP
Full Load Current (FLC) 12 A
Voltage 240V 1Ph 50Hz

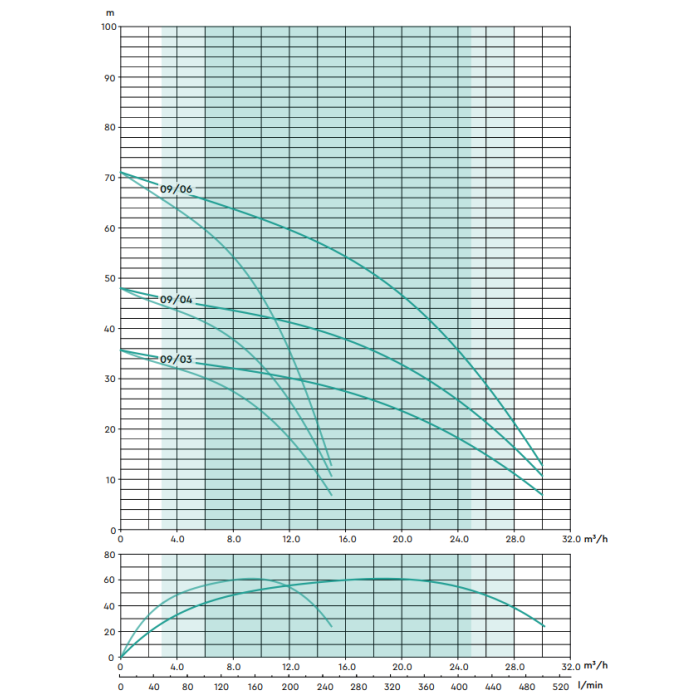

Max Flow 30 m3/h (15 m3 hr per pump)
Max Head 4.8 bar
Max Temperature 40°C
Material Stainless Steel
Seal Type EPDM / Carbon / Ceramic
Impeller Material Stainless steel
