Stuart Turner Aquaboost iBolt Horizontal Single 0506 1H-CMT/8

SKU
47385
MRRP £1,865.00 + VAT Our price £1,194.00 (+ VAT) Incl. VAT: £1,432.80
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

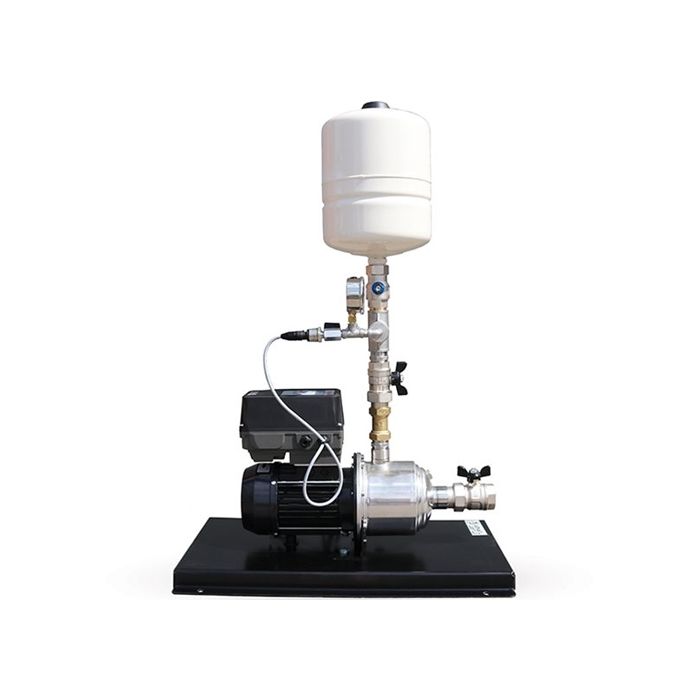

iBolt 05 Range - Single Pump Booster Set AQUABOOST

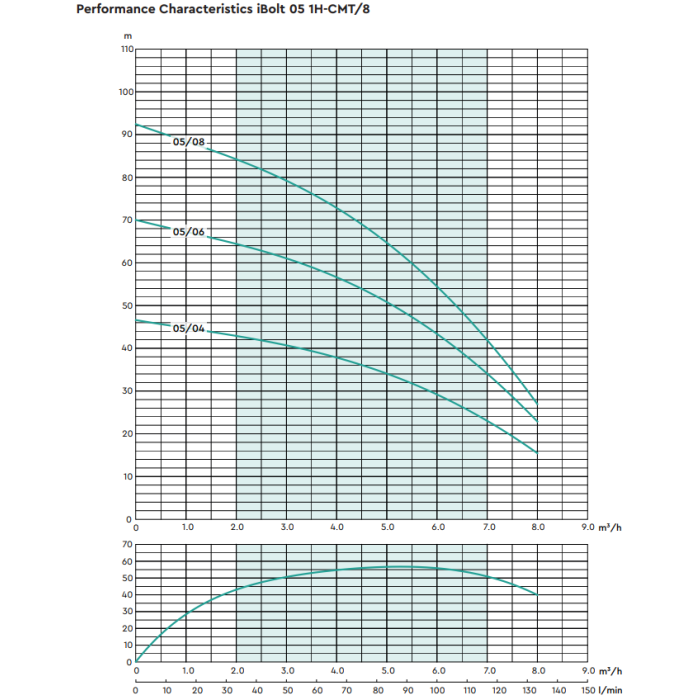

The Aquaboost iBolt range of single pump booster sets features a horizontal multistage pump controlled by an air cooled variable speed frequency inverter mounted directly on the pump motor. The single pump 05 range includes 0504, 0506 and 0508 pump variants capable of delivering flow rates up to 8.0 m³/hour and capable of producing head pressures of up to 9.2 bar.

Features
• Flow rates up to 8.0 m3/h
• Head pressure up to 9.2 bar
• Dry run protection
• 304 stainless steel pump
• Stainless steel / brass discharge fittings
• Nickel plated WRAS approved ball valves
• Air cooled inverter
• BMS volt free contacts
• Glycerine filled pressure gauge
• Brass non-return valve
• WRAS approved union ball valves
• WRAS approved 8 litre pressure vessel

More Information
SKU 47385
Manufacturers Stuart Turner
Manufacturers Warranty 2 Years
Weight 29.0 Kg
Full Load Current (FLC) 5.5 A
Voltage 240V 1Ph 50Hz
Max Flow 8.0 m3/h
Max Head 7.0 bar
Max Pressure 1 bar
Max Temperature 40°C
Material Stainless Steel
Seal Type EPDM/Carbon/Ceramic
Country of Manufacture United Kingdom
