Stuart Turner Aquaboost CH 4-40 PS Pressure Set 240Volt (F120-40)

SKU
46602
MRRP £1,323.00 + VAT Our price £847.00 (+ VAT) Incl. VAT: £1,016.40
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

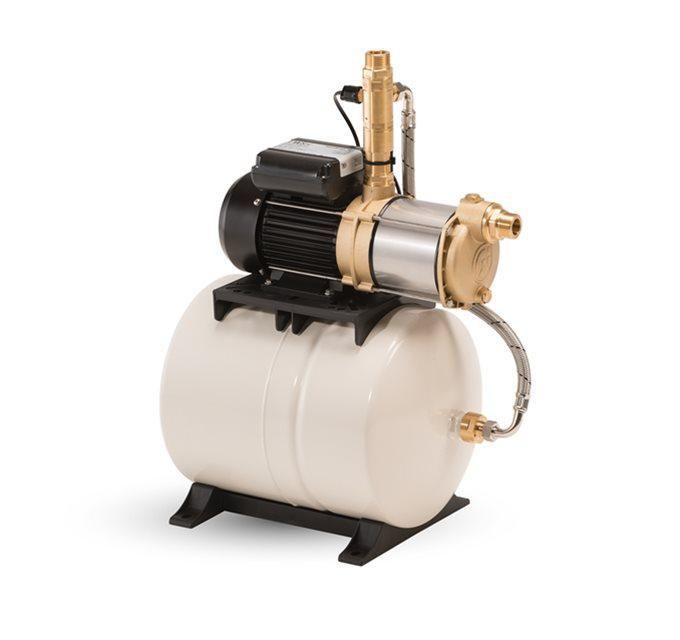

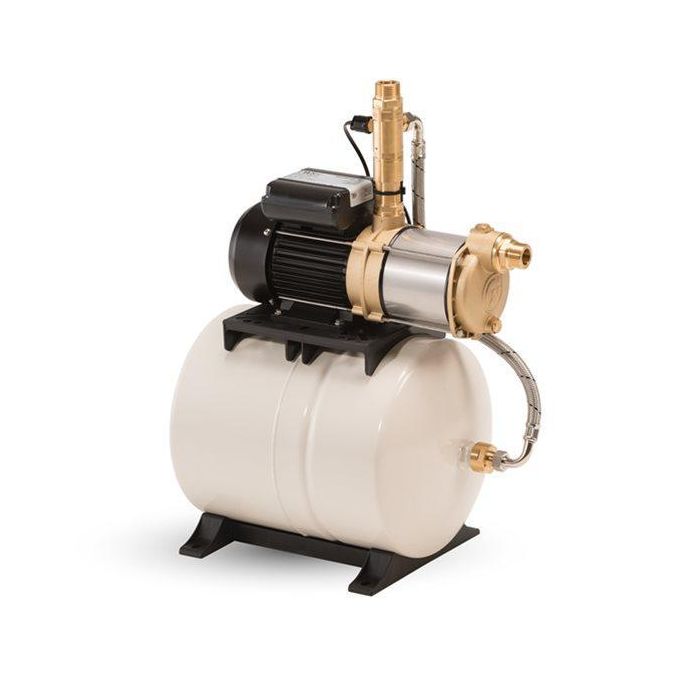

Centrifugal Pressure Set



Designed to meet system demands in larger domestic and light commercial applications. The CH multistage pump is mounted on to a WRAS Approved 24 litre diaphragm tank providing a buffer of pressurised stored water. CH Pressure sets are ideally suited to boosting stored cold water supplies to un-vented hot water cylinders/combination boilers. Supplied with G 1 flexible hoses and adaptors.



Key Features

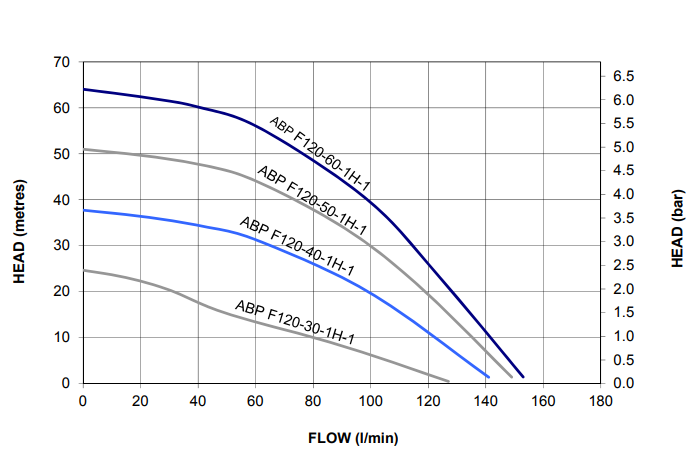

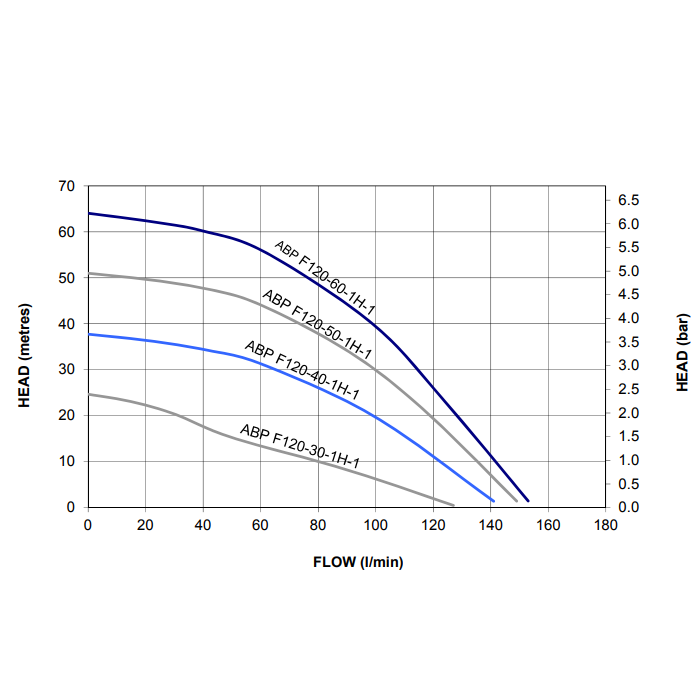

  • Flow rates up to 141 litres per minute and heads up to 37 metres
  • Fully automatic control
  • No pulsing during operation
  • Durable brass and stainless steel construction
  • Multistage centrifugal pump
  • Extended life mechanical seal
  • Quiet operation
  • WRAS Approved Product
  • Continuously rated induction motor
  • Dry run protection
  • Includes 24 litre WRAS Approved diaphragm tank
  • G 1 Flexible hoses included
  • 2 year guarantee
More Information
Manufacturers Stuart Turner
SKU 46602
Weight 22.3 Kg
GTIN 5050400466024

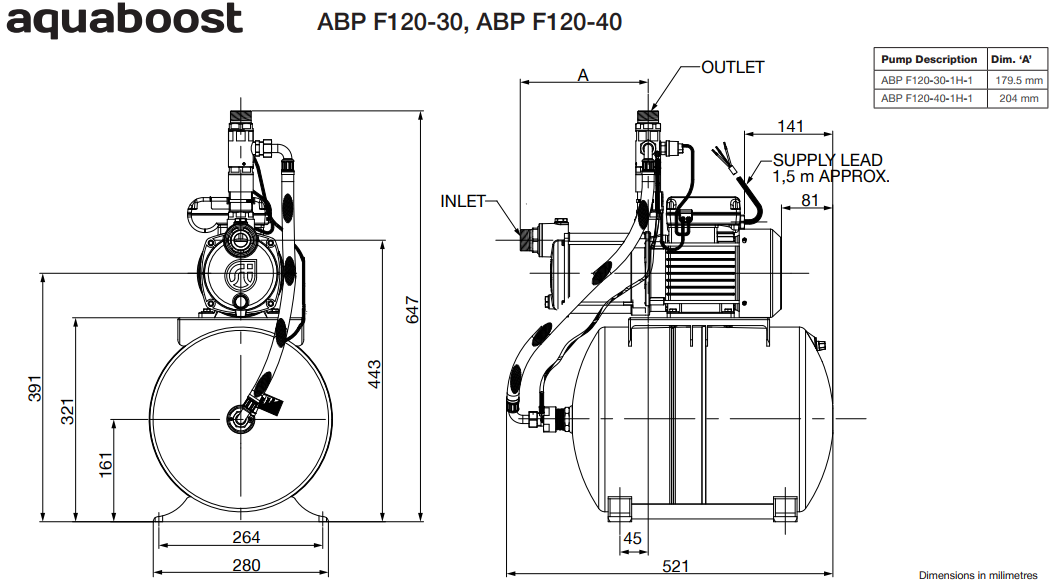

Dimensions 541mm Long x 300mm Wide x 602mm High
Material Brass
Voltage 240V 1Ph 50Hz
Motor Size 1136W
Bar Rating 3.6 Bar
Max Flow 120 l/min
Max Head 36m (3.5 Bar)
Seal Type EPDM / Carbon / Ceramic
System Type Positive
Impeller Type Single Impeller
Pipe Size 25 mm

Delivery

We offer free standard delivery to any UK address on a 3-5 working day delivery time on all orders over the value of £60 + vat. This is not weight restricted

Next day delivery is charged at £8.50 + vat for items under 35kgs.  Orders need to be placed before 5pm Mon-Thurs or 4:30 on Friday for guaranteed Next Day Delivery.

Next day delivery is not avaialble for UK Highlands and Islands. Please click the following link to view postcodes/areas that don't qualify for next day delivery.

Due to some product specifications, there may be a lead time of up to 4 weeks. This is only on a small number of products and you will be contacted upon purchase and entitled to a full refund if required.

For Items over 35kgs, please review our delivery charges here

For full delivery terms please click here

International Delivery

Please click here to view International delivery rates.

If you want your order delivered to a remote area please contact our one of our Sales Representatives on 0800 112 3134 before placing your order and we will assist you further.

Returns

Unused, unaltered items may be returned at the buyers expense for credit upon Online Pump Supplies prior written consent and upon the terms specified by Online Pump Supplies.  The buyer assumes all risk of loss of such returned goods until actual receipt and acceptance by Online Pump Supplies.  Please click here to view Returns information.

File Downloads

pdf
(Size: 859.9 KB)
Aqua Boost Specification
