Stuart Turner ABB 306 2V-SPC/M Variable Speed Vertical Twin Booster Set

Name: Stuart Turner ABB 306 2V-SPC/M Variable Speed Vertical Twin Booster Set
Brand: Stuart Turner
SKU: 67257
Price: 4503 GBP
Availability: InStock

SKU

67257

MRRP £7,035.00 + VAT Our price £4,503.00 (+ VAT) Incl. VAT: £5403.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Booster Set - Vertical Twin

The Aquaboost ABB 0306 2V-SPC/M Vertical Booster Set offers variable speed twin pump units capable of boosting cold water at up to 150 litres per minute or up to 4.5 bar pressure in light commercial applications.

Aquaboost booster sets can be configured for duty-assist or duty-standby modes.

Key Features

1 year guarantee

Heads up to 45 m

Flow rates up to 9 m³/h (150 litres/min)

Variable speed pump control

Duty-assist and duty-standby modes

WRAS approved materials

Continuously rated operation (S1)

Stainless steel manifold assembly

Anti-vibration mounting feet

24 litre pressure vessel included

More Information
SKU	67257
Manufacturers	Stuart Turner
Manufacturers Warranty	1 Year
GTIN	5050400672579
Weight	110.0 Kg

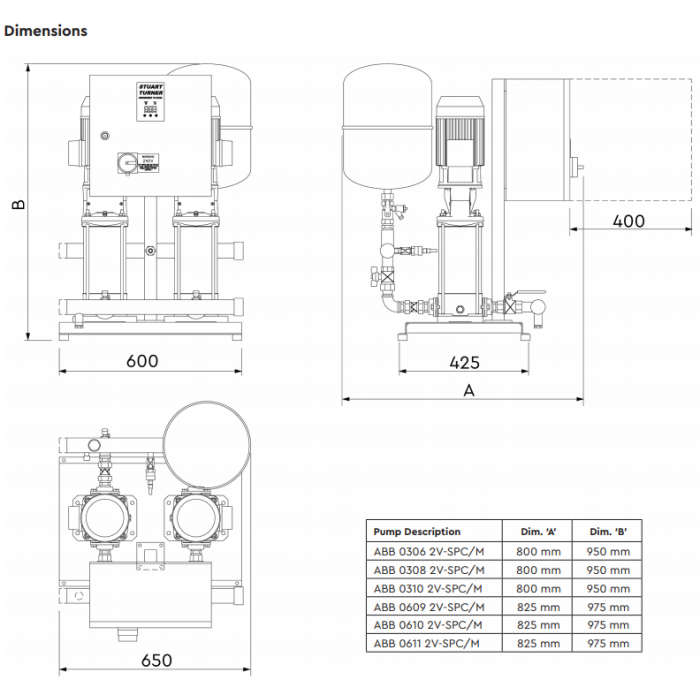

Dimensions	600mm x650mm x 1250mm
Connection Type	1 1/2 Inch BSP
Motor Size	055kW
Full Load Current (FLC)	2.6 A
Voltage	240V 1Ph 50Hz
RPM	2850
Max Flow	9 m3/hr
Max Head	4.4 Bard
Max Temperature	23 degC
Material	Stainless Steel
Seal Type	EPDM/Carbon/Ceramic
