Sentinel Eliminator Vortex 700 Filter
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

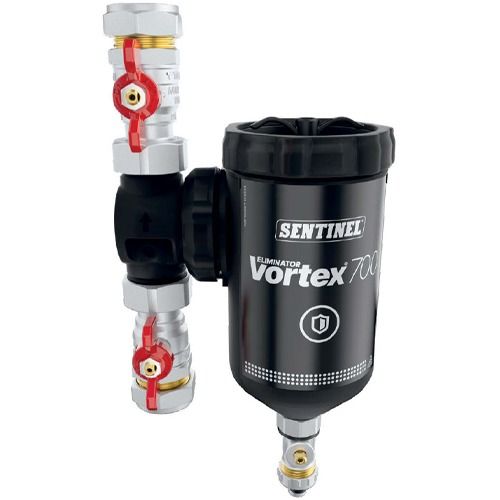

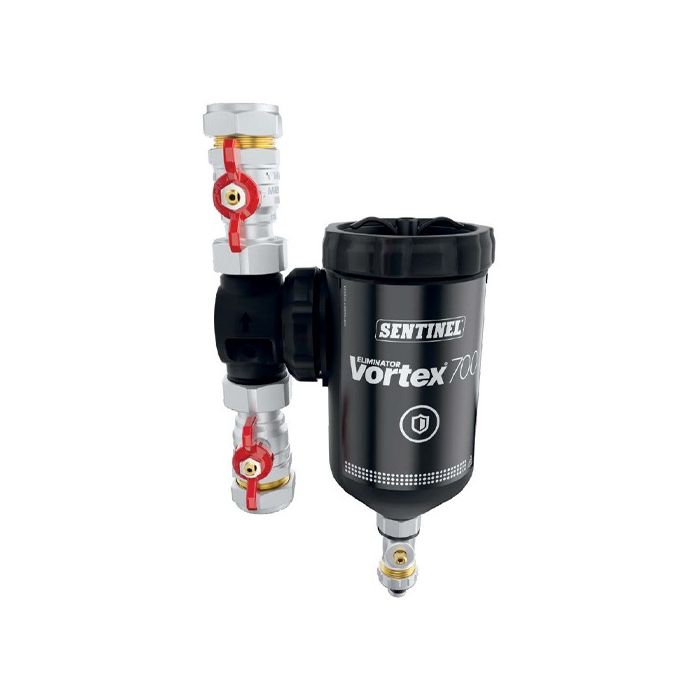

Sentinel Eliminator Vortex 700 Filter - VORTEX-700-GRP28MM
Large filter designed for Air Source Heat Pumps.
Powerful magnetic filtration of system debris with an 800 micron sieve to remove non-magnetic debris. Circulating debris in water heating systems can cause wear and premature failure of pumps, valves and heat exchangers.
Key Features:
- 800 micron sieve with powerful magnet captures both magnetic and non-magnetic debris
- robust GRP reinforced polymer body - suitable for system water with high glycol content
- EU manufactured brass valves
- dual seals, pressure tested on every single unit
- ideal for air source heat pumps and where greater debris collection is required
- 10 year guarantee for complete reassurance of long lasting quality
- flush valve safety feature
- 360° adjustable T-piece
- flexible cleaning methods - Sieve can be removed during servicing for easy cleaning and the flushing
- max. flow rate of 50 litres per minute
- compatible with Sentinel Rapid-Dose (300ml)
Why Install A Heat Pump System Filter?
- defend against build-up of installation debris, organic material, magnetic and non-magnetic sludge that can be found in low temperature systems.
- ensure efficiency of the heating system, reducing excess energy usage.
- protect system components such as pumps and heat exchangers from breakdown.
- a quality heat pump filter, like Eliminator Vortex700, captures harmful debris so it can be removed, for optimum system efficiency and service life.
Usage
Sentinel Eliminator Vortex utilises an 800 micron sieve and powerful neodymium-iron-boron magnets. The innovative design reduces water flow rate and turbulence within the unit to enhance debris retention. The collected debris can be simply flushed away by removing the magnet from its sleeve and opening the drain valve at the base of the unit. The sieve can be removed and cleaned with a soft brush during servicing.
| SKU | VORTEX-700-GRP28MM |
|---|---|
| Manufacturers | Sentinel |
| Manufacturers Warranty | 10 Years |
| Weight | 1.6 Kg |

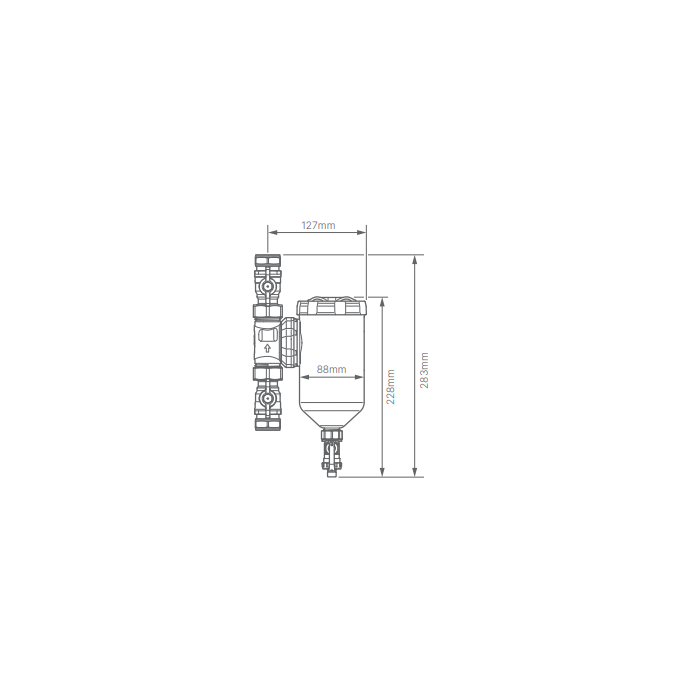

| Dimensions | 228mm (h) x 88mm (w) x 127mm (d) |
| Connection Type | 28mm |
| Max Flow | 50 l/min |
| Max Pressure | 3 Bar |
| Max Temperature | 100°C |
