ProMinent Beta/X Diaphragm Metering Pump 6l/hr Basic
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
ProMinent Beta/X Diaphragm Metering Pump 6l/hr Basic - BTXBEU16006PVT20000UE0B0

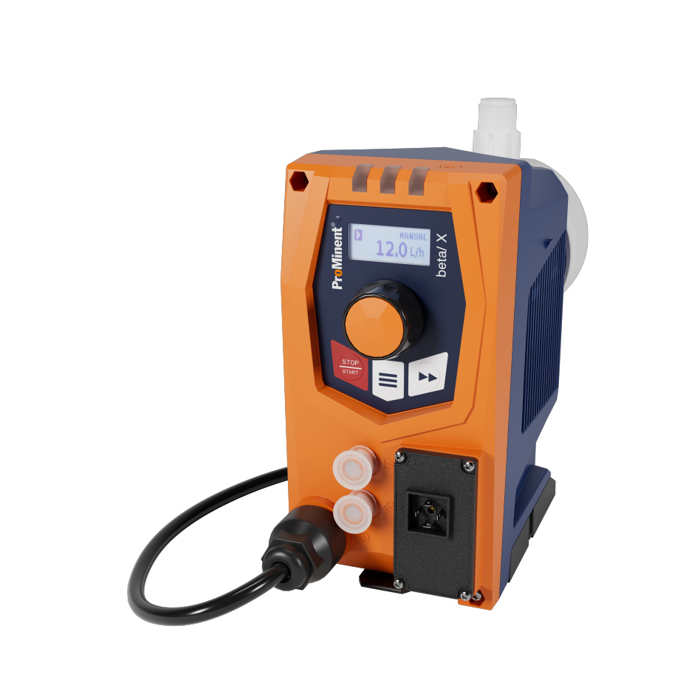

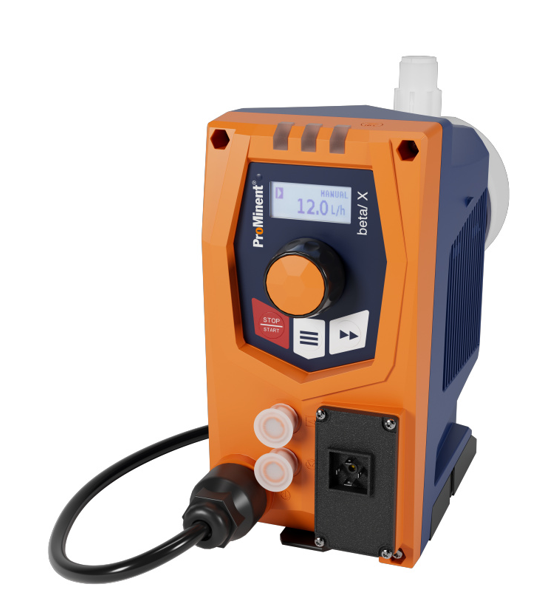

The beta/ X diaphragm metering pump provides simple handling, precise metering and digital networking. With its intuitive operation, robust design and environmentally-friendly PFAS-free variant, it is setting new standards in metering technology.
The Diaphragm Metering Pump beta/ X is easy to use, meters precisely and is digital.
All aspects of the beta/ X are designed for ease of use. The volume is set directly using an intuitive clickwheel. The volume to be dispensed is set directly on a display. Installation on the floor and on the wall is also quick and easy thanks to the click base.
The reliable metering pump is versatile and robust in use. The special feature of the beta/ X is the digitally controlled drive. This enables continuous dosing and a wide adjustment range. The pump can be used universally thanks to its wide adjustment range, which makes selection much easier and reduces the number of variants.
The dosing heads of the beta/ X are characterized by their good suction properties. The specially shaped head minimizes errors due to air lock. This increases process reliability.
The beta/ X is available in a PFAS-free version, which makes it even more environmentally friendly.
The beta/ X is digitally networkable and can be programmed and read out via smartphone. It has a Bluetooth and NFC interface.
Features:
- The desired l/h can be set using a click wheel & display.
- Continuous metering with a wide adjustment range of 1:1000.
- Enhanced process reliability thanks to improved priming and optimised handling of air locks.
- Available in PFAS-free variant.
- Bluetooth and NFC interfaces.
- Energy-efficient: The beta/ X is twice as energy efficient as its comparable predecessor model.
| SKU | BTXBEU16006PVT20000UE0B0 |
|---|---|
| Manufacturers | ProMinent |
| Manufacturers Warranty | 2 Years |
| Weight | 2.9 Kg |

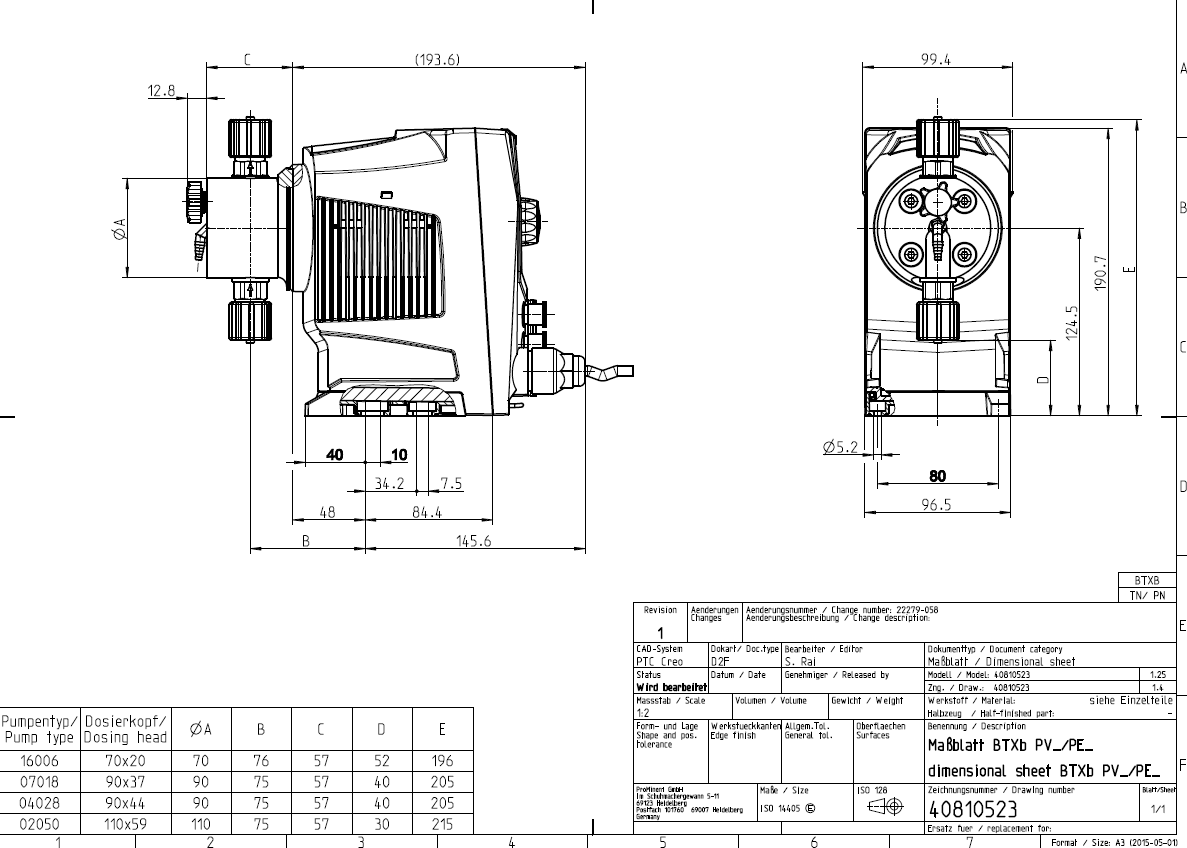

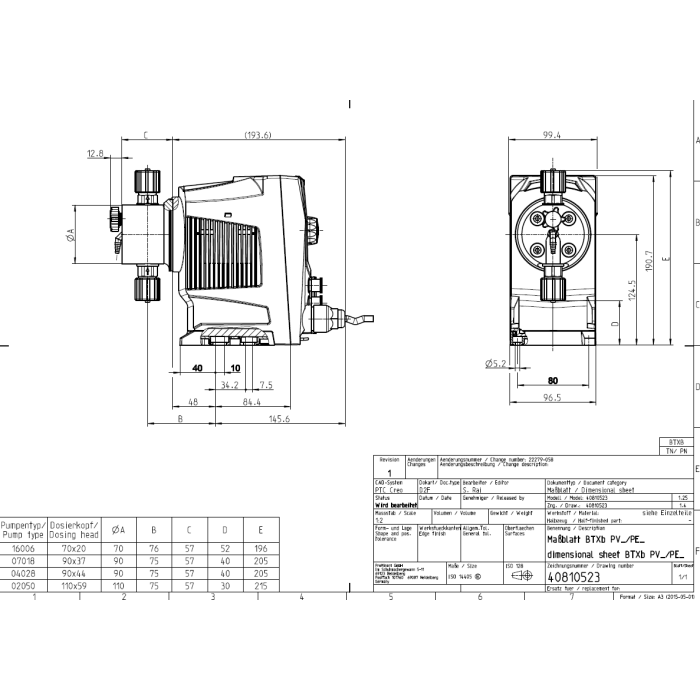

| Dimensions | 196mm (h) x 96.5mm (w) x 250.6mm (d) |
| Connection Type | 6mm x4mm |

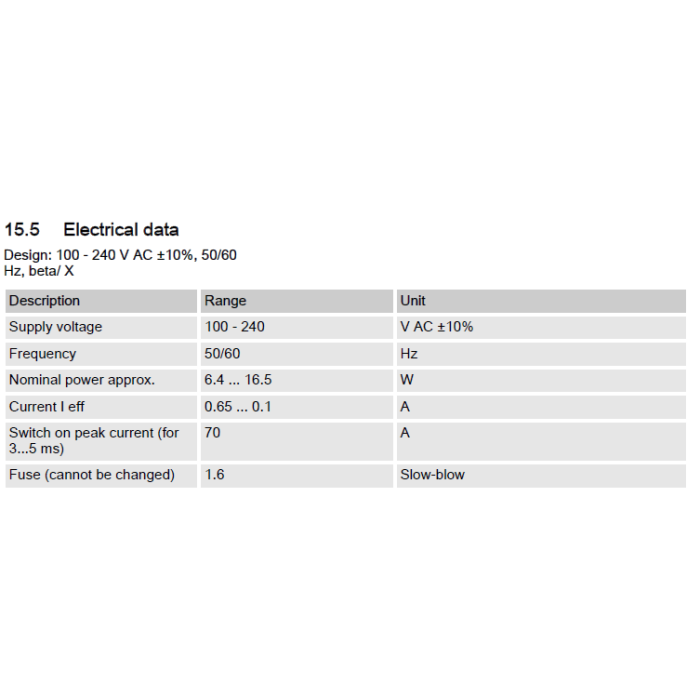

| Motor Size | 6.4 - 16.5W |
| Full Load Current (FLC) | 0.65 - 0.1A |
| Voltage | 110-240v 1ph 50-60hz |
| Max Flow | 6l/hr |
| Max Pressure | 16 Bar |
| Material | PVDF |
