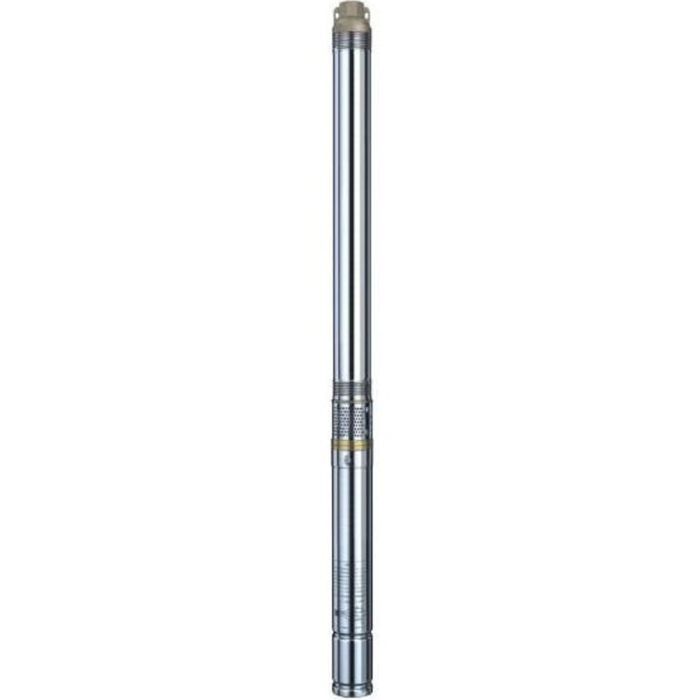

Omnigena 3V38 (1.5kW) Tube Well Borehole Pump 400v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
This model is equipped with 20m of cable.
The 3V submersible pumps, with centrifugal design of the hydraulic part, are designed for pumping clean, cold, fresh water from deep boreholes and other reservoirs.
• Can be installed in manhole pipe with internal diameter from 85 mm, reducing investment costs.
• In the single-phase version of the WK, a capacitor is built into the motor, which makes for easy electrical connection.
• All parts of the pump that come into contact with water are made of stainless materials.
• Thermal protection built into the winding, which protects the motor against overheating (single-phase version WK).
• Three-wire power cable for the 230V version with integrated capacitor and four-wire for the 400V version*.
| SKU | OM-3V38-400V |
|---|---|
| Manufacturers | Omnigena |
| Manufacturers Warranty | 1 Year |
| Weight | 21.0 Kg |
| Dimensions | 1907mm x 75mm |
| Inlet Dimension | 1 1/4" |
| Discharge Dimension | 1 1/4" |
| Motor Size | 1,500W |
| Full Load Current (FLC) | 5.2A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2850 |
| Cable Length | 20m |

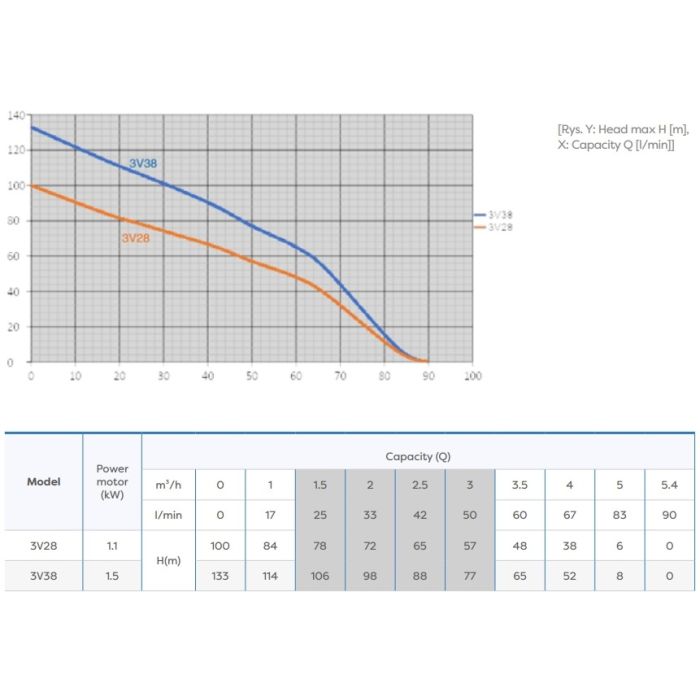

| Max Flow | 90l/min |
| Max Head | 133m |
| Max Temperature | 35°C |
| Material | Stainless Steel |
| Country of Manufacture | Poland |
