NBE 50-250/241 A F A E BQQE Single Stage Variable Speed End Suction 1450RPM 3kW Pump 415V

SKU
99105422
MRRP £5,367.00 + VAT Our price £3,757.00 (+ VAT) Incl. VAT: £4,508.40
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Grundfos NBE 50-250/241 A F A E BQQE Single Stage Variable Speed End Suction Bloc Pump with 4 Pole and 1450rpm Motor 415V 3Ph 50Hz, 3kW Motor

Single-stage end suction bloc pump:

  • Non-self-priming, single-stage, centrifugal volute pump designed according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar).
  • Flanges are PN 16 with dimensions according to EN 1092-2.
  • The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework.
  • The unbalanced rubber bellows seal is according to DIN EN 12756.
  • The pump is close-coupled to a fan-cooled, permanent-magnet asynchronous motor.
  • For pumping thin, clean or lightly contaminated liquids without abrasive or long-fibred solids.
  • The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.
  • Suitable for water supply, industrial pressure boosting, industrial liquid transfer, HVAC and irrigation.
  • 50mm outlet and 65mm inlet.
  • A flange kit comprising of two sets of flanges is required, see related accessories for options.
More Information
SKU 99105422
Manufacturers Grundfos
Manufacturers Warranty 2 Years
GTIN 5712606854677
Weight 90.0 Kg

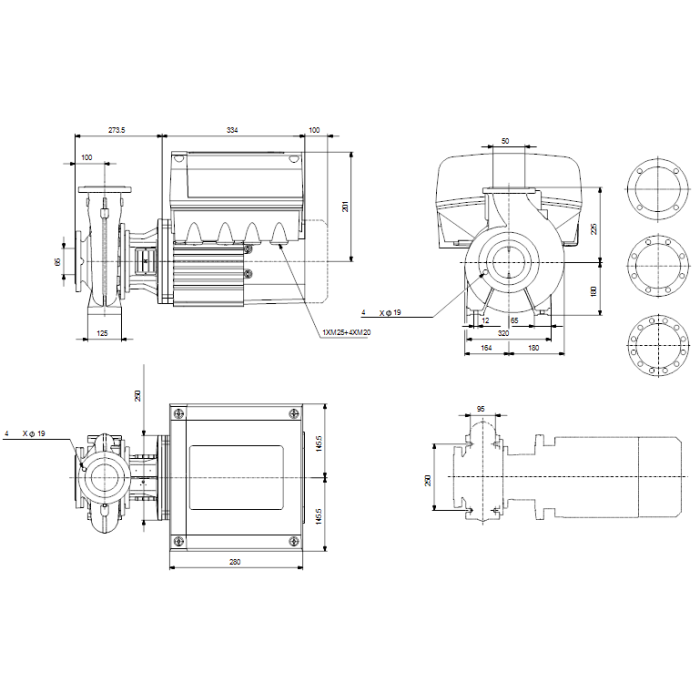

Dimensions 708mm (w) x 381mm (h) x 292mm (d)
Inlet Dimension 65mm Flanged
Discharge Dimension 50mm Flanged
Motor Size 3 kW
Full Load Current (FLC) 4.60 A
Voltage 415V 3Ph 50Hz
RPM 1450rpm
Max Flow 50m3/hr
Max Head 23m
Max Temperature 120°C
Material Cast Iron
Impeller Material Cast Iron
