NB 32-125/130 A F A E BQQE Single Stage End Suction 2900RPM 2.2kW Pump 415V

Name: NB 32-125/130 A F A E BQQE Single Stage End Suction 2900RPM 2.2kW Pump 415V
Brand: Grundfos
SKU: 98092892
Price: 1479 GBP
Availability: InStock

SKU

98092892

MRRP £2,112.00 + VAT Our price £1,479.00 (+ VAT) Incl. VAT: £1774.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos NB 32-125/130 A F A E BQQE Single Stage End Suction Bloc Pump with 2 Pole and 2900rpm Motor 415V 3Ph 50Hz, 2.2kW Motor

Single-stage end suction bloc pump:

Non-self-priming, single-stage, centrifugal volute pump designed according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar).
Flanges are PN 16 with dimensions according to EN 1092-2.
The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework.
The unbalanced rubber bellows seal is according to DIN EN 12756.
The pump is close-coupled to a fan-cooled asynchronous motor.
For pumping thin, clean or lightly contaminated liquids without abrasive or long-fibred solids.
Suitable for water supply, industrial pressure boosting, industrial liquid transfer, HVAC and irrigation.
32mm outlet and 50mm inlet.
A flange kit comprising of two sets of flanges is required, see related accessories for options.

More Information
SKU	98092892
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5710628879067
Weight	54.0 Kg

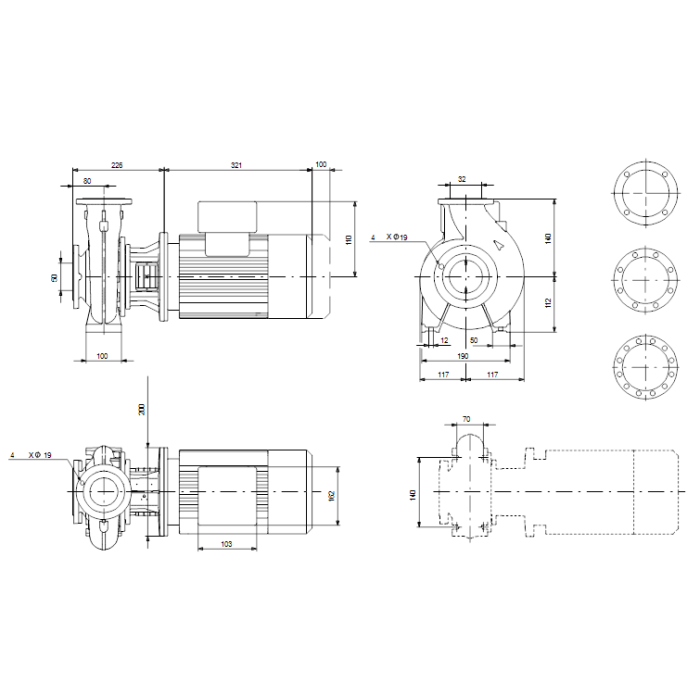

Dimensions	556mm (w) x 234mm (d) x 159mm (h)
Inlet Dimension	50mm Flanged
Discharge Dimension	32mm Flanged
Motor Size	2.2 kW
Full Load Current (FLC)	4.60 A
Voltage	415V 3Ph 50Hz
RPM	2890rpm
Max Flow	34m3/hr
Max Head	24m
Max Temperature	120°C
Material	Cast Iron
Impeller Material	Cast Iron
