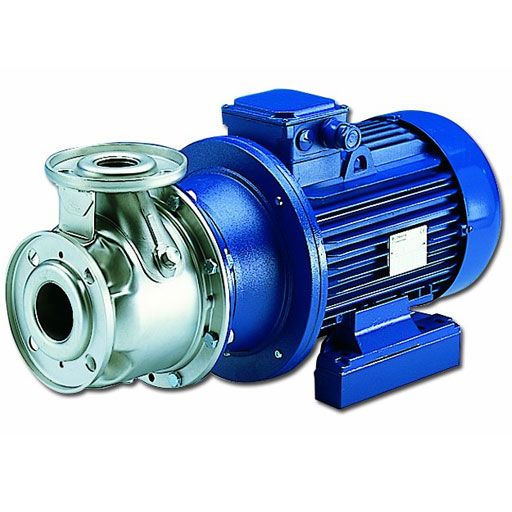

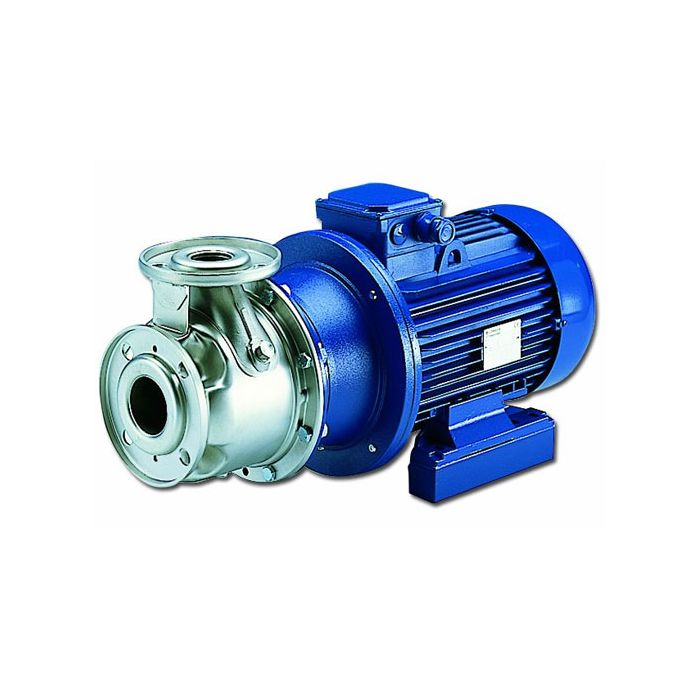

Lowara SHE 32-160/15/D Centrifugal Pump 415V replaced with e-SHE 32-160/15

SKU
104520110
MRRP £2,614.00 + VAT Our price £1,829.80 (+ VAT) Incl. VAT: £2,195.76
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Please note this pump is no longer available and has been replaced with the e-SHE 32-160/15/S25RSSA (101860160). This will be sent as a replacement.

Lowara SH Series pumps are designed to handle hot, cold and moderately aggressive liquids.
This series is available in the following models:
  • SHE Close-coupled with special motor shaft extension
  • SHS With stub shaft and standard motor
  • SHF With flexible coupling, adapter, base and standard motor in compliance with EN 733 - DIN 24255

Specification:

  • Delivery: up to 240 m³/h
  • Head: up to 110 m
  • Power supply: both single and three-phase 50 and 60 Hz
  • Power: from 0.25 kW up to 75 kW
  • Maximum operating pressure: 12 bar
  • Temperature of pumped liquid: from -10 °C to 120 °C

All SH series are supplied with FPM seals and O-Rings as standard.  All pumps can be supplied fitted with WRAS approved seals on request at extra cost.

Models ending /P are fitted with the new PLM High Efficiency Motors.

More Information
SKU 104520110
Manufacturers Lowara
Manufacturers Warranty 2 Years
Weight 28.0 Kg
Dimensions 443mm Long x 292mm High x 253mm Wide
Motor Size 1.5kW
Full Load Current (FLC) 0.99A
Voltage 415V 3Ph 50Hz
Max Flow 24m3/hr
Max Head 27.6m
Material Stainless Steel
