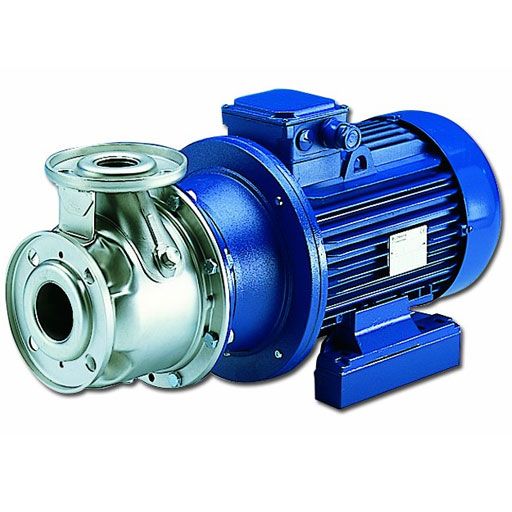

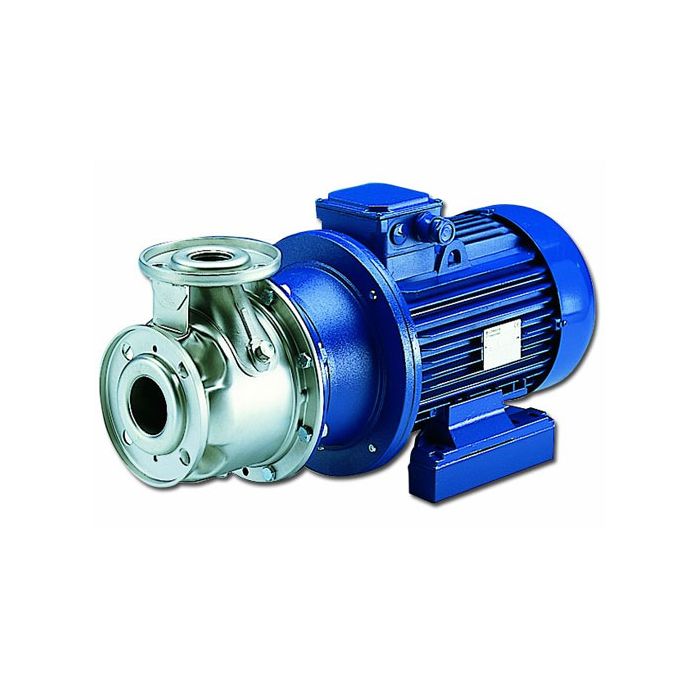

Lowara SHE 25-160/22/C Centrifugal Pump 415V replaced with e-SHE 25-160/22

Name: Lowara SHE 25-160/22/C Centrifugal Pump 415V replaced with e-SHE 25-160/22
Brand: Lowara
SKU: 104330040
Price: 1951.6 GBP
Availability: InStock

SKU

104330040

MRRP £2,788.00 + VAT Our price £1,951.60 (+ VAT) Incl. VAT: £2,341.92

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Please note this pump is no longer available and has been replaced with the e-SHE 25-160/22/P25RSSA (101860040). This will be sent as a replacement.

Lowara SH Series pumps are designed to handle hot, cold and moderately aggressive liquids.

This series is available in the following models:

SHE Close-coupled with special motor shaft extension
SHS With stub shaft and standard motor
SHF With flexible coupling, adapter, base and standard motor in compliance with EN 733 - DIN 24255

Specification:

Delivery: up to 240 m³/h
Head: up to 110 m
Power supply: both single and three-phase 50 and 60 Hz
Power: from 0.25 kW up to 75 kW
Maximum operating pressure: 12 bar
Temperature of pumped liquid: from -10 °C to 120 °C

All SH series are supplied with FPM seals and O-Rings as standard. All pumps can be supplied fitted with WRAS approved seals on request at extra cost.

Models ending /P are fitted with the new PLM High Efficiency Motors.

More Information
SKU	104330040
Manufacturers	Lowara
Manufacturers Warranty	2 Years
Weight	28.0 Kg
Dimensions	478mm Long x 320mm High x 253mm Wide
Motor Size	2.2kW
Full Load Current (FLC)	1.46A
Voltage	415V 3Ph 50Hz
Max Flow	24m3/hr
Max Head	34.6m
Material	Stainless Steel
