Lowara GHV20/5SV16F022T/2 Twin Pump Variable Speed Booster Set With Hydrovar 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

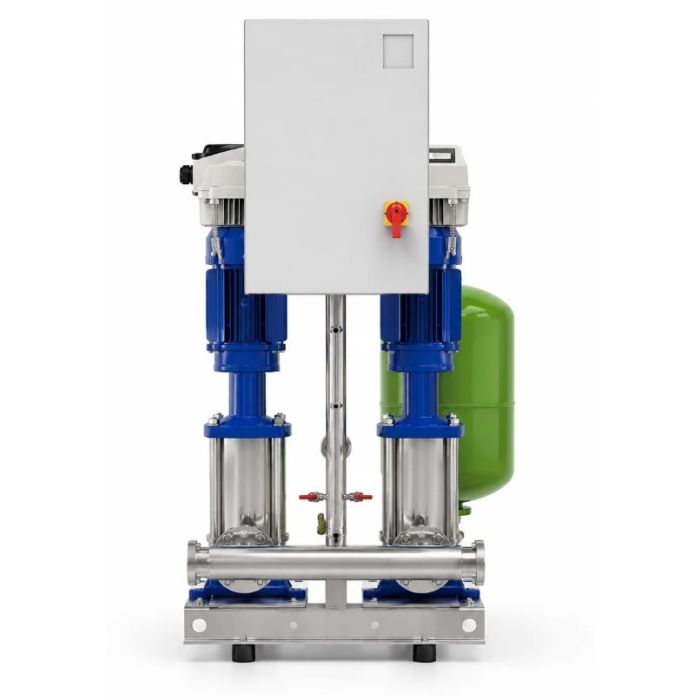

Lowara GHV20/5SV16F022T/2 Twin Pump Variable Speed Booster Set With Hydrovar 240v - 1008042628
The Lowara GHV series booster sets are fully automatic booster sets for water supply, water pressure increase and water transfer in condominiums, office buildings, hotels, public buildings, industries and other applications.
The GHV series is equipped with 1 to 4 e-SV vertical multistage pumps, each one fitted with a Hydrovar HVL variable frequency drive, pressure transmitters and a control panel, all mounted on a frame for easy installation. The GHV series is easy to program, designed for maximum energy efficiency and can communicate with a BMS system via Modbus or BACnet.
The GHV series is certified for use with potable water.
GHV booster sets are available with up to 8 pumps. Other pump types and other special versions are available on request.
Features:
- Fully automatic
- All pumps are individually variable speed controlled for best economy and system reliability
- Equipped with 1 to 4 Lowara e-SV multistage pumps and Hydrovar HVL variable speed controllers
- Easy to install and commission, no advanced programming necessary
- Communicate with BMS systems
- Certified for use with potable water
| SKU | 1008042628 |
|---|---|
| Manufacturers | Lowara |
| Manufacturers Warranty | 2 Years |
| Weight | 178.0 Kg |

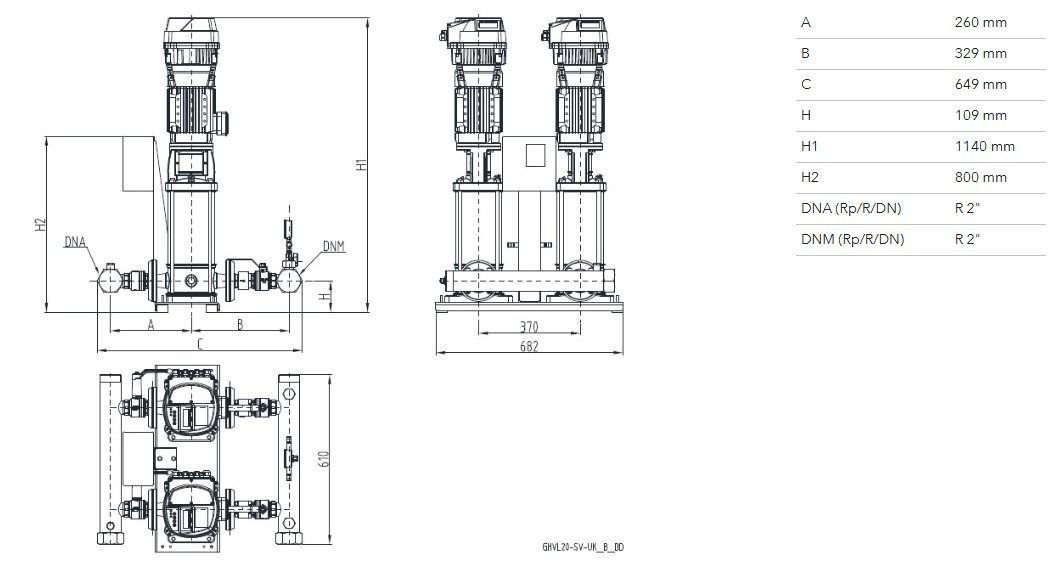

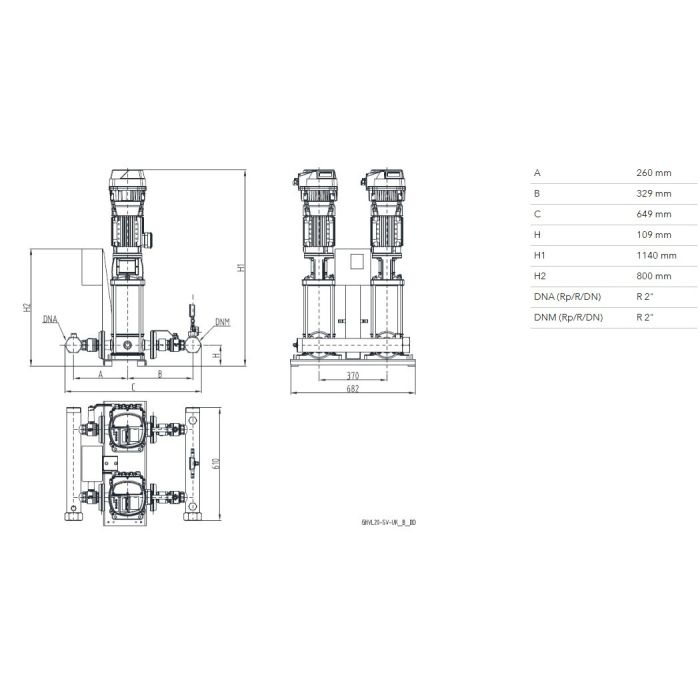

| Dimensions | 1140mm (h) x 658mm (w) x 680mm (d) |
| Connection Type | 2 Inch BSP Female |
| Motor Size | 2.2kW |
| Full Load Current (FLC) | 7.9-4.56 A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 2900rpm |
| Max Flow | 17m3/hr |
| Max Head | 120m |
| Max Temperature | 80°C |
| Material | Stainless Steel |
