Lowara DLF Vortex/A Submersible Pump Without Floatswitch 415v

SKU
107560140XXXPLN
MRRP £1,373.00 + VAT Our price £961.10 (+ VAT) Incl. VAT: £1,153.32
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

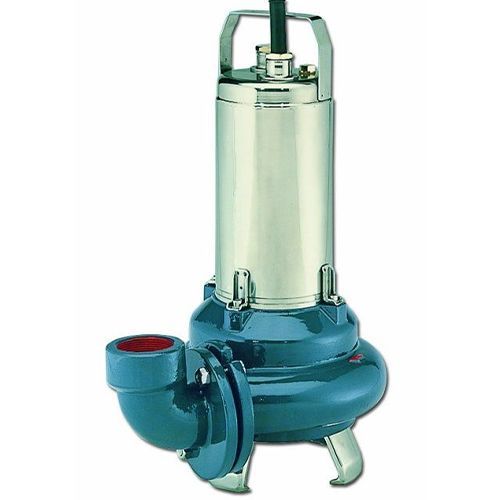

The DLF VORTEX/A submersible electric pump from Lowara is constructed from cast iron and stainless steel and has a single vortex impeller. Designed to handle solids-laden waste water, with solids up to 45mm in diameter. Unit not supplied with floatswitch but fitted with 10 metres of cable.

The pump is suitable for the following applications:

  • Pumping of sewage with suspended solids and filaments
  • Emptying of sumps, septic tanks and waste water discharge tanks
  • Draining of flooded excavations and marshy ground

The pump specifications are:

  • Maximum liquid temperature: 50°C with fully submerged pump, 25°C with partially submerged pump
  • Mechanical seal protected by sand labyrinth
  • Maximum dimension of suspended solids: 45mm
  • Motor in a dielectric non-toxic oil bath, which ensures the lubrication of the ball bearings and a more efficient cooling.
  • Power cord: H07RN-F: - single-phase: with plug, - three-phase: without plug.
  • Insulation class 155°C (F).
  • IPX8 protection.
  • Maximum immersion depth: 5m.

Please note this pump is only for guide rail/flange connection.

More Information
SKU 107560140XXXPLN
Manufacturers Lowara
Manufacturers Warranty 2 Years
Weight 27.0 Kg

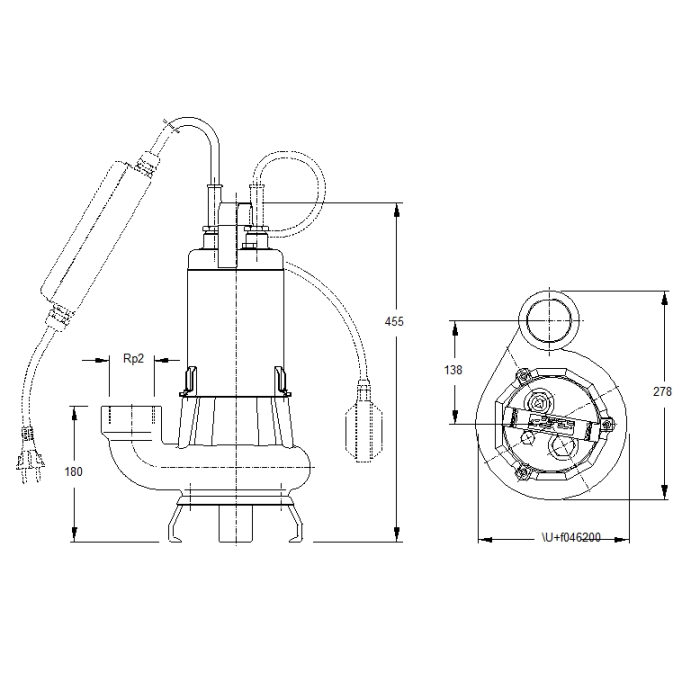

Dimensions 455mm (h) x 278mm (d)
Connection Type 2 Inch BSP Female
Motor Size 1.1 kW
Full Load Current (FLC) 5.11 A
Voltage 415V 3Ph 50Hz
RPM 2850rpm

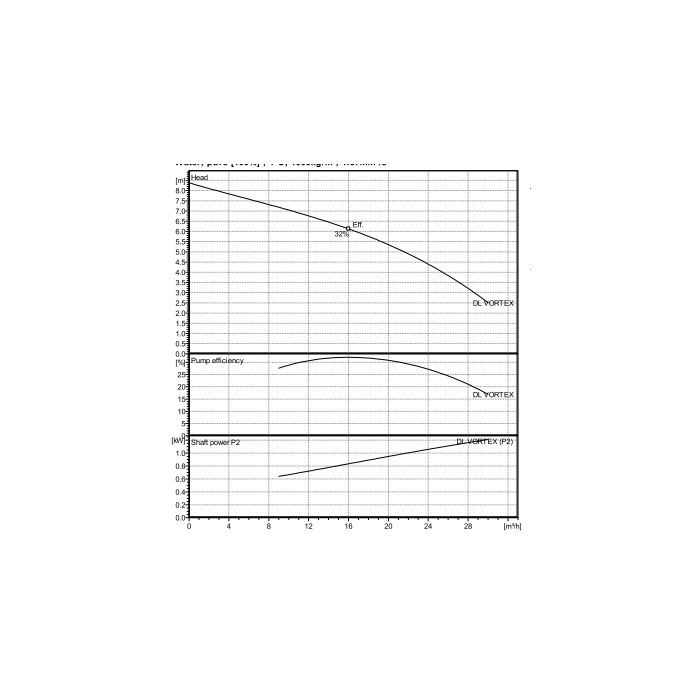

Max Flow 30m3/hr
Max Head 8.3m
Max Temperature 50 degrees C
Material Cast Iron
Impeller Material Cast Iron
