Lowara 1SVI02-02CG003T5RQBV 0.37kW Immersible Vertical Multi Stage Pump 415v - 10BCA0202

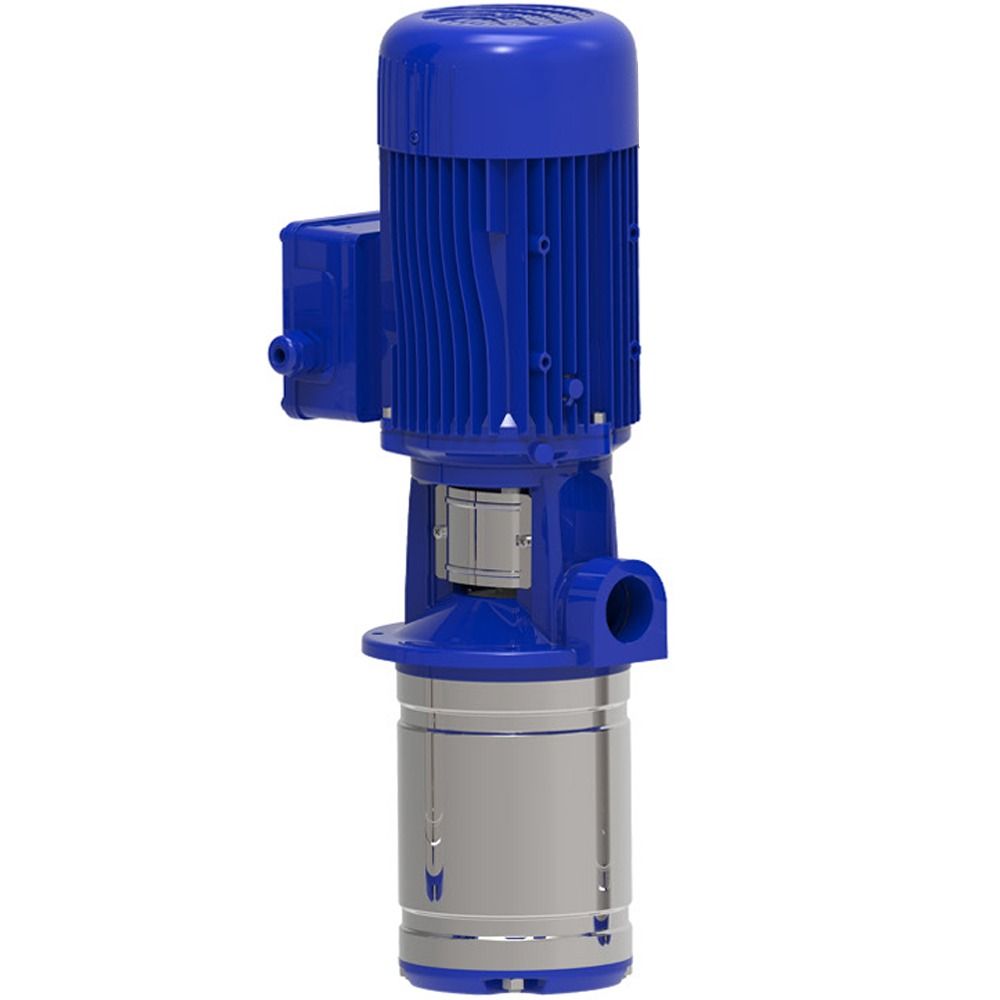

The e-SVI is an efficient, reliable, high-performance pump, comprised of an energy saving, vertical multistage pump coupled to a IEC high efficient motor. Plus, an immersible hydraulic end provides an ideal solution for top mount applications.
Industry-leading range, with flows up to 120 m³/h and sizes from 1 to 92, meets the demands of a wide variety of applications in the industrial, OEM and commercial building services markets.
An immersible top tank solution.
The e-SVI is specially designed to be mounted on the top of a tank, with the pump unit immersed in the liquid to be pumped. The length of the immersed pump unit can vary, depending on the solution your application requires.
Performance:
- The e-SVI can be configured to allow an additional number of blank stages, so that the height of the immersed part can accommodate different suction depths.
- The e-SVI can be built with a variable number of impellers, to cover a wide range of duty points.
- A drain-back-to-tank design feature that comes standard on close coupled configurations allows pumped liquid to return to the tank, which minimizes spillover.
- A compact close-coupled option is available in three sizes, for applications with limited overhead clearance.
- An all-316SS version is available, to handle aggressive liquids and more demanding applications.
- An assortment of materials and configurations let you create the right pump for the job at hand.
- The e-SVI range 1-22 features an inducer as part of our standard offering. The inducer helps protect against dry run and allows for reliable low-level pumping.
- Industry-leading performance and range, with flows up to 120 m3/h, meet the demands of a wide variety of applications.
Efficiency:
- Xylem Hydrovar® drives and IE5 efficient Smart Motors are available, to further improve the performance of the system.
- IEC high efficient motors, combined with the optimized hydraulic design of the e-SVI pump, reduce energy consumption and operating costs.
- Precision laser welded impellers reduce hydraulic losses and optimize pump efficiency.
| SKU | 10BCA0202 |
|---|---|
| Manufacturers | Lowara |
| Manufacturers Warranty | 2 Years |
| Weight | 12.0 Kg |

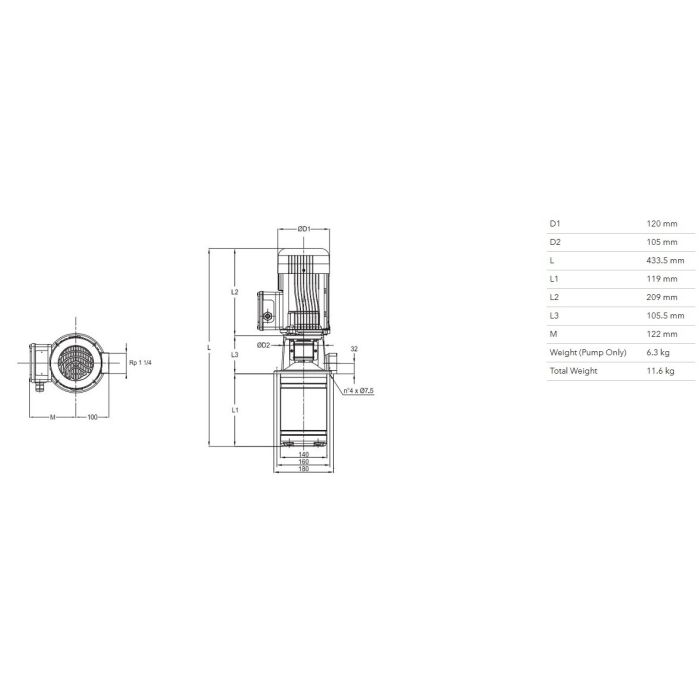

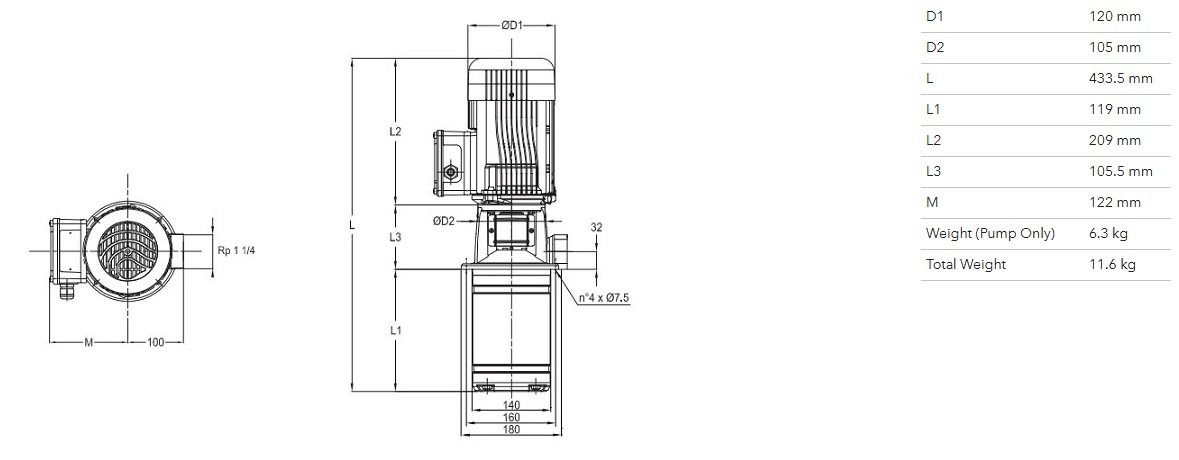

| Dimensions | 434mm (h) x 222mm (w) x 180mm (d) |
| Connection Type | 1 1/4 Inch BSP Female |
| Motor Size | 0.37kW |
| Full Load Current (FLC) | 2.18-1.26 A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2900rpm |
| Max Flow | 2.4m3/hr |
| Max Head | 12m |
| Max Temperature | 90°C |
| Material | Stainless Steel 316 |
| Impeller Material | Stainless Steel / AISI 304 |
