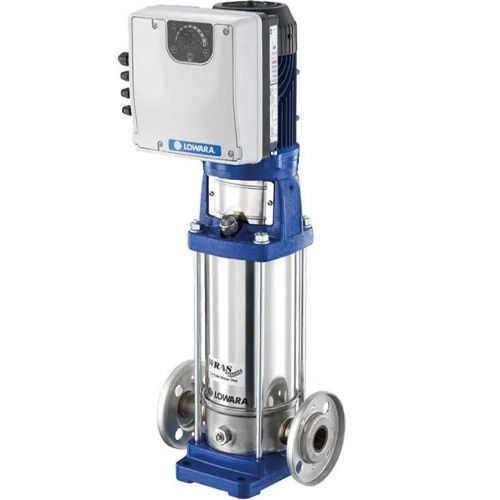

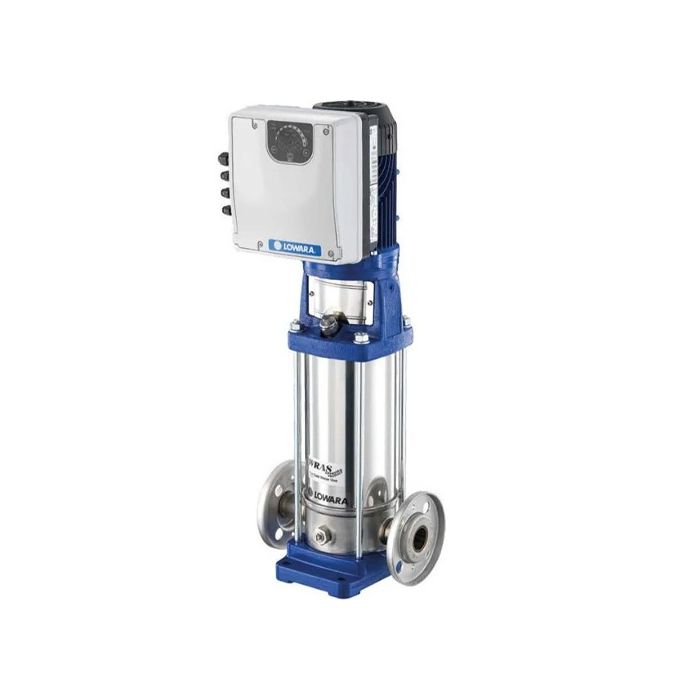

Lowara 1SVE05F003P0M/2 Variable Speed Vertical Multi-Stage Pump With E-SM Drive 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Lowara 1SVE05F003P0M/2 Variable Speed Vertical Multi-Stage Pump With E-SM Drive 240v - 104632501
The e-SVE smart pump is the newest addition to the e-SV pump family. It is a pre-programmed package combining the e-SV fabricated vertical multi-stage pump with a Xylem Smart Motor – an “ultra-premium” level IE5 permanent magnet motor with built-in pump protection controls and monitoring. The combination allows for easy, cost effective installation, and has a pre-configured system’s intelligence and performance right out of the box. Six e-SVE pump ranges are available with multiple construction designs offer flexibility for a wide list of applications, including residential and light commercial, OEM applications and HVAC.
Features:
- features the Xylem Smart Motor an ultra-premium IE5 permanent, magnet motor, providing efficiency well above a standard IE3 NEMA Premium asynchronous motor
- includes a wide range of monitoring, control and safety features right out of the box with no need to configure
- can operate single or multipump systems of up to three pumps, with no need for an external control panel or PLC
- exceeds hydraulic performance of fixed speed versions in a more compact design
- six e-SVE pump ranges are available with multiple construction designs offer flexibility for a wide list of applications, including residential and light commercial, OEM applications and HVAC
- certified to the NSF/ANSI 61 Drinking Water System Components Standard
- options include high-temperature seals, low NPSH design, high pressure design, and passivated and electropolished versions
| SKU | 104632501 |
|---|---|
| Manufacturers | Lowara |
| Manufacturers Warranty | 2 Years |
| Weight | 18.0 Kg |

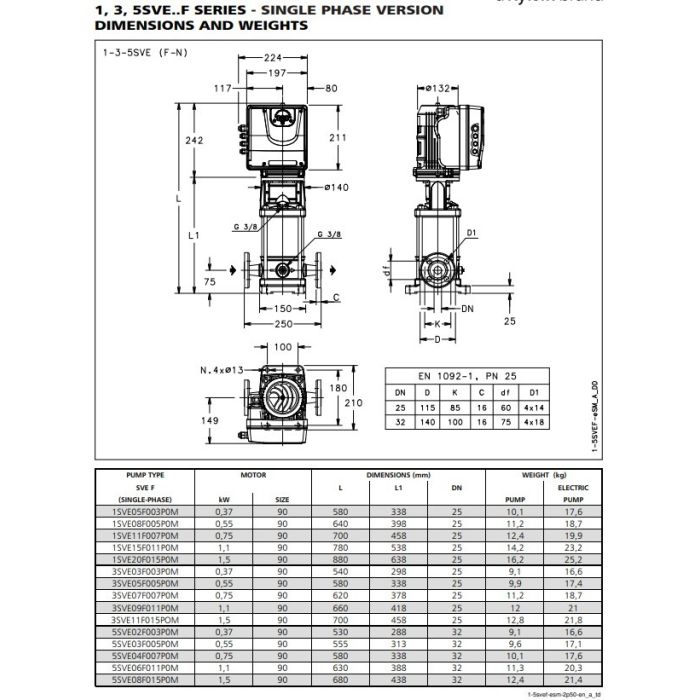

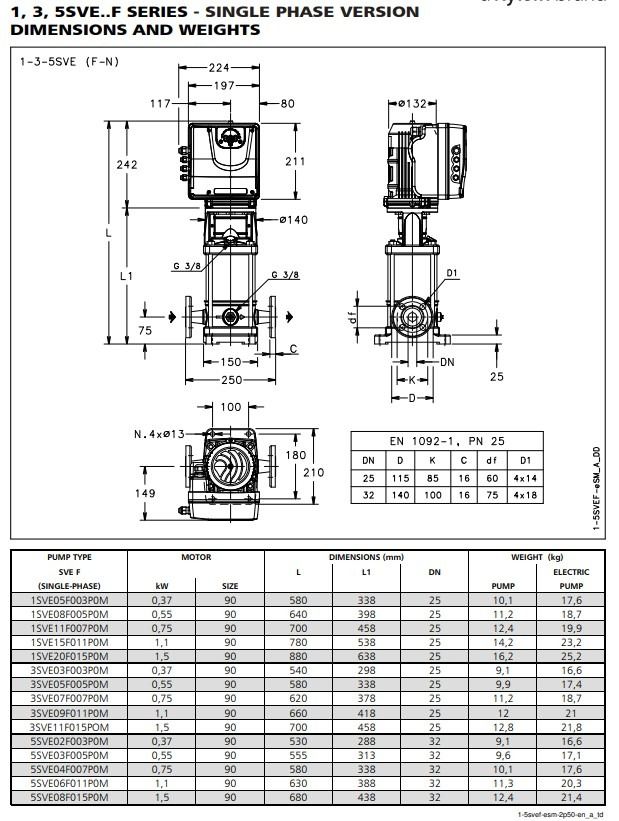

| Dimensions | 580mm (h) x 250mm (w) x 210mm (d) |
| Connection Type | DN25 |
| Motor Size | 0.37kW |
| Full Load Current (FLC) | 2.30-2.02 A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 3600rpm |

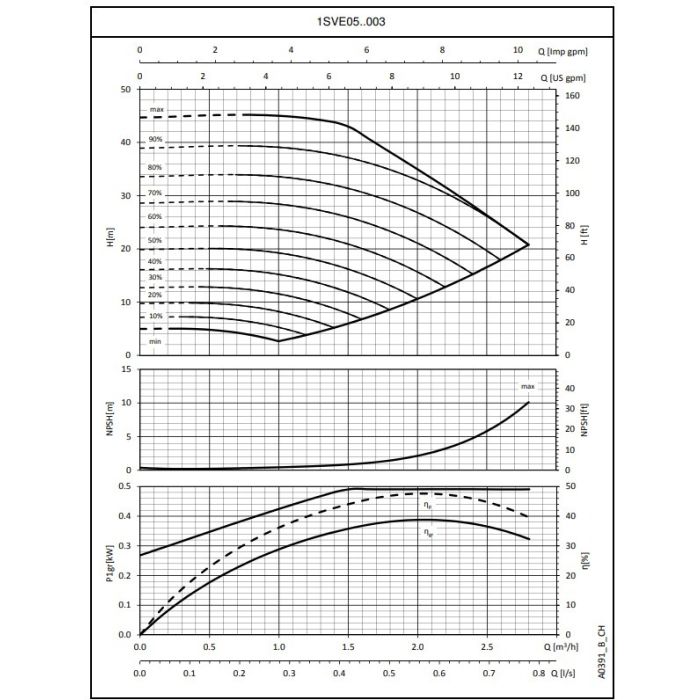

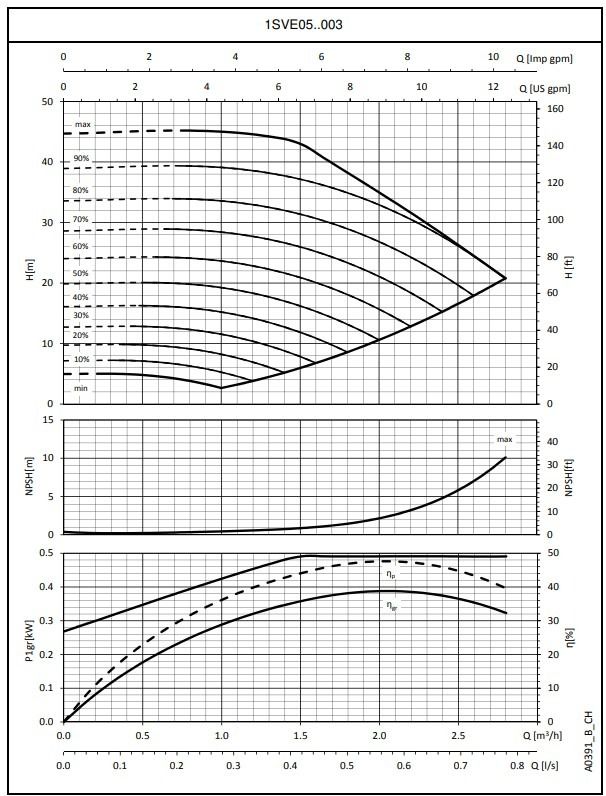

| Max Flow | 2.8m3/hr |
| Max Head | 45m |
| Max Temperature | 120°C |
| Material | Stainless Steel |
| Impeller Material | Stainless steel / AISI 304 |
