Lowara 1HME05S03M02VBE Variable Speed Horizontal Multi-Stage Pump With E-SM Drive 240V - 104630011

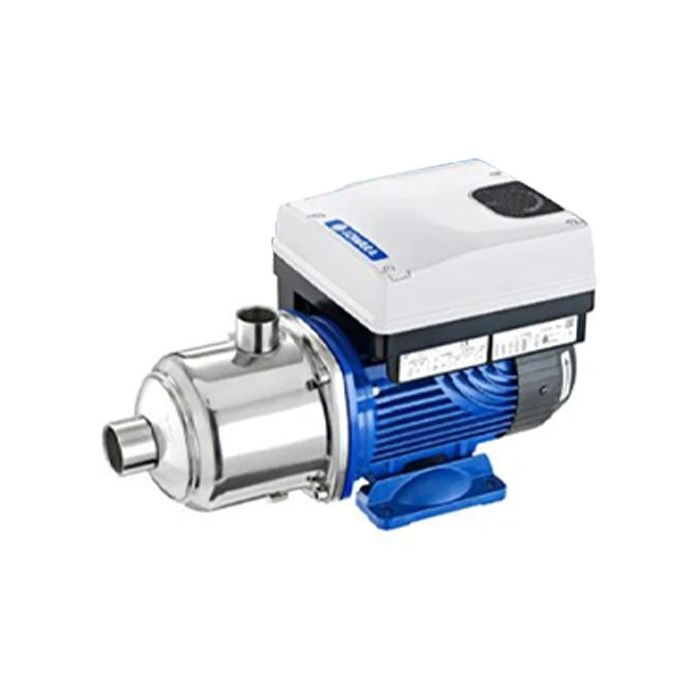

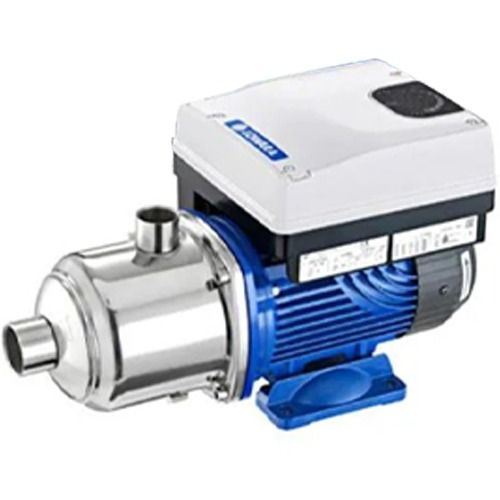

The e-HME Smart Pump is a pre-programmed package combining the e-HM multistage pump with a Xylem Smart Motor – an “ultra-premium” level IE5 permanent magnet motor with built-in pump protection controls and monitoring. The combination allows for easy, cost effective installation, and has a pre-configured system’s intelligence and performance right out of the box. Five ranges offer flexibility for a wide list of applications, including residential and commercial pressure boosting, industrial and HVAC, and irrigation.
Features:
- Xylem Smart Motor. The e-HME features the Xylem Smart Motor an “ultra-premium” IE5 permanent, magnet motor, providing efficiency well above a standard IE3 NEMA premium efficient asynchronous motor
- includes a wide range of monitoring, control and safety features right out of the box with no need to configure
- can operate single or multi-pump systems of up to three pumps, with no need for an external control panel or PLC
- exceeds hydraulic performance of fixed speed versions in a more compact design
- flexible range. Five e-HME pump ranges offer flexibility for a wide list of applications, including residential and commercial pressure boosting, industrial and HVAC, and irrigation
- built to perform. Thick stainless-steel casing, high-quality bearings, and stainless-steel inner components minimize noise and guarantee long service life
- NSF Certified. Certified for drinking water use (certified to the NSF/ANSI 61 Drinking Water System Components Standard)
- range of options. Options include AISI 304 or 316 pump body and inner components, electropolished and passivated, and mechanical seal or O-rings
| SKU | 104630011 |
|---|---|
| Manufacturers | Lowara |
| Manufacturers Warranty | 2 Years |
| Weight | 15.0 Kg |

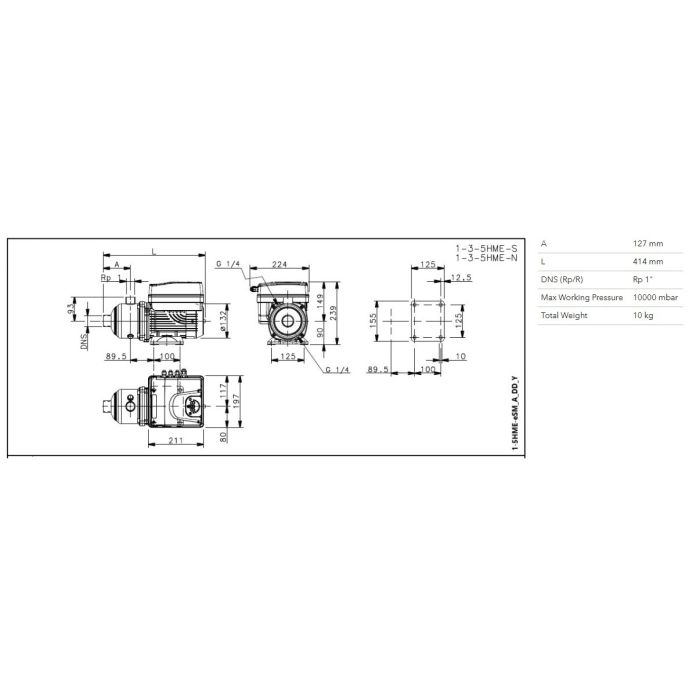

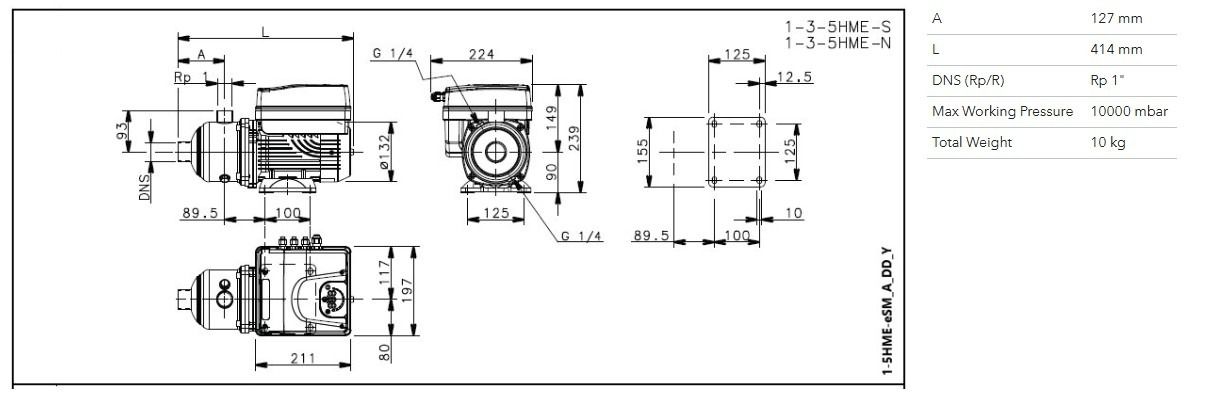

| Dimensions | 414mm (l) x 239mm (h) x 197mm (w) |
| Connection Type | 1 Inch BSP |
| Motor Size | 0.3kW |
| Full Load Current (FLC) | 2.28A - 1.99A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 3600rpm |

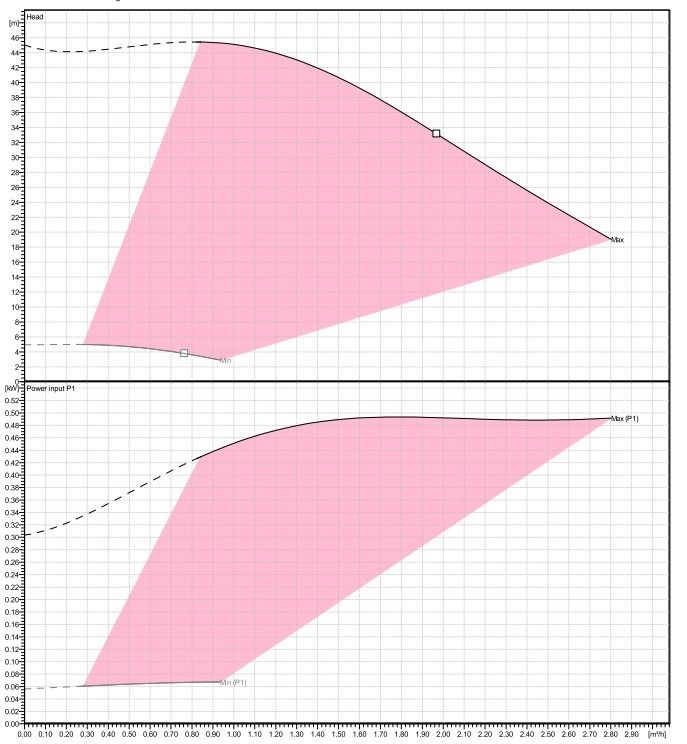

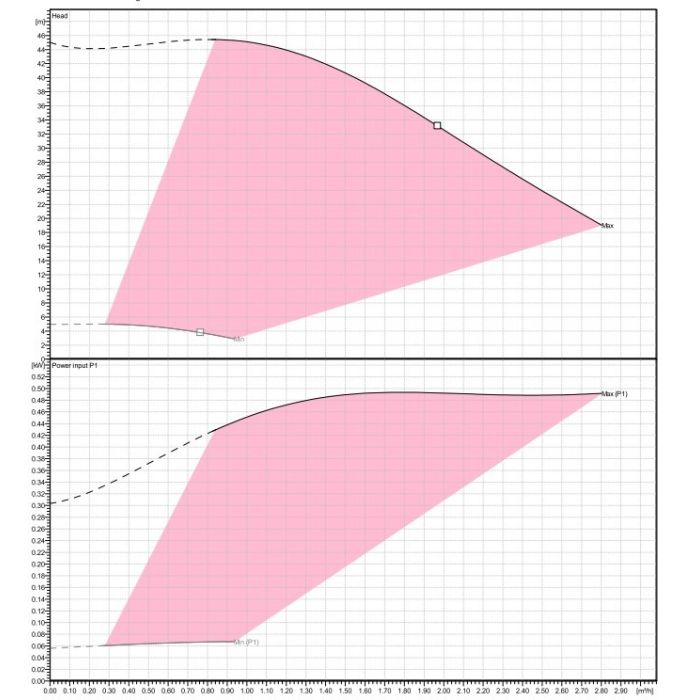

| Max Flow | 2.8m3/hr |
| Max Head | 45m |
| Max Temperature | 120°C |
| Material | Stainless Steel |
| Impeller Material | Stainless Steel |
