KSB AMA-Porter 514 ND Submersible Waste Water Pump without Floatswitch 415v

Name: KSB AMA-Porter 514 ND Submersible Waste Water Pump without Floatswitch 415v
Brand: KSB
SKU: 39100415
Price: 1318 GBP
Availability: InStock

SKU

39100415

MRRP £2,196.04 + VAT Our price £1,318.00 (+ VAT) Incl. VAT: £1,581.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

KSB AMA-Porter 514 ND Submersible Waste Water Pump without Floatswitch 415v - 39100415

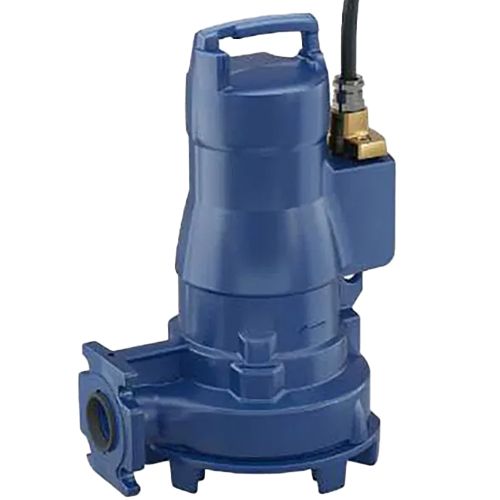

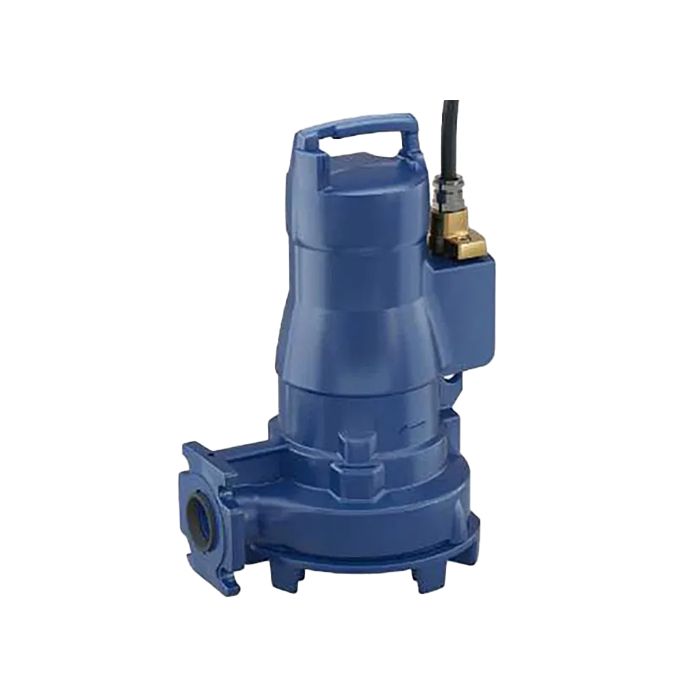

The KSB Ama Porter 514 ND (39100415) are stongly built DN50 three-phase submersible pumps with Free-Flow impeller technology that is capable of pumping wastewater containing solid matter. This model is an Ama Porter ND version, this means that they use three-phase power (10m cable) and are manual operation (without a float switch).

The KSB Ama Drainer series are commonly used in pumping stations, domestic waste water, Waste water transport and the draining of pits, shafts, etc.

high operating reliability, even under tough operating conditions due to generously sized motor and thermal overload protection
long service life with shaft made of corrosion-resistant stainless steel and one or two bi-directional mechanical seals
trouble-free operation, resistance to clogging by coarse particles is prevented by large free passage (vortex impeller)
stationary pump sets easy to install and remove with automatic, bolt-free connection; leakage prevented by elastic sealing elements
ease of service with wetted bolts made of stainless steel which are easy to undo even after years of operation

Features include:

active hydraulic component; free flow impeller
10m power cable
impeller diameter: 140mm
free passage: 40mm
power cable: (mm2): 7G1.5

More Information
SKU	39100415
Manufacturers	KSB
Manufacturers Warranty	2 Years
Weight	43.0 Kg

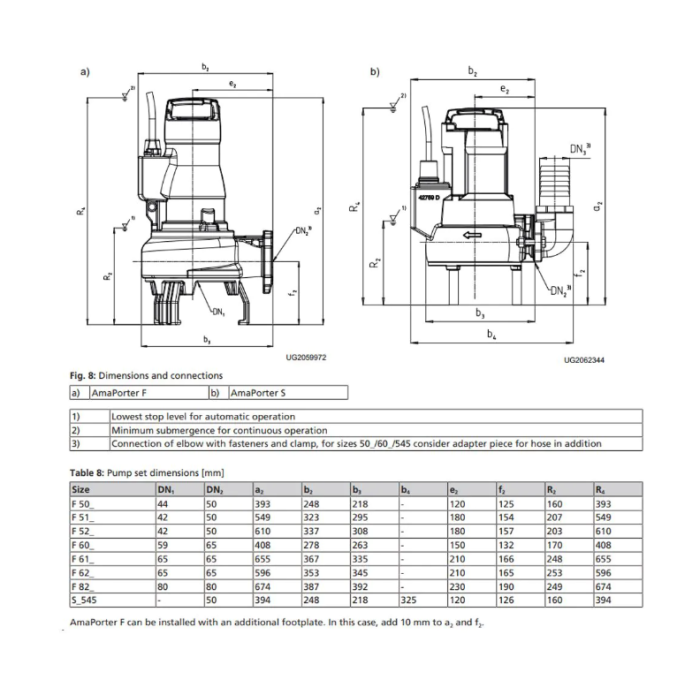

Dimensions	549mm (h) x 323mm (w)
Connection Type	50mm Flanged
Motor Size	2.3kW
Full Load Current (FLC)	5.6A
Voltage	415V 3Ph 50Hz
RPM	2900rpm
Cable Length	10 Metres
Max Flow	45m3/hr
Max Head	22m
Max Temperature	40°C
Material	Cast Iron
