JST-75 SK - 4" Submersible Sewage Pump With Cutter Impeller 415v

SKU
012-796
MRRP £3,182.00 + VAT Our price £2,387.00 (+ VAT) Incl. VAT: £2,864.40
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

JST-75 SK - 4" Submersible Sewage Pump With Cutter Impeller 415v - 012-796

JST SK pumps are submersible sewage cutter pumps.

The tungsten carbide tipped impeller runs against a grinding diffuser plate, shredding and cutting soft solids into smaller parts to pump through the body to waste. The pump features a cast iron pump body, volute stand, impeller, lower motor bearing/seal housing and motor top cover, while the motor case and shaft are from stainless steel.

Twin mechanical seals help prevent abrasives such as sand, dirt and silt from entering the seal chamber.

Complete with 10m of power cable. Hose tail adapters are supplied with all models.

Hosetails supplied with all models apart from JST-37/55/75 SK.

Features

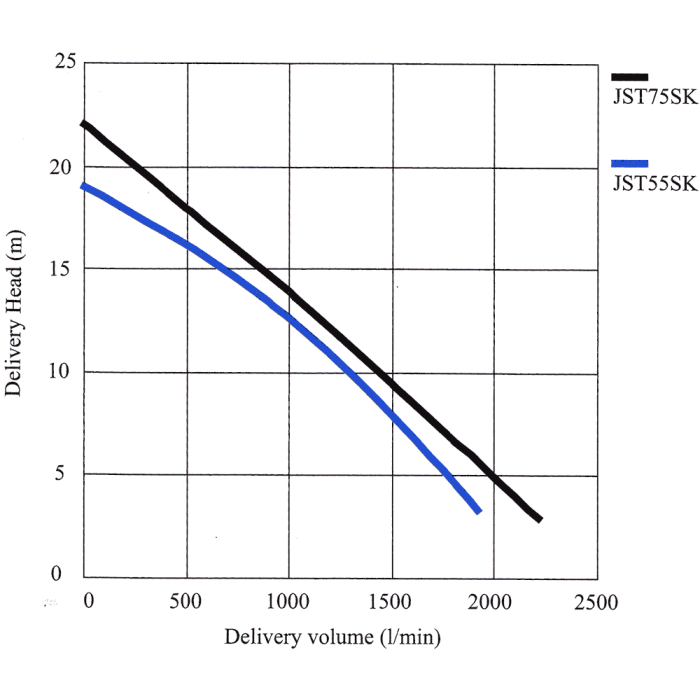

  • Maximum Head: up to 24m
  • Maximum Flow: up to 2200 litres/min
  • 2" (JST-8 SK) or 3" (JST-15/22 SK) or 4" (JST-37/55/75 SK) outlet
  • 415V

Applications

  • Sewage waste drainage
  • Sewage cutter impeller allows soft solids to be passed through the pump body to waste
More Information
SKU 012-796
Weight 86.0 Kg
Dimensions 730 x 420 x 740 mm
Manufacturers JS Pumps
Manufacturers Warranty 1 Year
Material Stainless Steel
Connection Type 4 Inch BSP Female
Voltage 415V 3Ph 50Hz
Max Flow 2200 l/min
Max Head 22 Metres
Full Load Current (FLC) 15.2A
Motor Size 7.5kW
Cable Length 10 Metres
