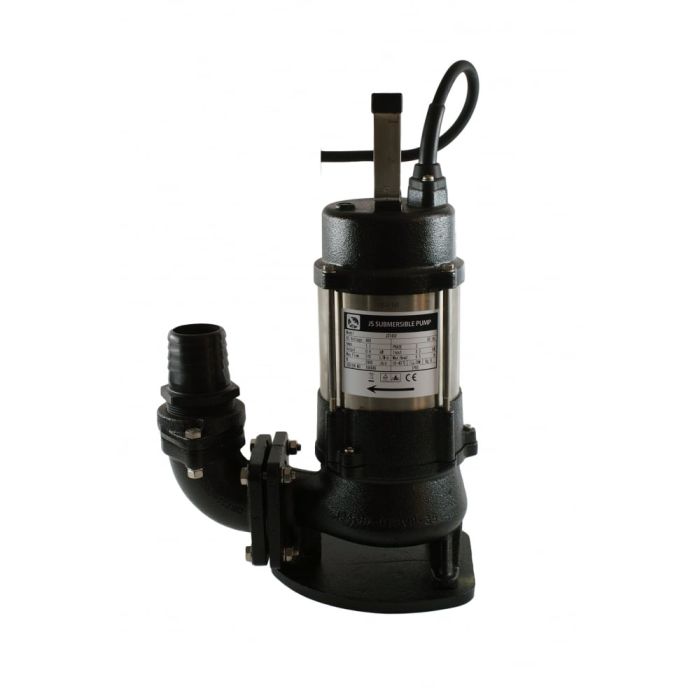

JST-15 SV - 3" Submersible Sewage & Waste Water Pump Without Float Switch 415v
* Available where Guaranteed Stock Icon Appears Below
JST-15 SV - 3" Submersible Sewage & Waste Water Pump Without Float Switch 415v - 012-774
JST SV submersible sewage vortex pumps allow soft solids to pass through the pump body to waste. They feature a cast iron pump body, impeller, lower motor bearing/seal housing and motor top cover, while the shaft and motor casing are manufactured from stainless steel. Twin mechanical seals, carbon ceramic and silicon carbide in a lubricated chamber.
Supplied complete with 10 metres of power cable.
Hose tails aren't supplied with the following versions:-
JST-22 (2 and 4 Pole), JST-37, JST-55, JST-75
Solids Handling
- 36mm JST-4 SV, JST-8 SV
- 46mm JST 15 SV
- 65mm JST-22 SV (2 and 4 pole)
- 57mm JST-37 SV
- 80mm JST-55 SV, JST-75 SV
Features
- Maximum Head: up to 17m
- Maximum Flow: up to 3000 litres/min
- 415V 3-Phase
- Vortex Impeller
Applications
- Sewage
- Waste Drainage Applications
| SKU | 012-774 |
|---|---|
| Weight | 36.6 Kg |
| Dimensions | 515 x 170 x 395 mm |
| Manufacturers | JS Pumps |
| Manufacturers Warranty | 1 Year |
| Material | Stainless Steel |
| Connection Type | 3 Inch BSP Female |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 700 l/min |
| Max Head | 10 Metres |
| Full Load Current (FLC) | 3.2A |
| Motor Size | 1.5kW |
| Cable Length | 10 Metres |
