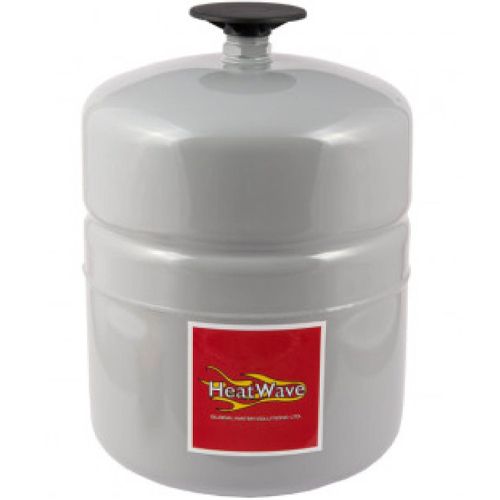

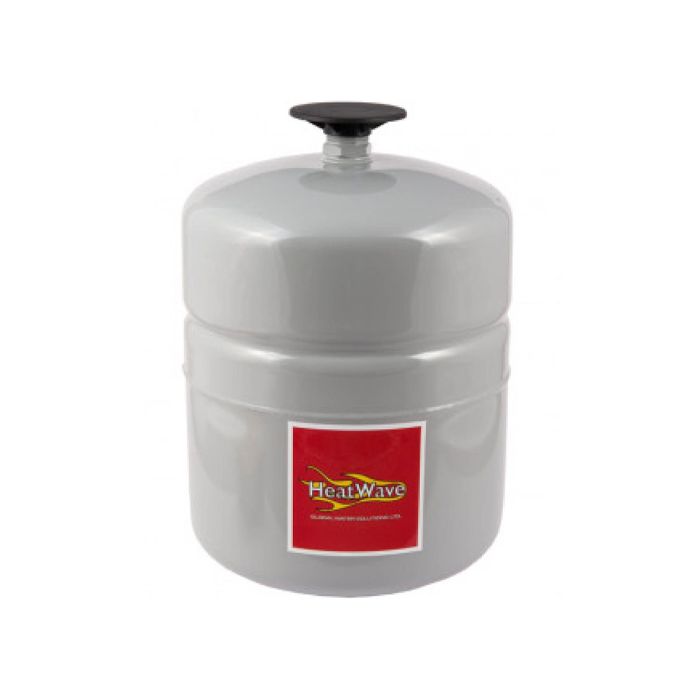

GWS Heatwave 24L Non-Potable Hydronic Heating Vertical Expansion Vessel

GWS Heatwave 24L Non-Potable Hydronic Heating Vertical Expansion Vessel - HWB-24LX

HeatWave tanks are built to the same stringent standards as the PressureWave and Challenger tanks.

Incorporating a welded hex nut connection, HeatWave tanks are easy to install. The air chamber is sealed with a brass air valve and O-ring sealed air valve cap providing many years of leak-free and service-free life. Its dual layer polyurethane paint finish will withstand the harshest indoor and outdoor climates throughout the world. HeatWave tanks are quality tested at several stages on the production line to ensure the structural integrity of every tank.

HeatWave inline models are designed to be installed on system piping and supported by the GWS universal wall-mounting bracket. Freestanding vertical and horizontal models are constructed with a rigid base designed to support the weight of the tank during operation.

The expansion tank, pipes, and its connection, if installed incorrectly, could leak water. The expansion tank must be connected to the closed loop circuit and should only be used in close loop circuits with correct levels of corrosion inhibitor. Do not connect in an open-loop circuit or where fresh water can be used as a regular top up.

HeatWave tanks are intended for use in closed-loop systems and should never be installed in open loop or potable water systems. Failure to comply could result in tank failure and subsequent property damage.

Corrosion inhibitors such as propylene glycol can be used in mixture concentrations up to 50% (ethylene glycols should be avoided at all cost).

Features:

• High-grade butyl diaphragm
• Dual layer polyurethane paint finish
• Chromed steel connection
• Leak-free O-ring sealed air valve
• Comprehensive testing
