Grundfos UPSD 50-60/2 (280) Twin Head Commercial Circulator 240V replaced with MAGNA1 D 50-60F (240) plus Spacer Kit

SKU
96408919/ 99221339
MRRP £2,814.00 + VAT Our price £1,678.00 (+ VAT) Incl. VAT: £2,013.60
Order within
Hours
Mins
Secs
for next day delivery i

Grundfos UPSD 50-60/2 (280) Twin Head 240V Commercial Circulator pump.

Due to new European Legislation brought into force in January 2013, the UPSD 50-60/2 (280) is no longer manufactured.  On purchase of this pump, when old stock has been depleted we will automatically upgrade your order to the new EUP ready Energy Efficient MAGNA1 D 50-60F (240) at no extra cost.

Please note, this pump requires a spacer kit which will be provided with the pump at no extra cost.

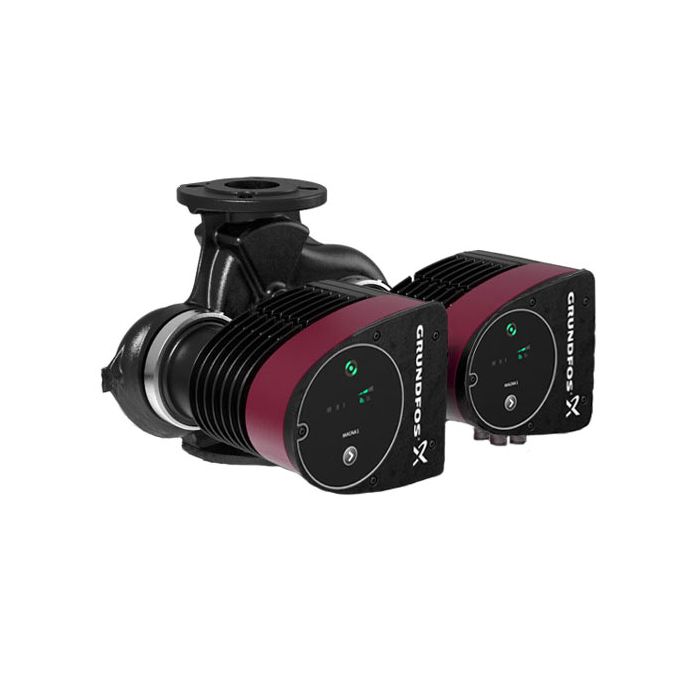

The Grundfos MAGNA1 D 50-60F (240) 'A' Rated/EuP Ready variable speed circulator with easy selection of pump setting, no maintenance requirements and extremely low life cycle cost.  The MAGNA1 circulator pumps are designed for circulating liquids in heating systems with variable flows and also for domestic hot-water systems.

Applications include:

  • Heating systems
  • Main pump
  • Mixing loops
  • Heating and Air-conditioning

The pump is also suitable for systems with hot-water priority as an external signal can immediately force the pump to operate according to the max. curve, for  example in solar-heating systems.

Benefits:

  • Safe selection
  • Simple installation
  • Low energy consumption (MAGNA1 pumps comply with the EuP requirements)
  • Nine light fields for indication of pump setting.
  • Three proportional-pressure curves, three constant-pressure curves and three fixed-speed curves are available
  • Low noise level
  • Maintenance free and long life

Liquid:

  • Pumped liquid: Water
  • Liquid temperature range: -10 .. 110 °C

MAGNA1 D 50-60F has 240mm port-to-port dimensions and 50mm flanged connections.

More Information
SKU 96408919/ 99221339
Manufacturers Grundfos
Manufacturers Warranty 2 Years
Weight 42.0 Kg
Dimensions 240mm (h) x 515mm (w) x 379mm (d)
Motor Size 20.91-253W
Full Load Current (FLC) 0.22-1.15A
Voltage 240V 1Ph 50Hz
Max Flow 32m3/hr
Max Head 6m
Material Cast Iron
Old Sku 96408919
