Grundfos UPS4 GO 25-65 (130) Domestic Heating Circulator 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

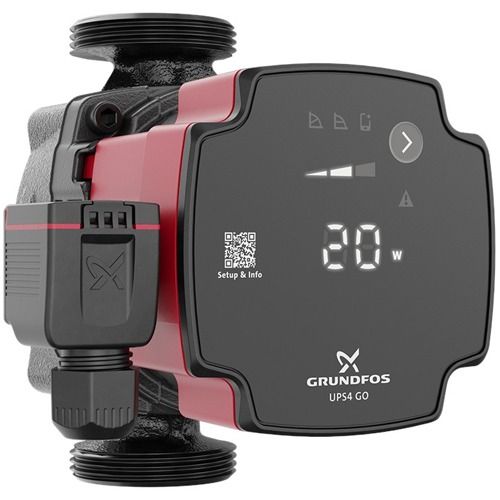

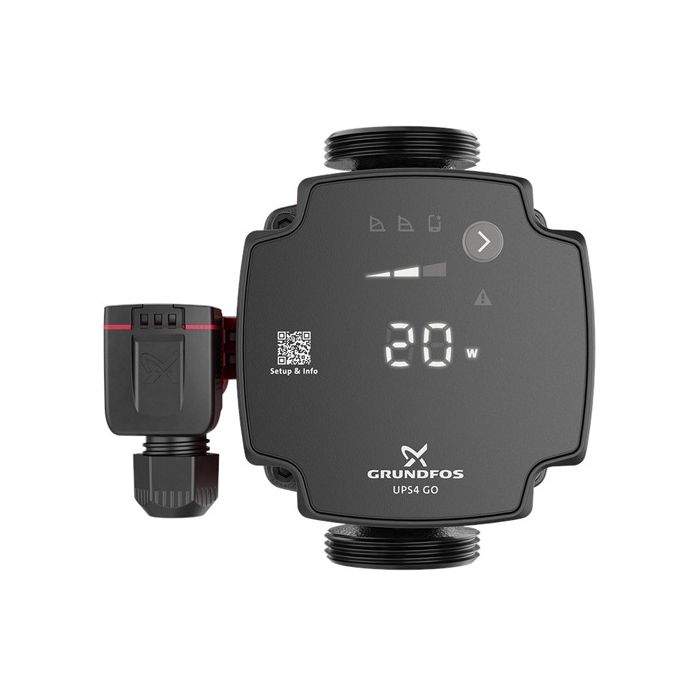

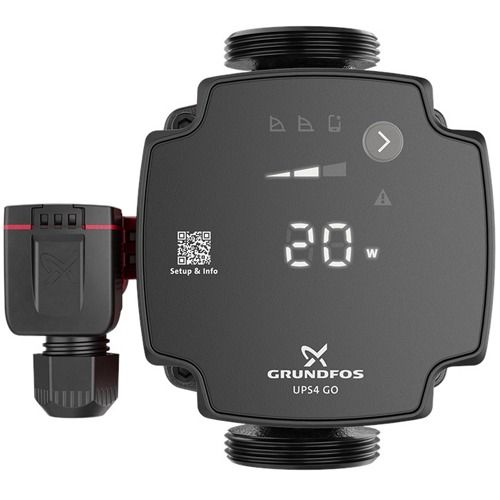

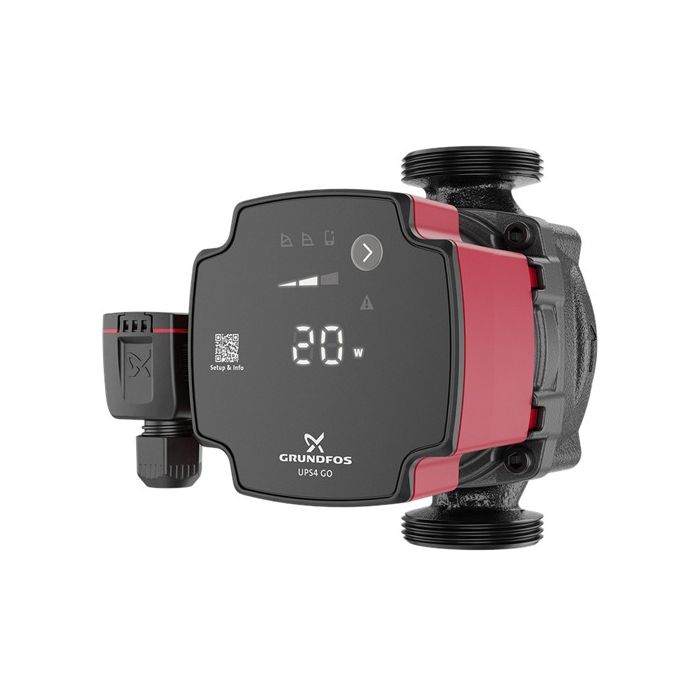

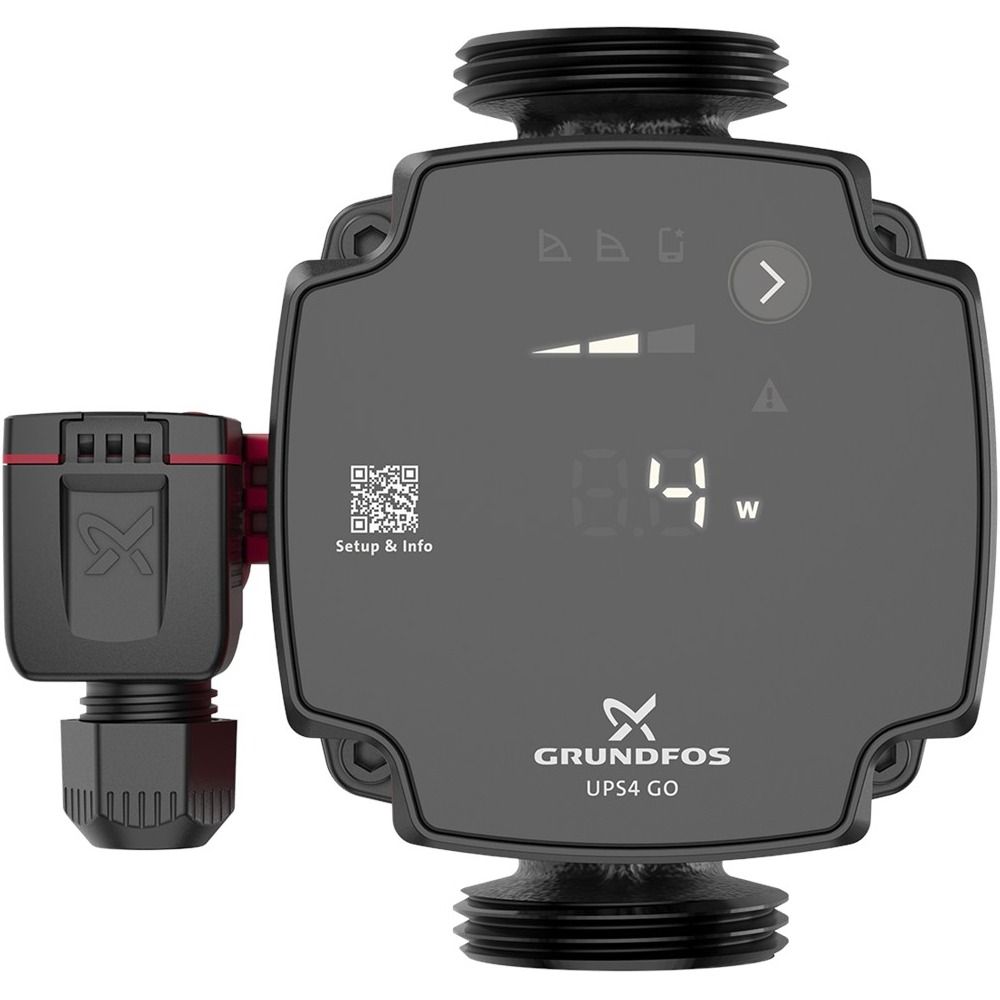

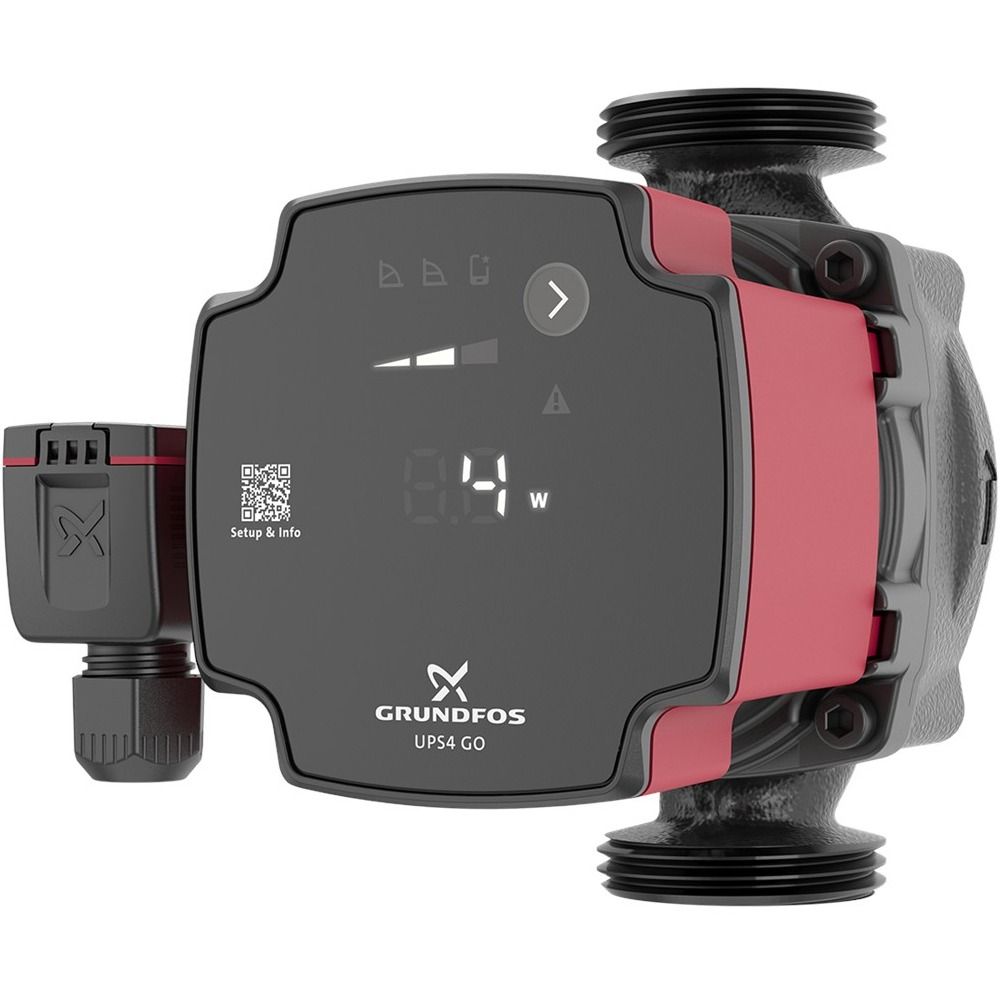

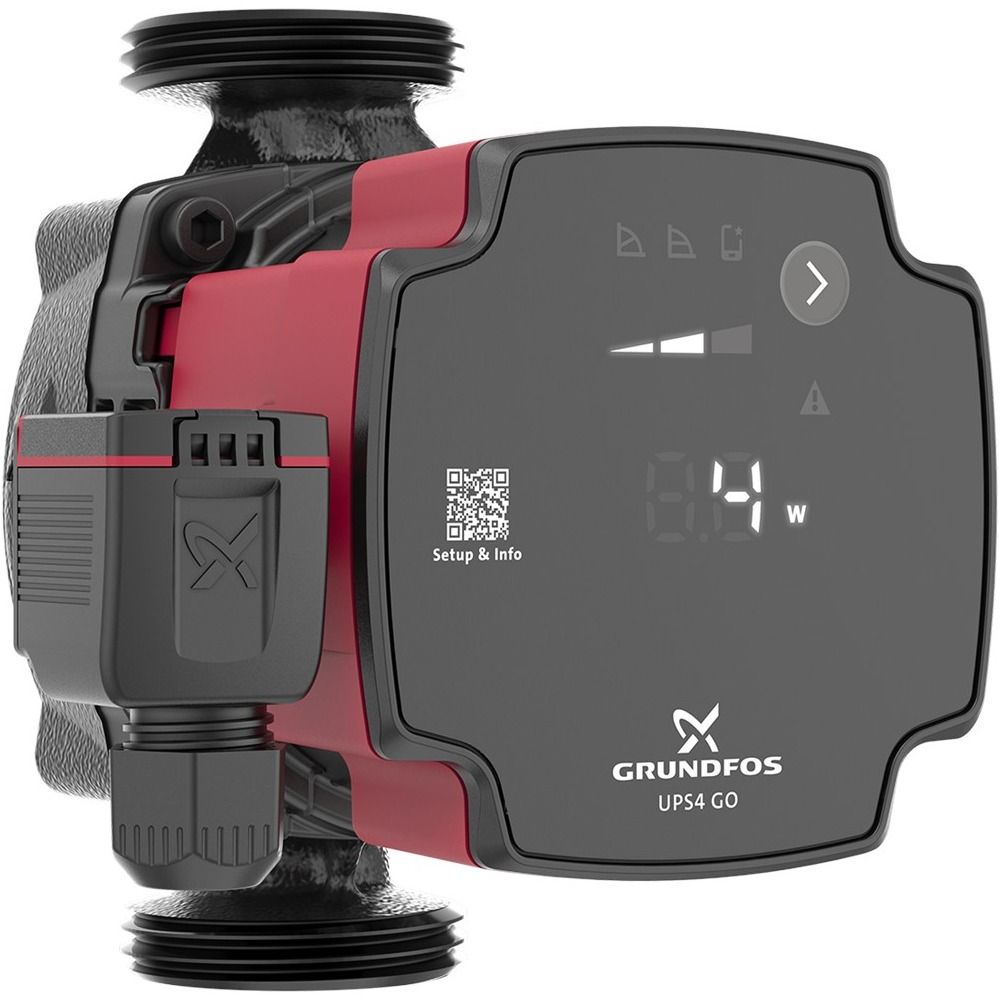

Grundfos UPS4 GO 25-65 (130) Domestic Heating Circulator 240v - 93074168
The Grundfos UPS4 GO 25-65 130 is a high-efficiency circulator pump designed for use in domestic heating and air conditoning systems. Fitted with an electronically commutated motor, this advanced pump offers intelligent control with three selectable modes—constant pressure, proportional pressure, and constant curve—each with three speed settings, making it easy to adapt to a range of system requirements.
Engineered for quiet, reliable performance, the UPS4 GO includes automatic self-venting and dry-running protection. A robust startup function helps reduce the risk of blockages from debris such as dirt, limescale, or magnetite. The durable ceramic shaft and bearings minimise wear over time, enhancing both lifespan and efficiency.
With full compatibility with the Grundfos GO app, installers can use the scan or search functions to identify replacement settings quickly and accurately. The pump interface also displays error codes, streamlining troubleshooting and maintenance.
Whether replacing an integrated UPS circulator or a standalone pump, the UPS4 GO provides a fast, efficient, and installer-friendly solution, backed by a comprehensive 5-year guarantee.
Features:
- Supports replacement of integrated UPS and standalone pumps
- Ceramic shaft and bearings for improved lifespan
- Toolless installer plug for straightforward connection
- Error code display on pump interface for fast fault diagnosis
- Compatible with the Grundfos GO app for simple setup and replacement
- Robust startup function to help prevent blockages
- Automatic self-venting and dry-running protection
- Three intelligent control modes: constant pressure, proportional pressure, and constant curve
- High-efficiency circulator with electronically commutated motor

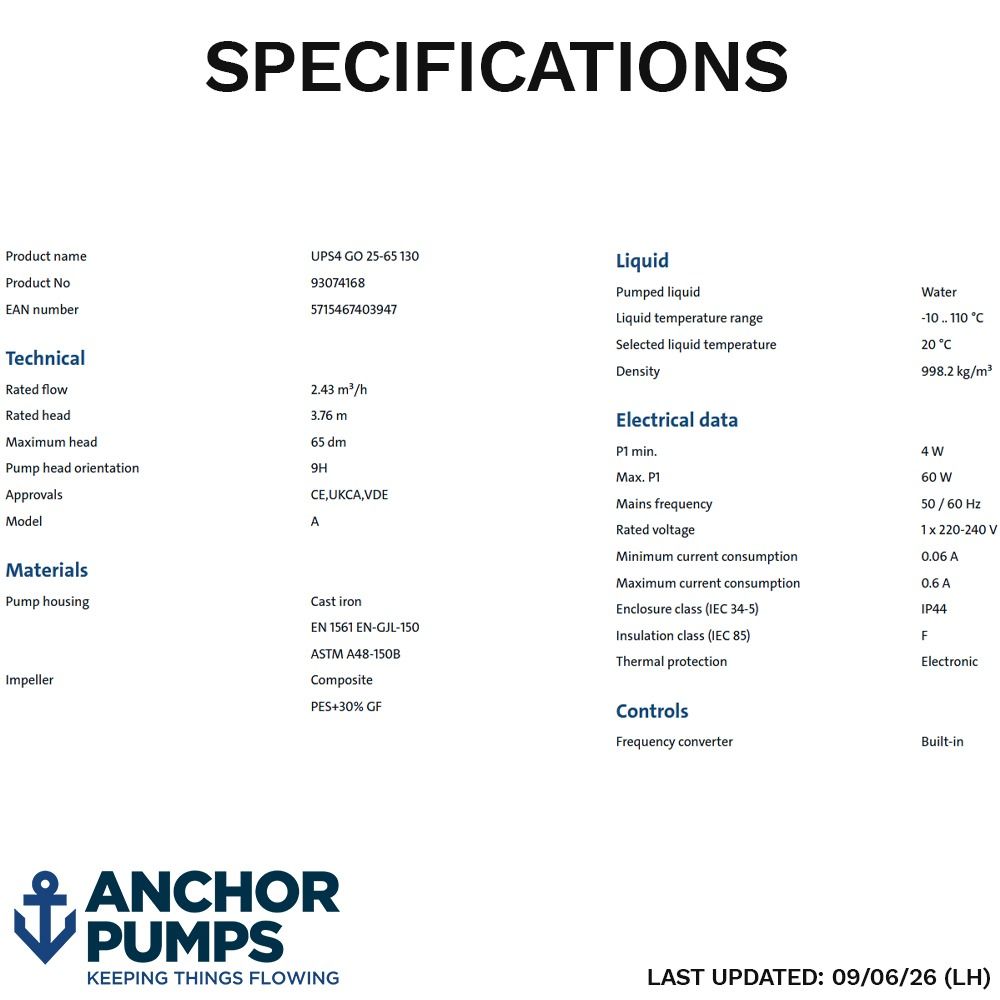

| SKU | 93074168 |
|---|---|
| Manufacturers | Grundfos |
| Manufacturers Warranty | 5 Years |
| GTIN | 5715467403947 |
| Weight | 2.0 Kg |

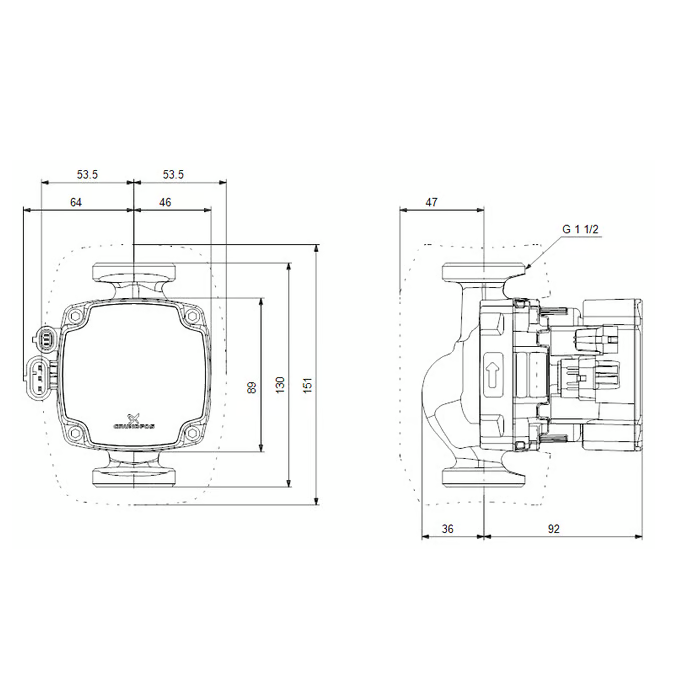

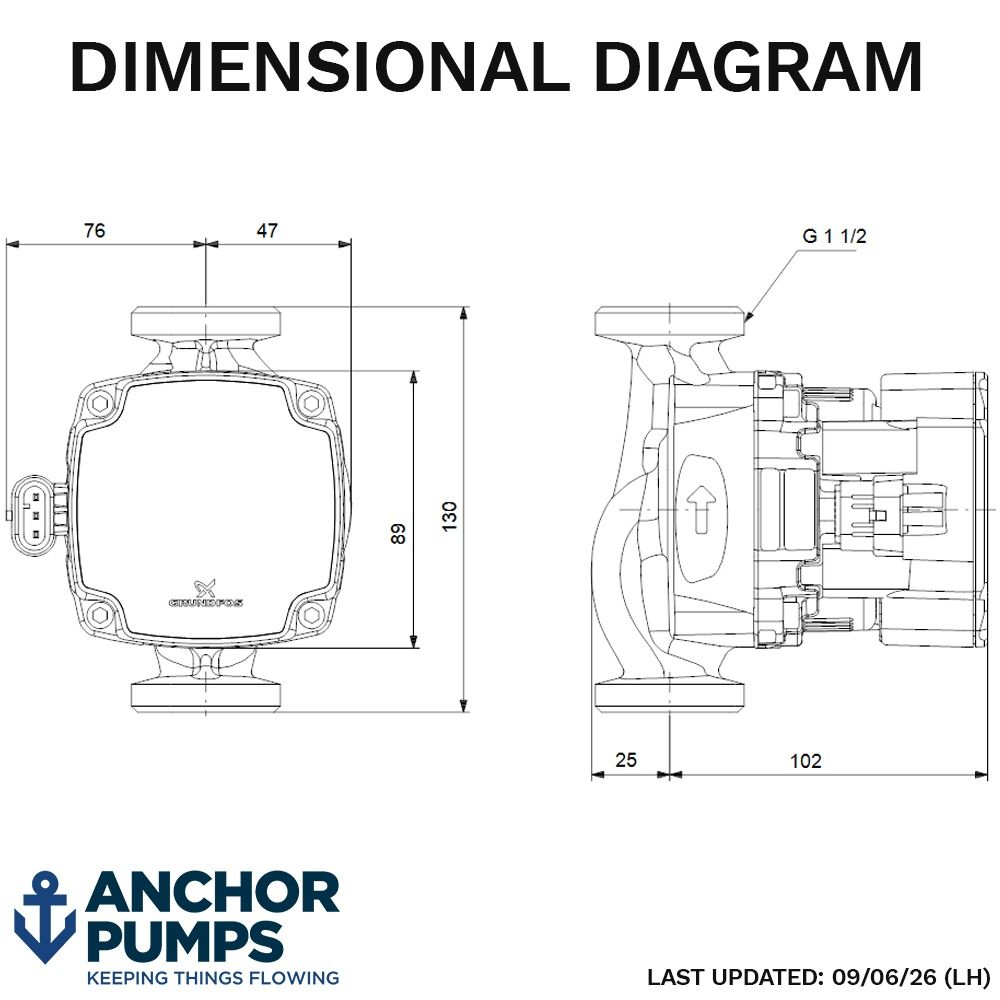

| Dimensions | 166mm (h) x 128mm (l) x 130mm (w) |
| Connection Type | 1 1/2 Inch BSP |
| Voltage | 240V 1Ph 50Hz |

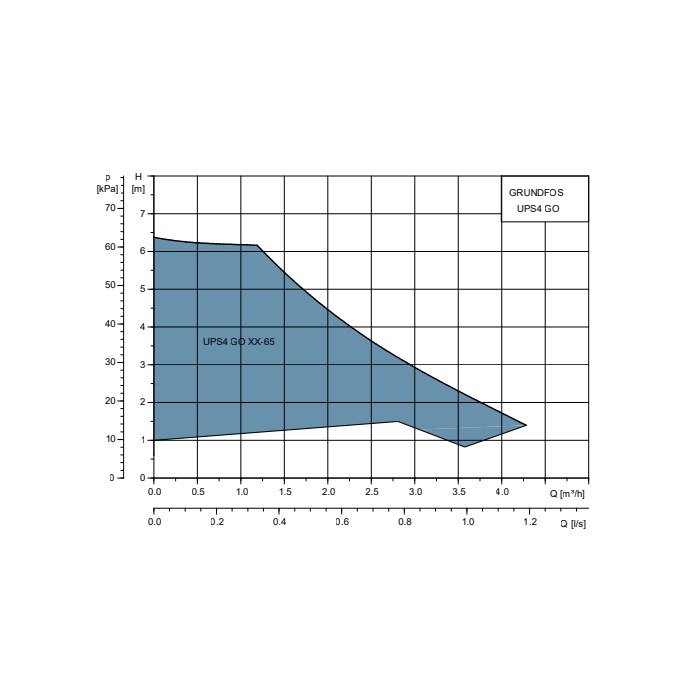

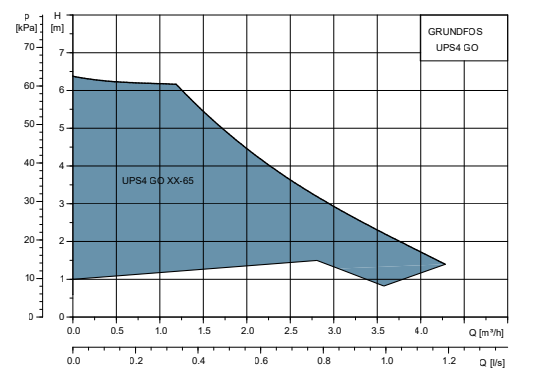

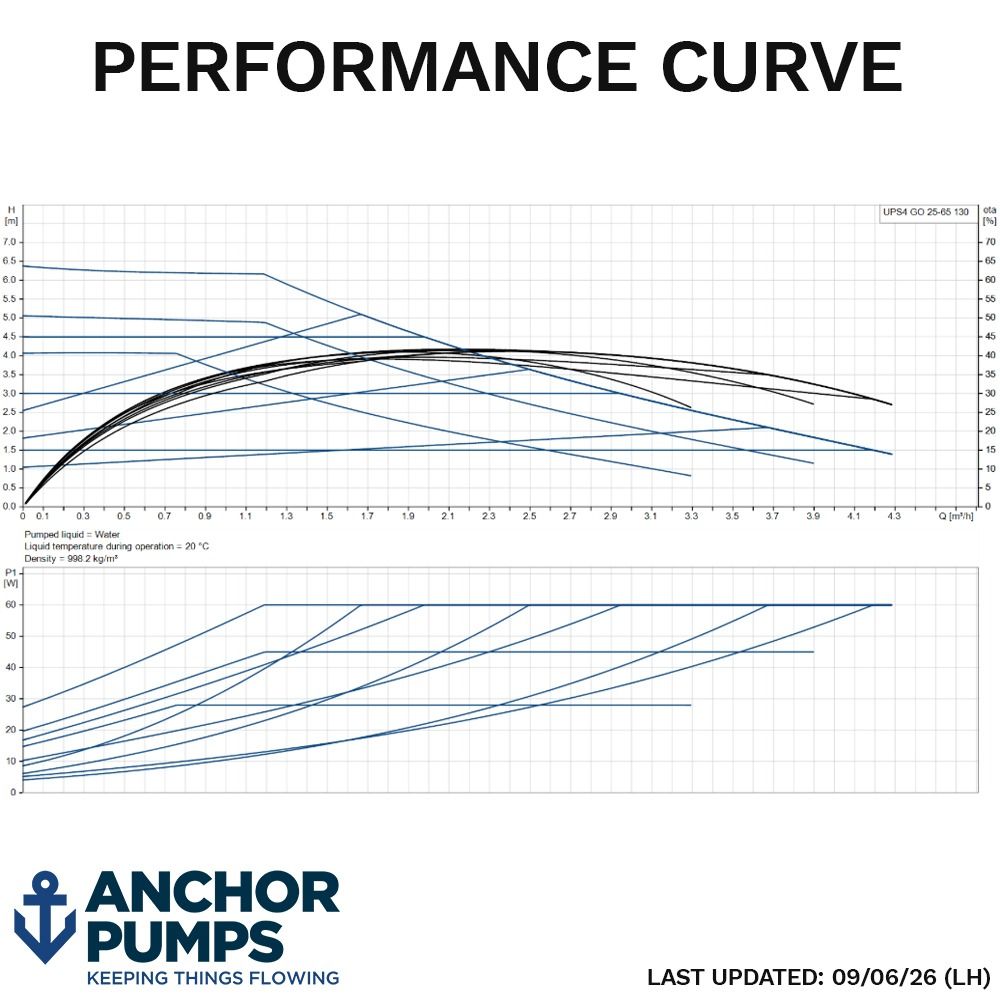

| Max Flow | 4.5m3/hr |
| Max Head | 6.5m |
| Max Pressure | 10 Bar |
| Max Temperature | 110 °C |
| Material | Cast Iron |
| Impeller Material | Composite |
