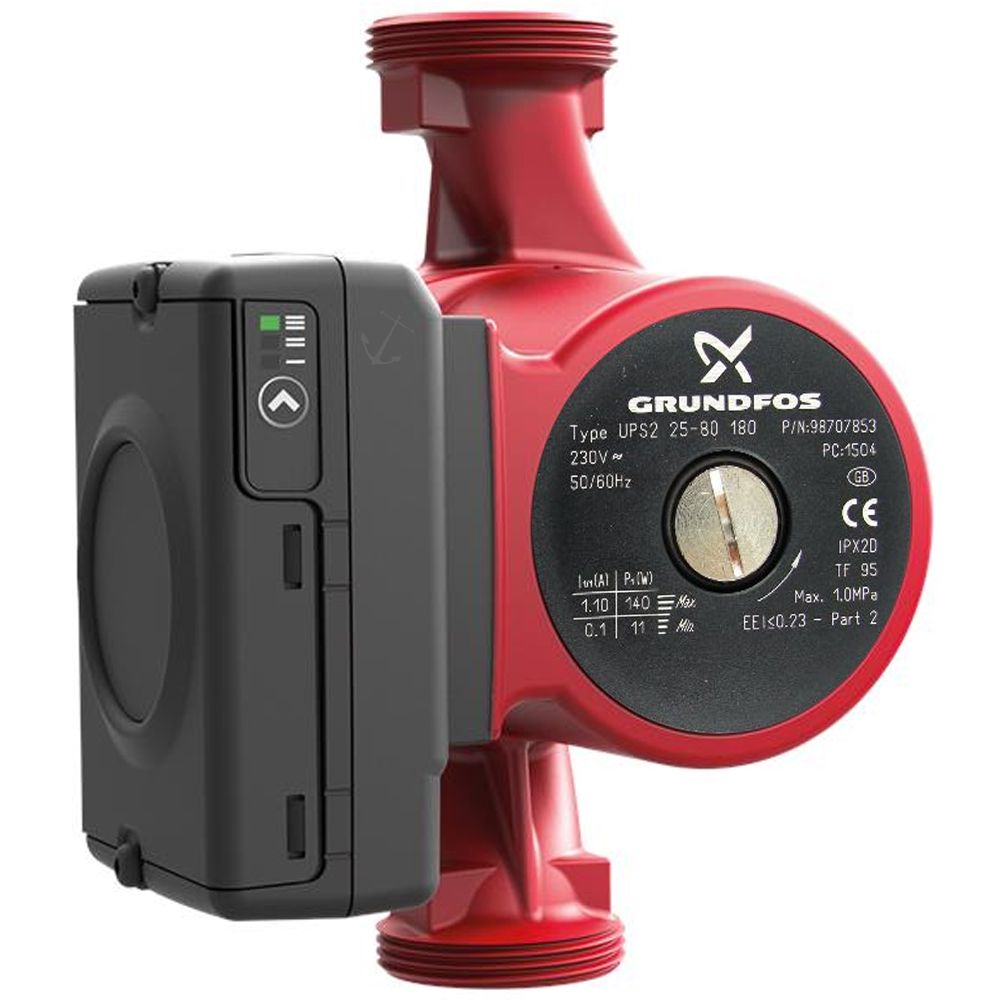

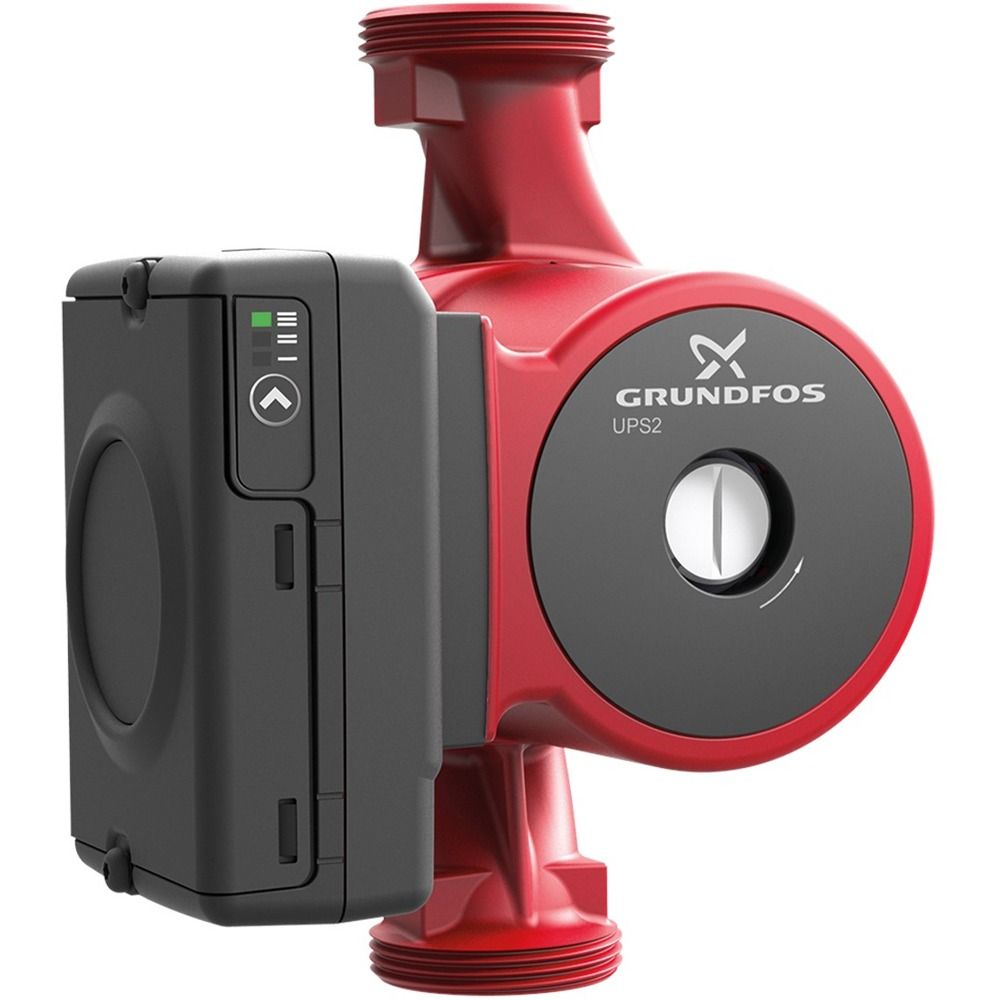

Grundfos UPS2 25-80 (180) A+ Eff. Domestic, Light Commercial Heating Circulator 240V (replaces UPS 25-55 and UPS 25-80)

MRRP £532.00 + VAT Our price £280.00 (+ VAT) Incl. VAT: £336.00
Order within
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

This pump directly replaces the UPS 25-55 and UPS 25-80 directly.  No alteration to pipework or fittings is necessary.

The new Grundfos UPS2 25-80 (180) is a high-efficiency circulator pump with permanent-magnet motor (ECM technology) and continuously variable speed control for circulation of clean heating water.

The UPS2 25-80 (180) is the ideal replacement for the UPS 25-55 and 25-80 in domestic heating systems, it comes complete with modern motor technology and electronic control which enables it to exceed new EuP/ErP standards.  It is also available as a complete pump or as a pump head only.

Features and benefits

  • integrated differential-pressure control enabling adjustment of pump performance to the actual system requirement
  • motor based on permanent-magnet/compact rotor technology.
  • The pumps are energy-optimised and comply with the requirements of the EuP directive.
  • The installation of a UPS2 will reduce power consumption considerably, reduce noise from thermostatic valves and similar fittings and improve the control of the system.


The UPS2 range offers a host of advantages:

  • Energy savings
  • High-efficient permanent-magnet motors.
  • Flexibility
  • Suitable for installation in existing systems.
  • Comfort
  • Low-noise operation.
  • Safety
  • Built-in electrical and thermal protection of the pump.
  • User friendliness
  • Simple setting and operation.

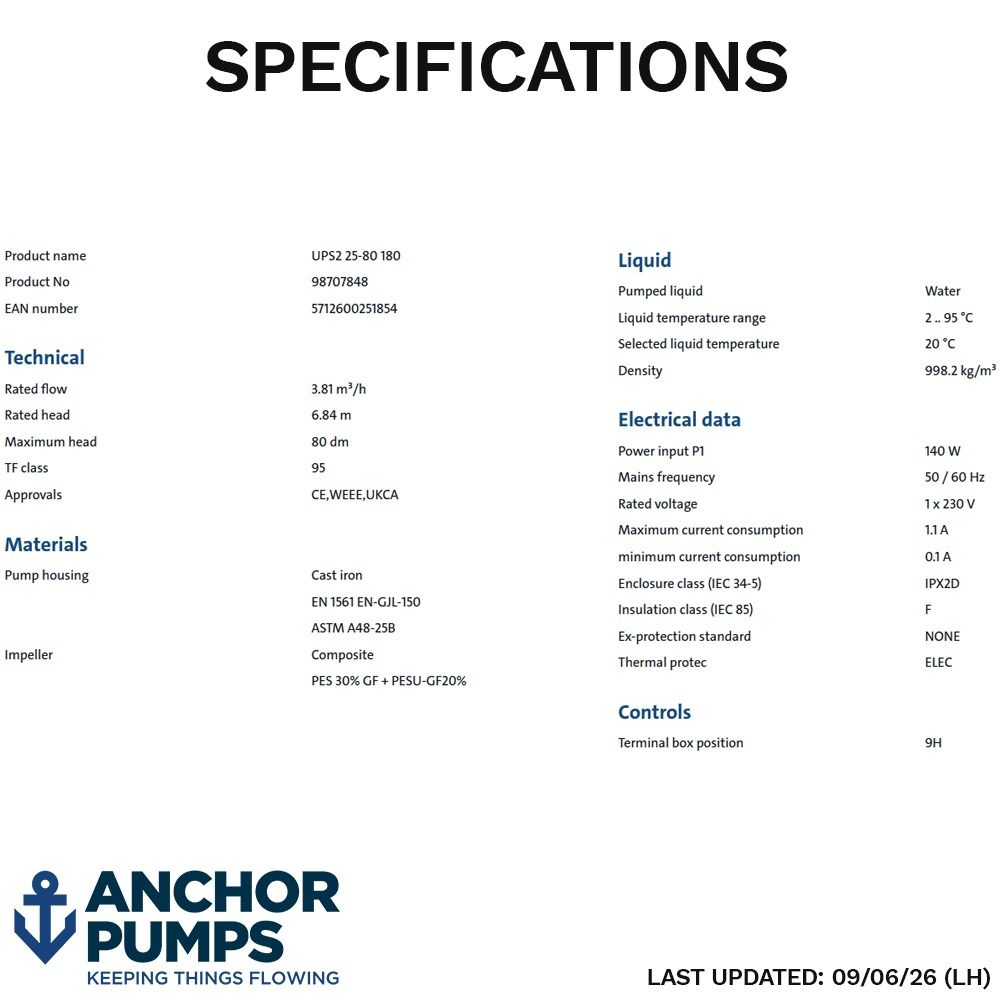

More Information
SKU 98707848
Manufacturers Grundfos
Manufacturers Warranty 5 Years
GTIN 5712600251854
Weight 2.9 Kg

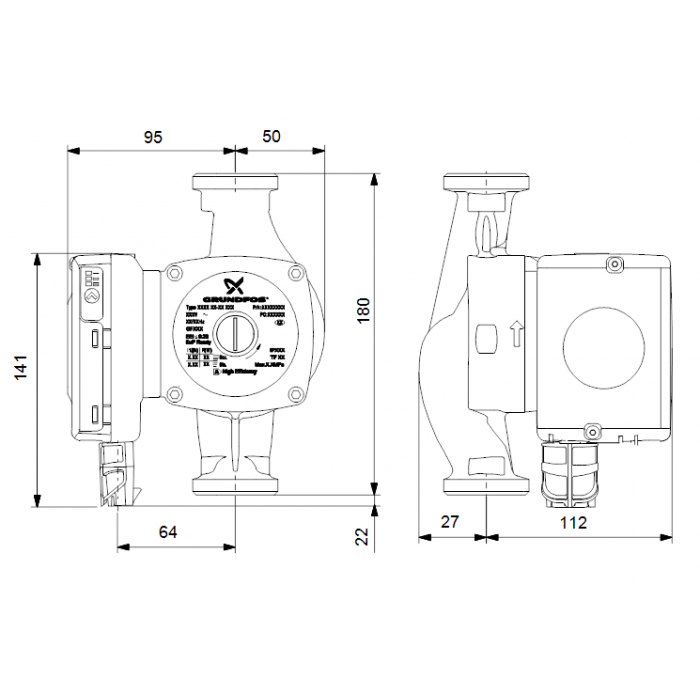

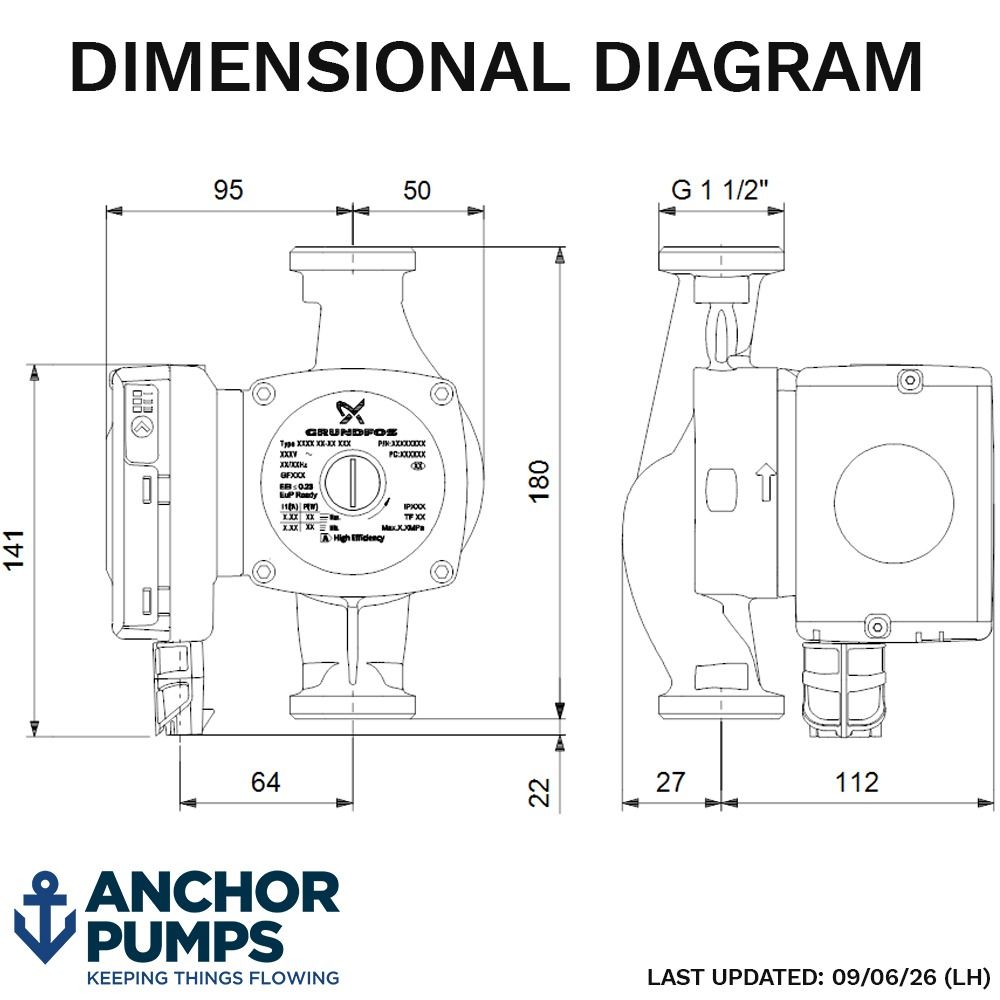

Dimensions 180mm (h) x 145mm (w) x 139mm (d)
Connection Type 1 1/2 Inch BSP
Inlet Dimension 1 1/2" bspm
Discharge Dimension 1 1/2" bspm
Motor Size 11-140W
Full Load Current (FLC) 0.01-1.1 A
Voltage 240V 1Ph 50Hz

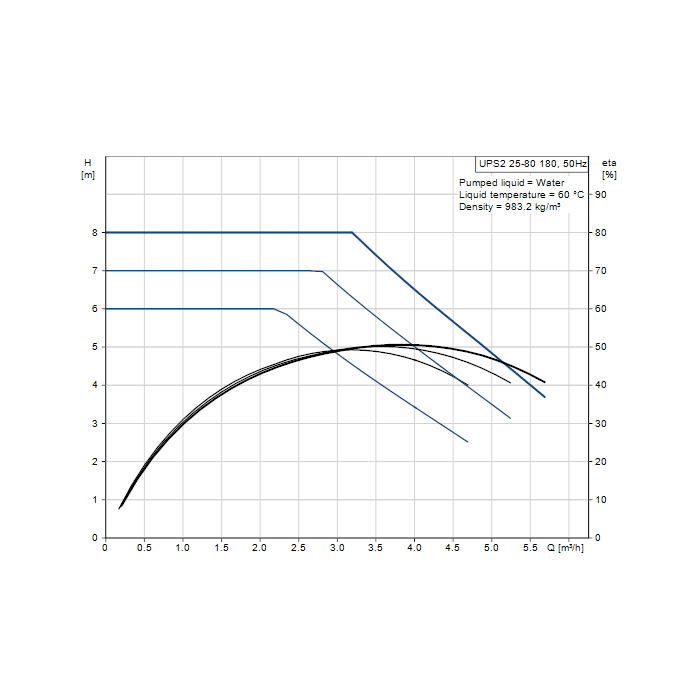

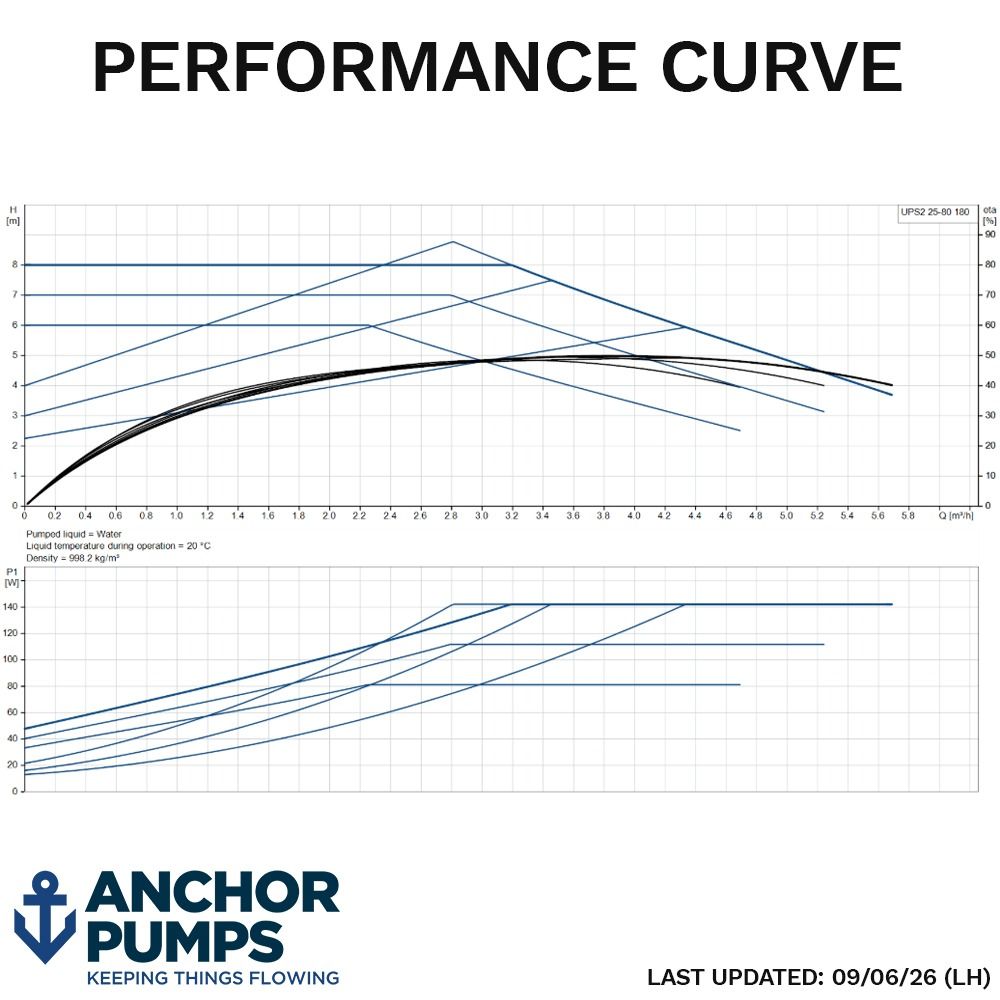

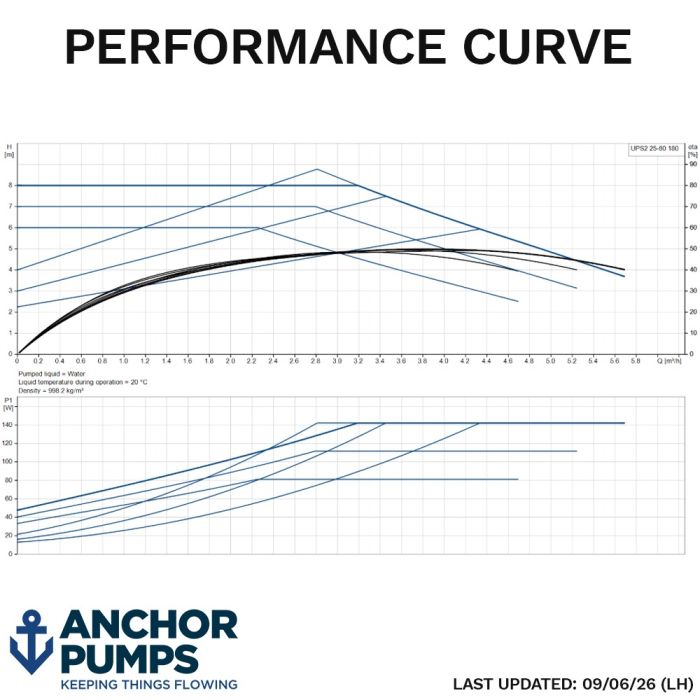

Max Flow 5.7m3/hr
Max Head 8m
Material Cast Iron
